Discovery STM32F303

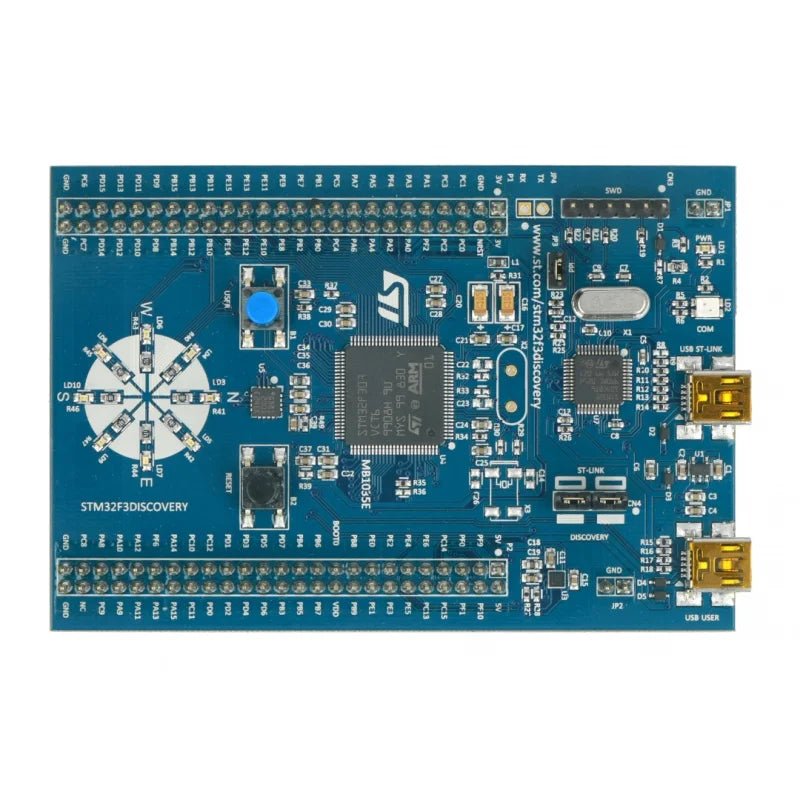

🧠 STM32F3 Discovery Board – Mixed-Signal Powerhouse for Control & Sensing Applications
The STM32F3 Discovery Board is based on the STM32F303VCT6 microcontroller, combining a powerful ARM Cortex-M4 core with FPU and rich mixed-signal features. Ideal for applications needing both analog and digital processing like motor control, sensor fusion, and industrial systems.

🔧 Key Features
🔹 Microcontroller: STM32F303VCT6 (ARM Cortex-M4 @72 MHz)
📦 Flash Memory: 256 KB
💾 SRAM: 48 KB
🧮 FPU: Floating Point Unit for DSP & control algorithms
🎯 Mixed-Signal Support:
• 4× 12-bit ADC
• 2× 12-bit DAC channels
• High-speed comparators
📡 Communication: USB, UART, SPI, I2C, CAN
🔌 Onboard Debugger: ST-LINK/V2
🔋 Power Supply: USB or external 5V

🧰 Package Includes
✅ 1× STM32F3 Discovery Board
📄 Onboard accelerometer (MEMS), LEDs, buttons
🧰 Compatible with STM32CubeIDE, Keil, IAR, PlatformIO

🧠 Perfect For
🌀 Sensor fusion (IMU, gyros, compasses)
🛞 Motor control (FOC, BLDC, PID)
📊 Real-time data acquisition & DSP
📦 Industrial & automation systems
🎓 University research & control system learning

🛠️ How It Works
1️⃣ Connect via USB (built-in ST-LINK)
2️⃣ Develop & flash firmware using STM32CubeIDE or Keil
3️⃣ Use analog + digital peripherals for embedded control
📲 Read sensors, control motors, and process signals on one board

💡 Pro Tip: Ideal for control engineering, robotics, and embedded signal processing—combine with current sensors, encoders, or IMUs for complete industrial setups.
