1200W DC-DC Boost Converter - High Power Step-Up Voltage Regulator Module

1200W DC-DC Boost Converter Module

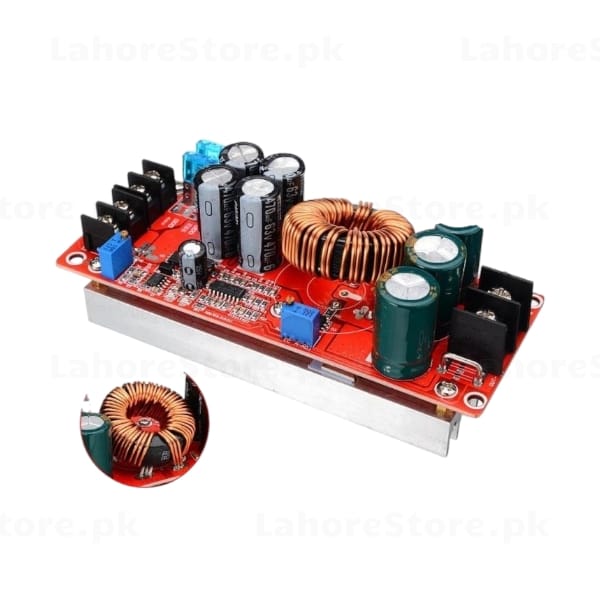

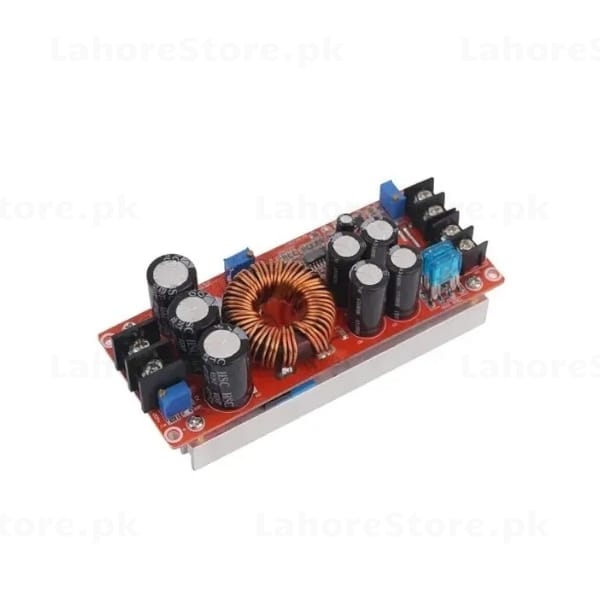

A heavy-duty step-up (boost) DC-DC converter capable of handling up to 1200W of power. Built with a large toroidal inductor, multiple high-capacity capacitors, and an aluminum heatsink for thermal management, this module is ideal for high-current power supply applications, solar charging, and EV projects.

Key Features

• Max Power: 1200W
• Input Voltage: 8V – 60V DC
• Output Voltage: 12V – 80V DC (adjustable)
• Max Output Current: 20A
• Large toroidal inductor for low EMI and high efficiency
• Built-in aluminum heatsink for passive cooling
• Dual blue potentiometers for voltage and current adjustment
• Screw terminal connectors for secure wiring
• Overcurrent and overvoltage protection

Specifications

• Input: 8V – 60V DC
• Output: 12V – 80V DC (adjustable)
• Max Power: 1200W
• Max Current: 20A
• Efficiency: up to 95%

Ideal For

• Solar panel MPPT charging systems
• Electric vehicle (EV) power conversion
• High-power DIY lab power supplies
• Industrial automation and robotics
