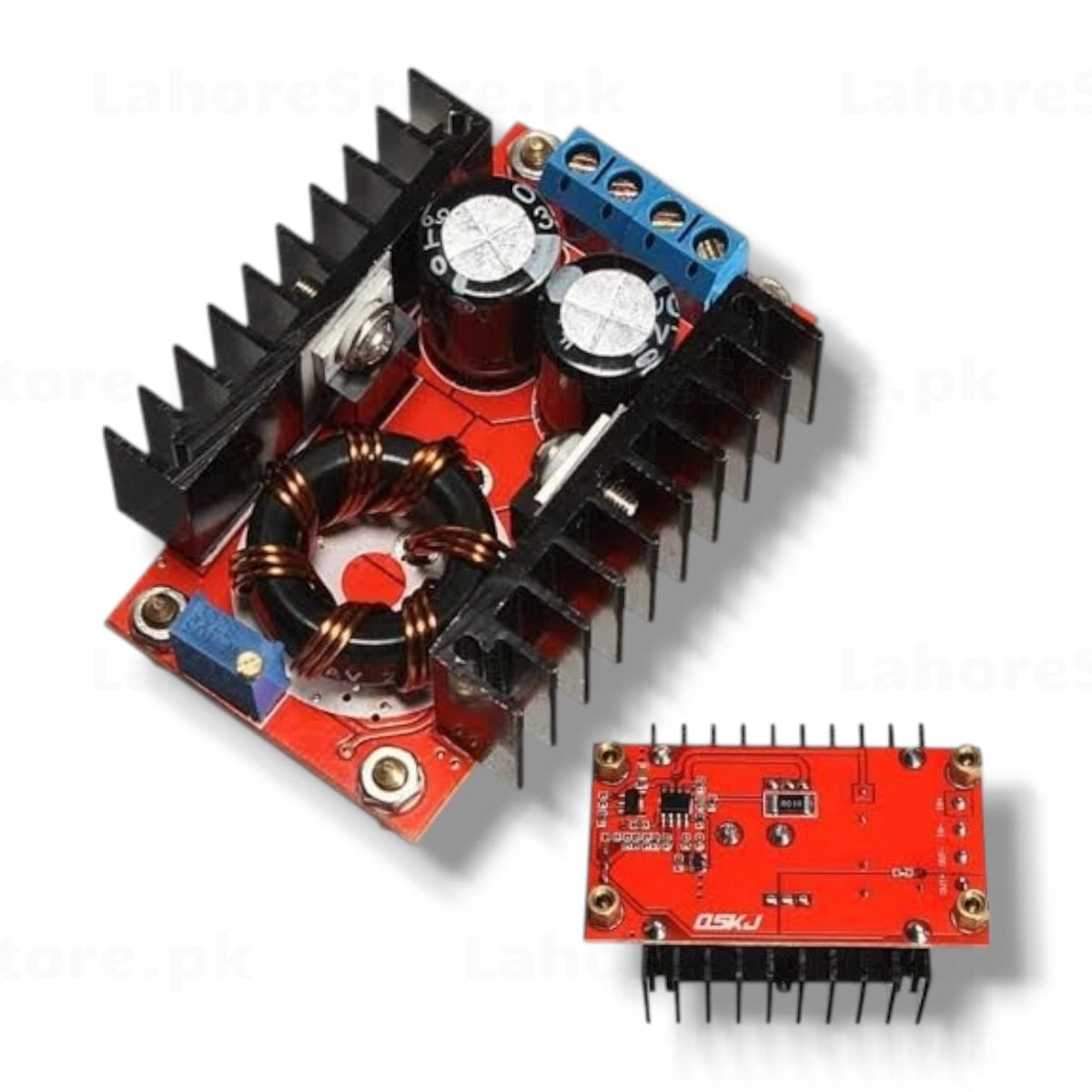

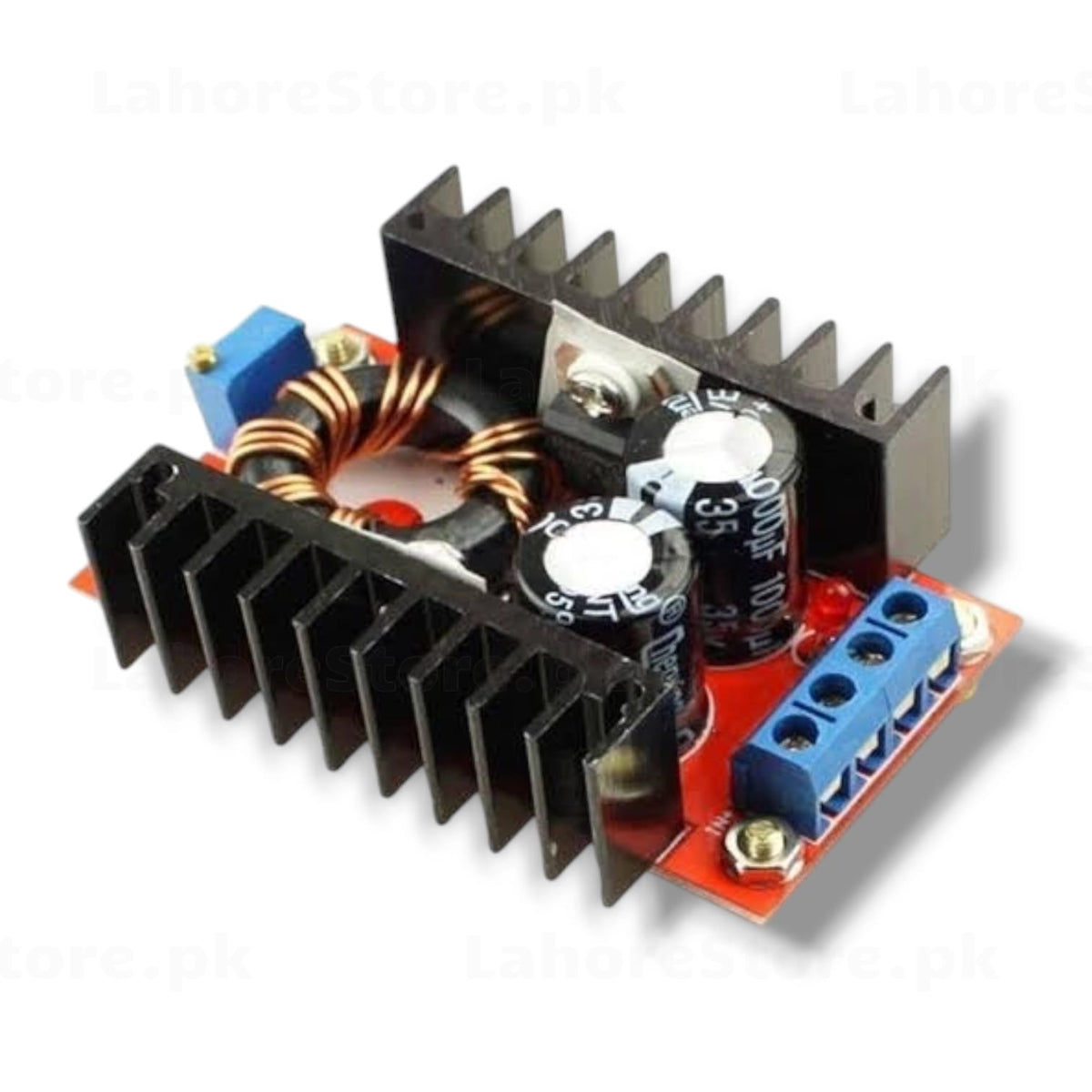

150W - DC-DC Boost Converter Module

This 150W DC-DC boost converter module is designed for projects that require a DC output voltage higher than the input supply. Its onboard adjustment trimmer lets you set the output for a suitable load, while two finned heatsinks help dissipate heat during operation.

Key Features

• 150W rated DC-to-DC step-up converter module.
• Onboard trimmer for output-voltage adjustment.
• Two finned heatsinks for heat dissipation.
• Large toroidal inductor and onboard filter capacitors.
• Four-position screw-terminal block for input and output wiring.
• Mounting holes for installation in a suitable project enclosure.

Applications

Suitable for DC power experiments, electronics prototypes and projects needing a higher DC supply voltage. Select a source, wiring and load appropriate for the module's verified operating limits.

Important Setup Information

The 150W rating is not a guarantee of continuous output under every condition. Available output depends on input voltage, current, cooling and load. Exact input/output voltage ranges and current limits are not confirmed from these photos, so check the supplier specifications before powering the board. Measure and adjust the output before connecting your load, verify terminal polarity and provide adequate ventilation. This module steps voltage up; it is not a step-down converter or an AC mains power supply.

Package Contents

1 x 150W DC-DC Boost Converter Module with fitted heatsinks, as pictured.
