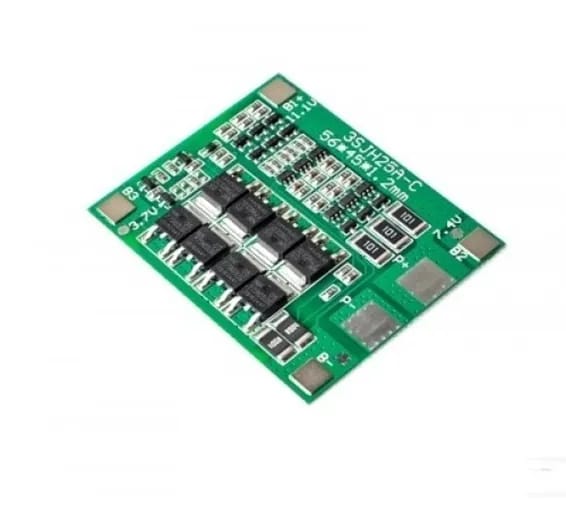

3S BMS 25A Battery Protection Board (3S-1H25A-C)

3S BMS 25A Battery Protection Board (3S-1H25A-C)

Rs.330
Rs.330
Sale Sold out
Shipping calculated at checkout.
  • The 3S BMS 25A (3S-1H25A-C) is a high-quality Battery Management System (BMS) designed for 3-cell series lithium-ion or Li-Po battery packs. It provides overcharge, over-discharge, overcurrent, and short-circuit protection to ensure safe and reliable battery operation.
  • Key Features
  • Cell configuration: 3S (3 cells in series — 11.1V nominal)
  • Continuous discharge current: 25A
  • Overcharge protection voltage: 4.25V ± 0.05V per cell
  • Over-discharge protection voltage: 2.5V ± 0.1V per cell
  • Overcurrent & short-circuit protection
  • Balance charging support
  • PCB size: 56mm × 51mm × 1.2mm
  • Compact SMD design with MOSFETs for efficient switching
  • Applications
  • 3S Li-ion / Li-Po battery packs
  • DIY power banks and battery systems
  • Electric bikes, scooters, and RC vehicles
  • Solar energy storage systems
  • Robotics and automation projects
  • Package Includes
  • 1 × 3S 25A BMS Protection Board
