400-Point Solderless Breadboard (Half Size)

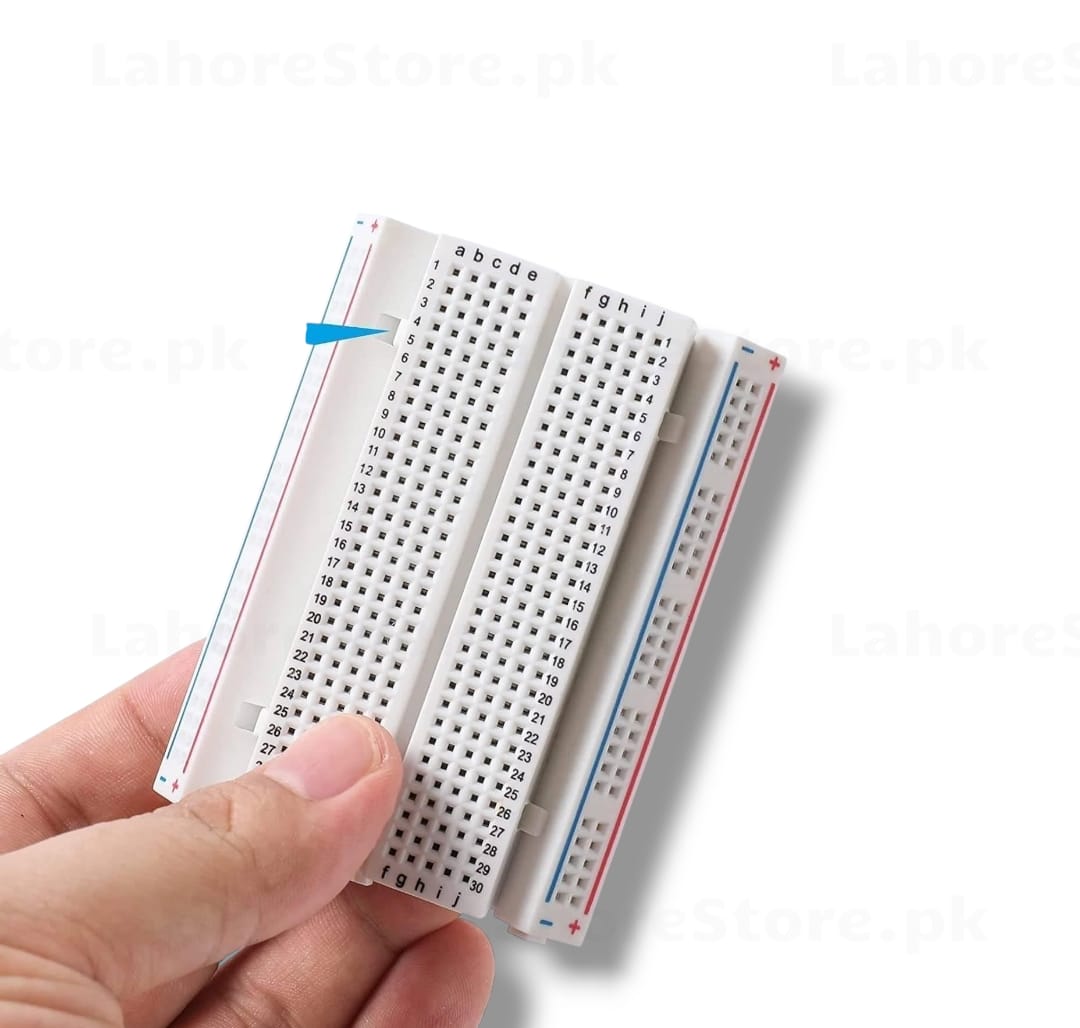

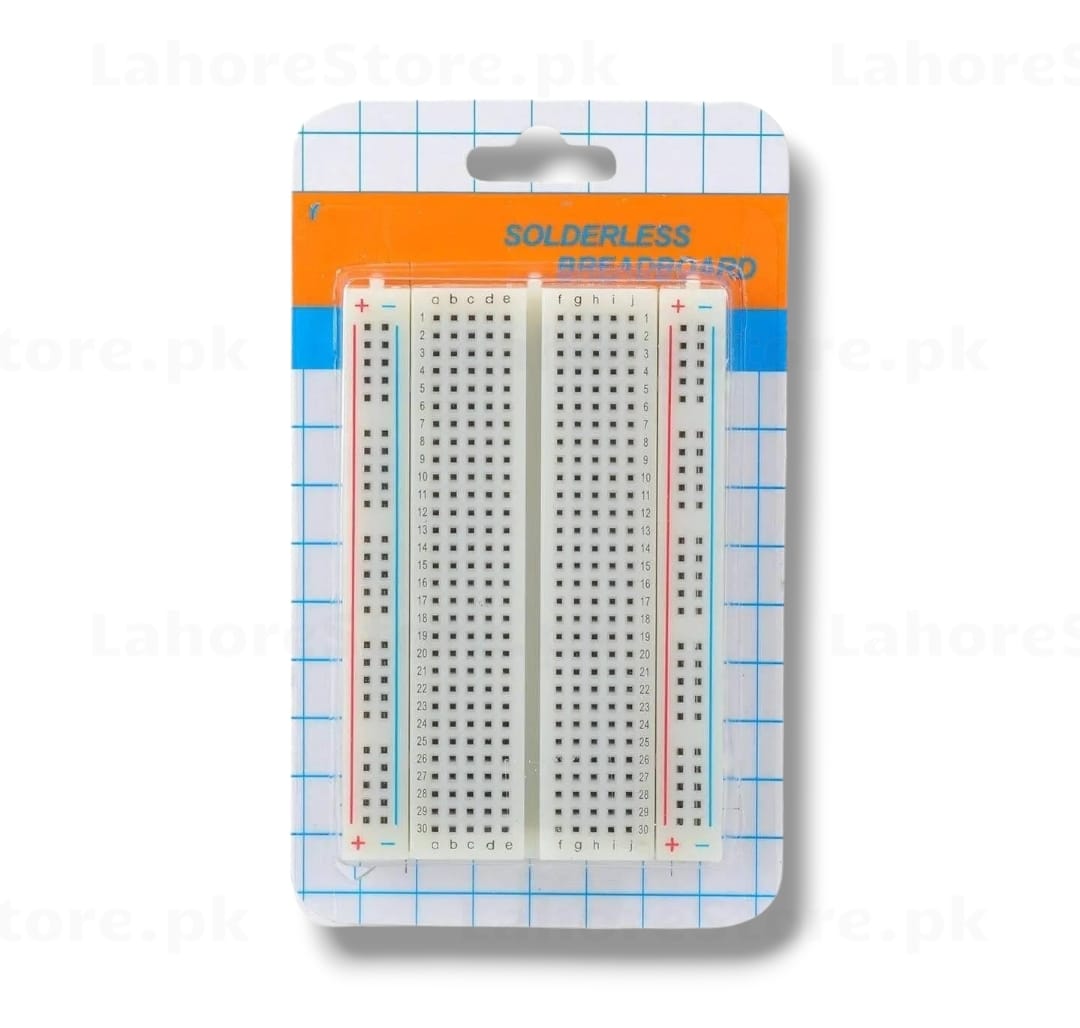

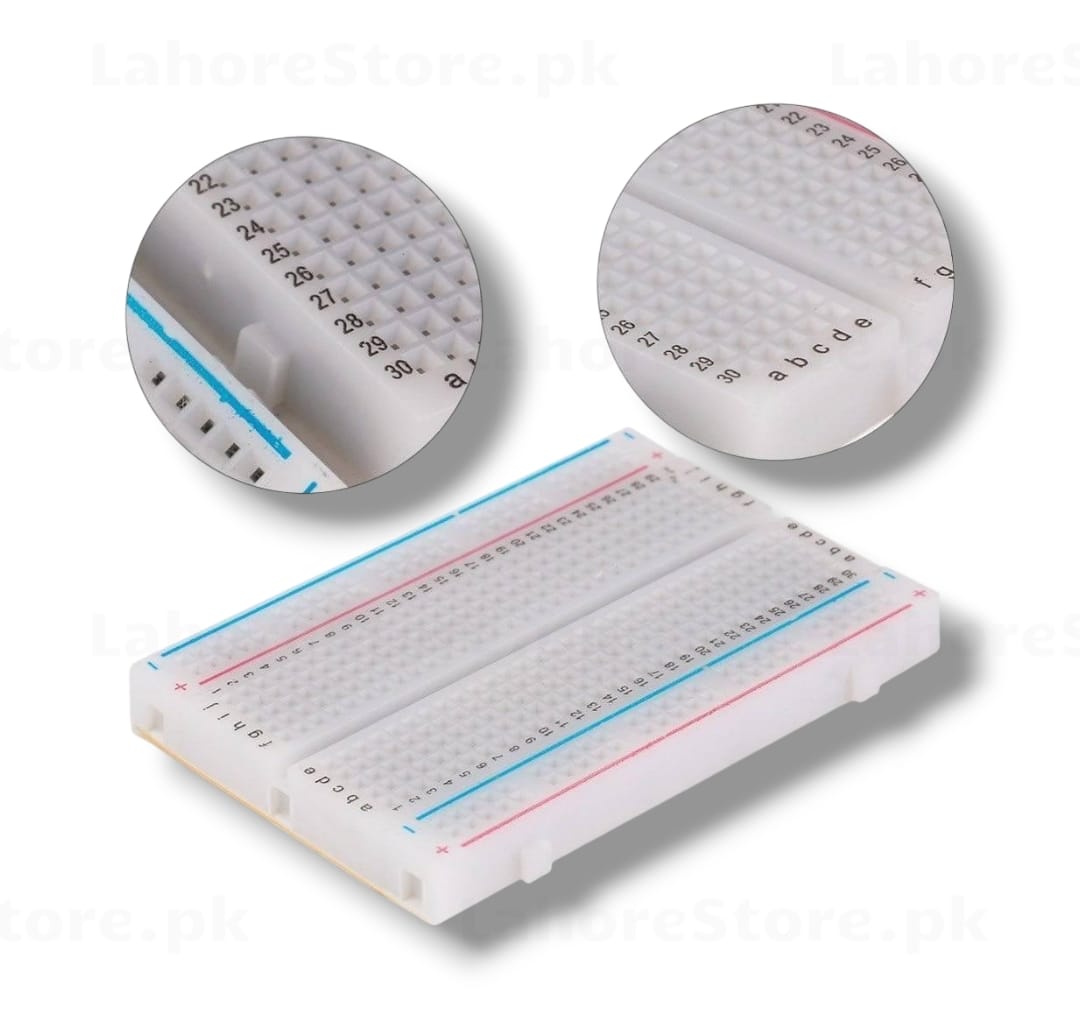

400-Point Solderless Breadboard – Half Size

The essential prototyping tool for every electronics enthusiast and developer. This 400-point solderless breadboard lets you build and test circuits in minutes — no soldering required. With clearly labeled rows and columns, color-coded power rails, and interlocking tabs for expansion, it's the perfect companion for Arduino, Raspberry Pi, and any DIY electronics project.

Key Features

• 400 tie-points total (300 main + 100 power rail points)
• Color-coded power rails: red (+) and blue (−)
• Labeled columns (a–e, f–j) and numbered rows (1–30)
• Interlocking side tabs for combining multiple boards
• Self-adhesive backing for secure mounting
• Compatible with standard 2.54mm pitch components and jumper wires
• Durable ABS plastic body

Specifications

• Tie Points: 400
• Pitch: 2.54mm (0.1")
• Dimensions: ~83 × 55 × 9mm
• Material: ABS plastic with nickel-plated spring contacts
• Max Voltage: 300V
• Max Current: 3A per contact

Applications

• Arduino & Raspberry Pi prototyping
• Circuit design and testing
• Electronics education and learning
• Sensor and module wiring
• IoT and embedded systems development
