AC 220V PIR Motion Sensor Switch with Adjustable Sensitivity & Time Delay - Outdoor Wall Mount

AC 220V PIR Motion Sensor Switch

Automate your lighting with this outdoor-grade PIR (Passive Infrared) motion sensor switch. Designed for direct AC 220V wiring, it features adjustable detection range, time delay, and light sensitivity — perfect for security lights, stairways, garages, and outdoor areas.

Key Features

• AC 220V direct wiring — no separate controller needed
• 3 adjustable knobs: Sensitivity (SEN), Time Delay (TIME), Light Level (LUX)
• Detection angle: 120° wide angle PIR lens

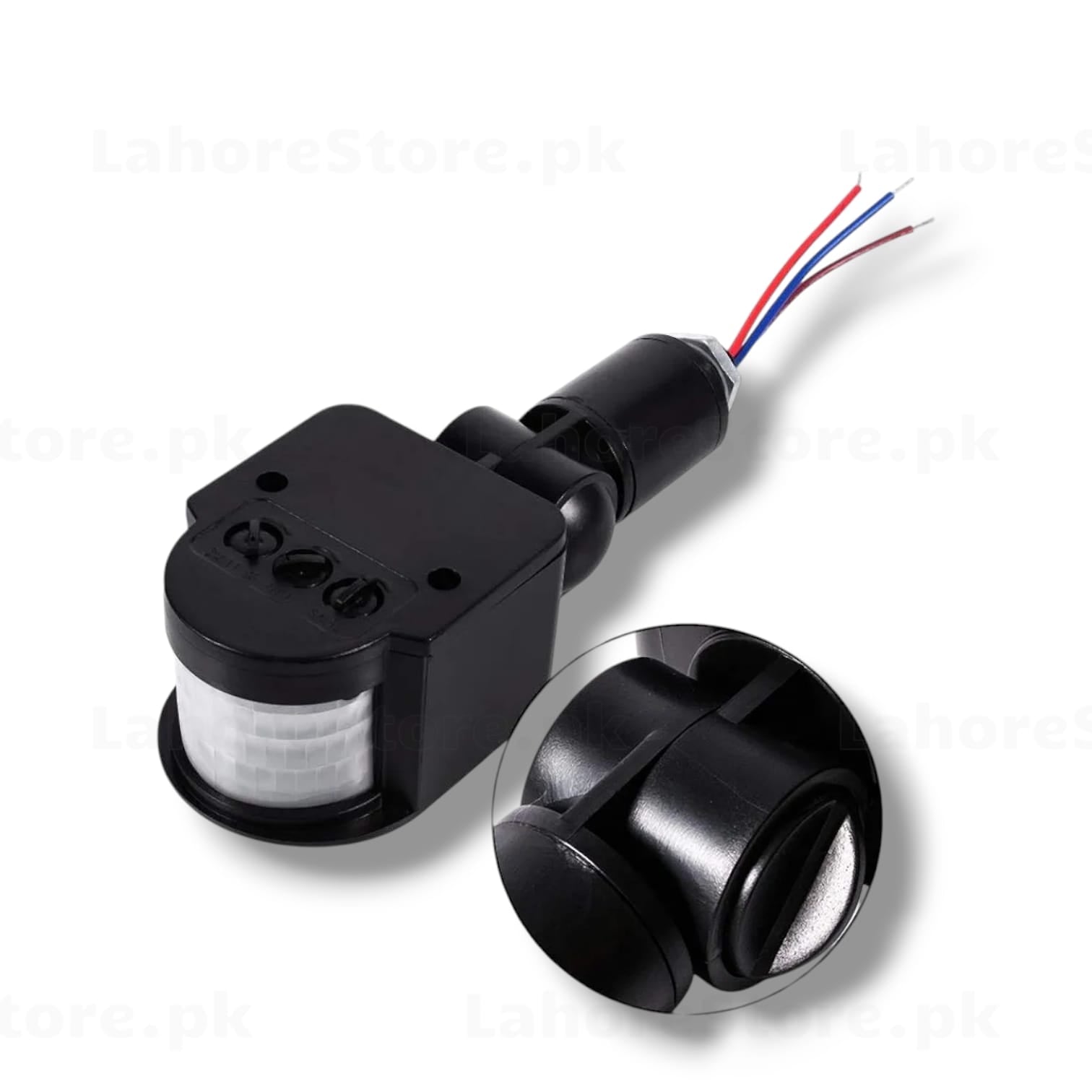

• Rotatable mounting bracket for flexible positioning
• Weatherproof black ABS housing for outdoor use

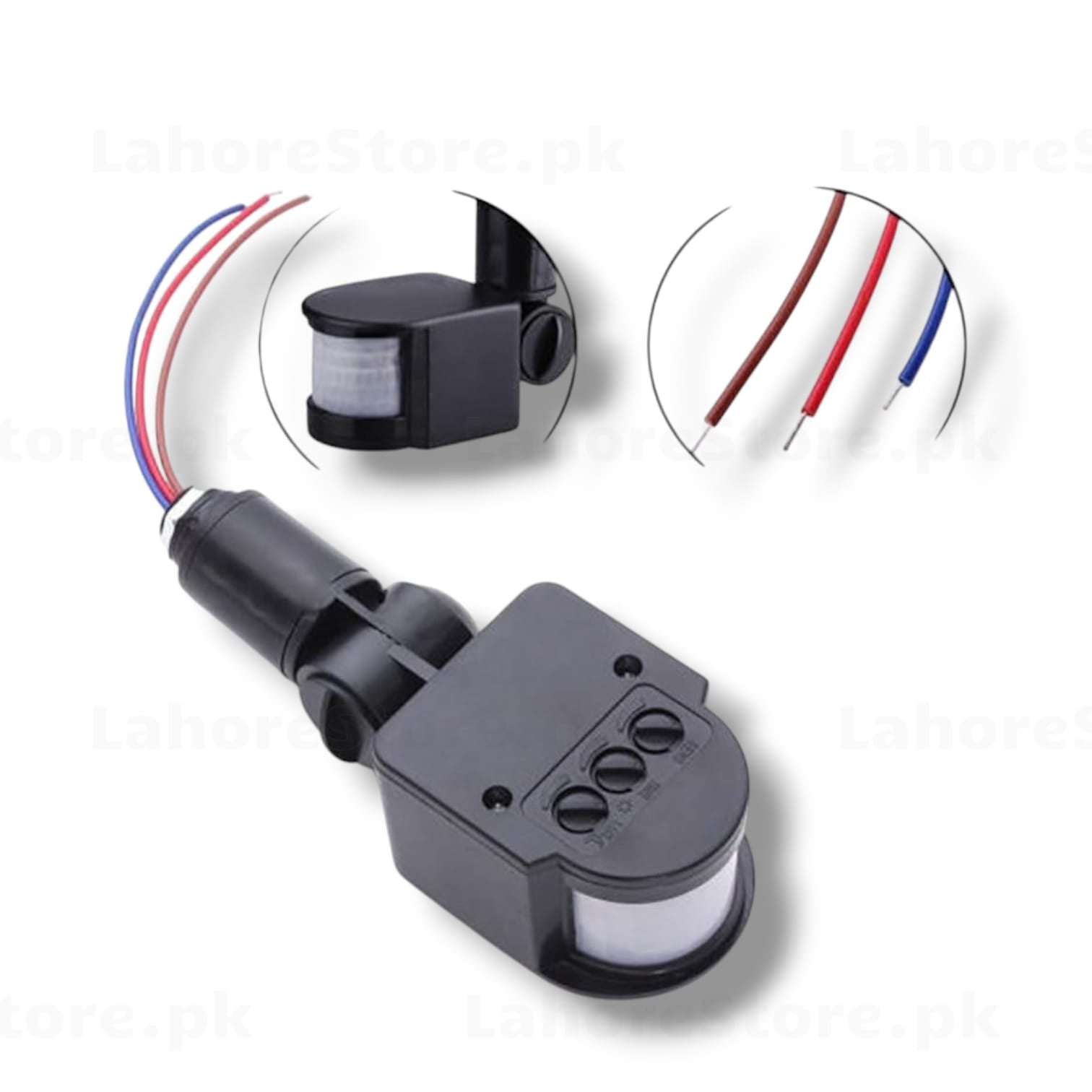

• 3-wire output: Live (red), Neutral (blue), Load (brown)

Specifications

• Input Voltage: AC 85V–265V (220V typical)
• Load: Max 800W (incandescent) / 200W (LED/CFL)
• Detection Range: Up to 8 meters
• Detection Angle: 120°
• Time Delay: 5 seconds – 10 minutes (adjustable)
• LUX Range: 3 – 2000 Lux (adjustable)
• Operating Temp: -20°C to +40°C

Applications

• Outdoor security and flood lights
• Stairway and corridor lighting
• Garage and driveway automation
• Garden and porch lights
