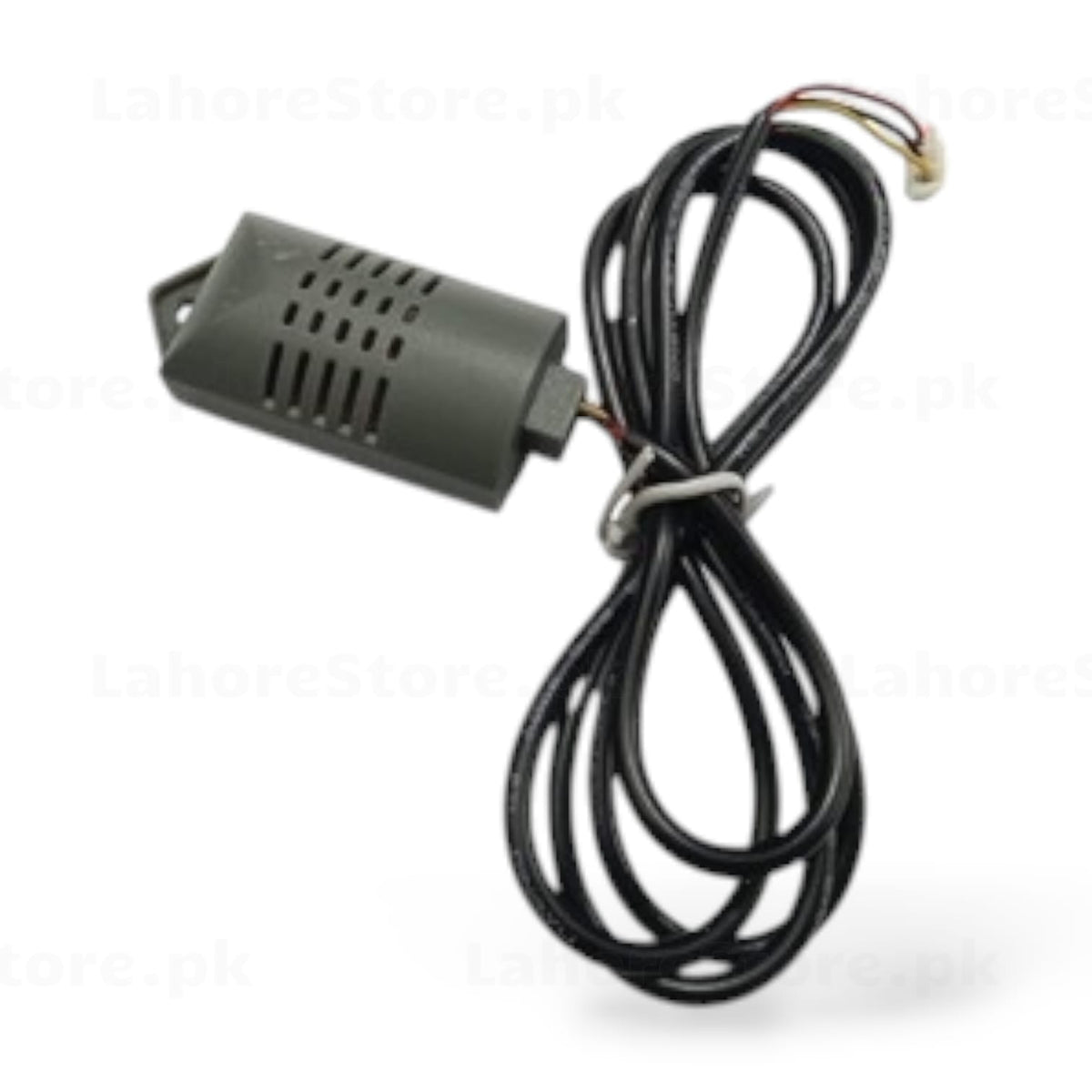

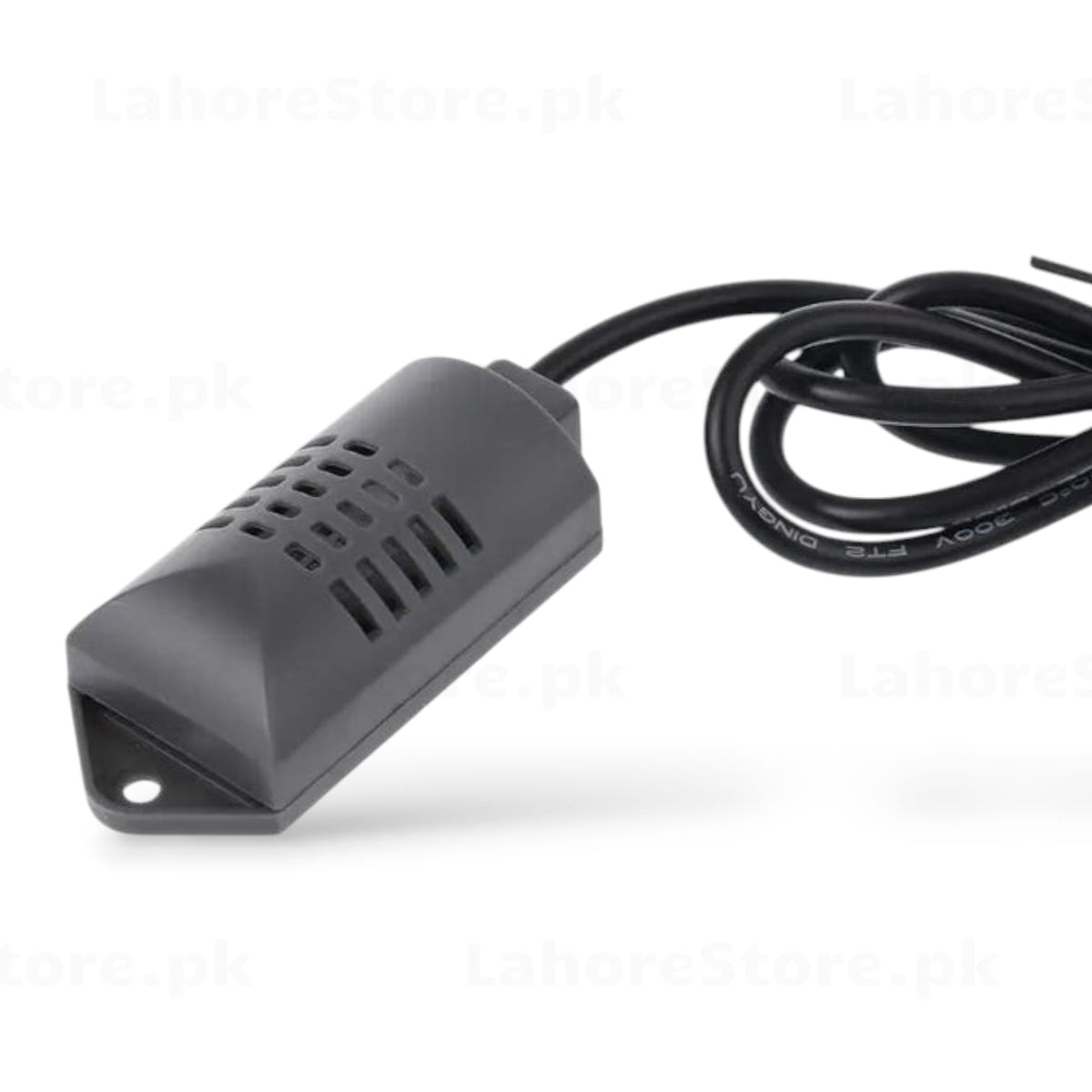

AM2301 DHT21 Temperature and Humidity Sensor with Cable

AM2301 DHT21 Temperature and Humidity Sensor with Cable

The AM2301 (also known as DHT21) is a wired digital temperature and humidity sensor housed in a compact, ventilated enclosure. It provides accurate and reliable environmental measurements and is widely used in HVAC systems, weather stations, greenhouses, and IoT monitoring projects.

The sensor comes with a long cable and a mounting bracket for easy installation in enclosures, panels, or outdoor environments.

Key Specifications

• Model: AM2301 / DHT21
• Supply Voltage: 3.3V to 5.5V DC
• Temperature Range: -40°C to +80°C
• Temperature Accuracy: ±0.5°C
• Humidity Range: 0% to 100% RH
• Humidity Accuracy: ±3% RH
• Output: Single-wire digital signal
• Sampling Rate: 0.5 Hz (one reading every 2 seconds)
• Cable Length: Approximately 1.5 meters
• Enclosure: Ventilated ABS plastic housing with mounting bracket

Key Features

• Combined temperature and humidity measurement in one sensor
• Digital single-wire output — easy to interface with microcontrollers
• Long cable for remote sensing applications
• Ventilated housing for accurate ambient readings
• Mounting bracket for panel or wall installation
• Compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and STM32

Applications

• HVAC and climate control systems
• Greenhouse and agricultural monitoring
• Weather stations and data loggers
• IoT environmental monitoring
• Server room and cold storage monitoring
• Home automation and smart systems

Package Contents

• 1x AM2301 DHT21 Temperature and Humidity Sensor
• 1x Long cable (approx. 1.5m) with bare wire ends
