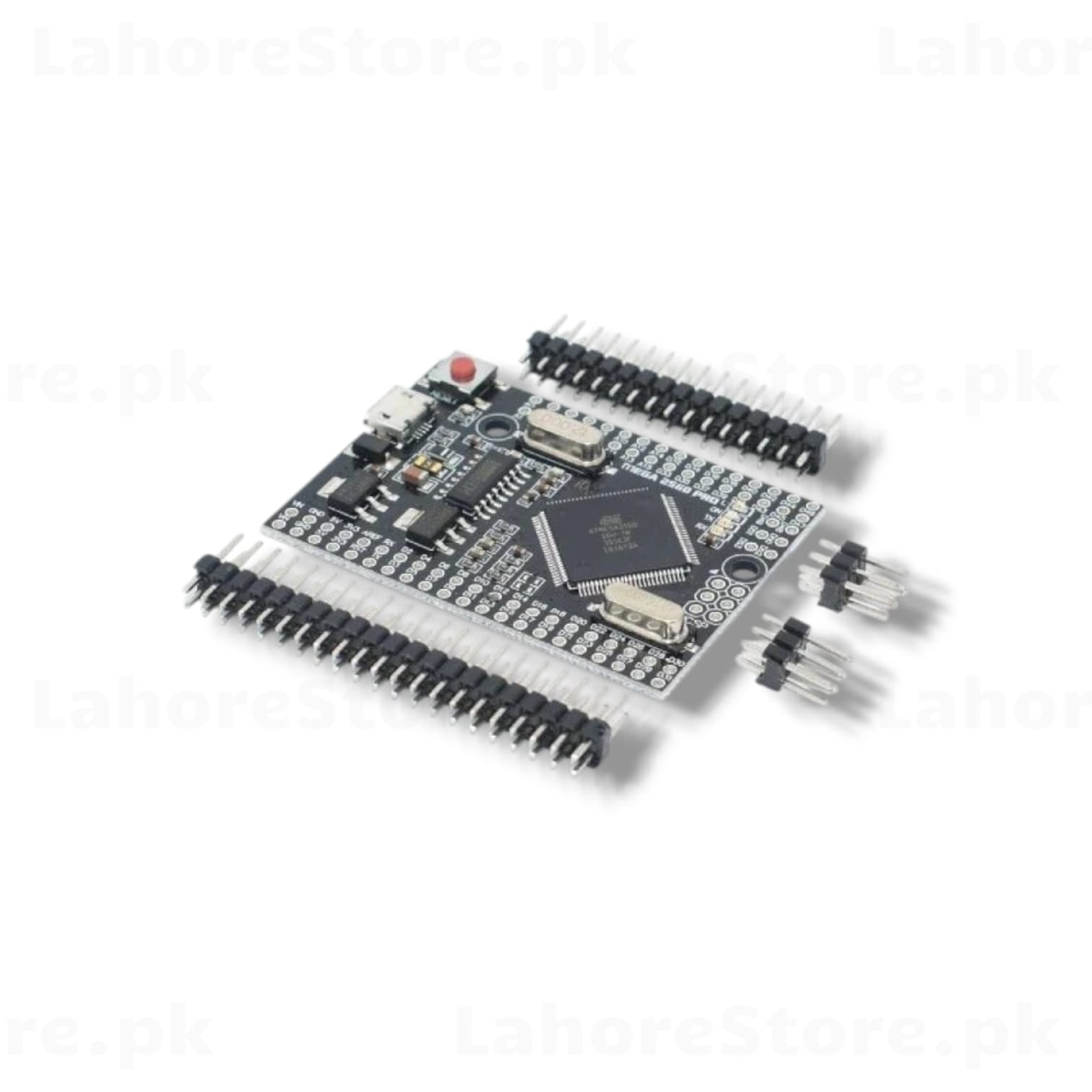

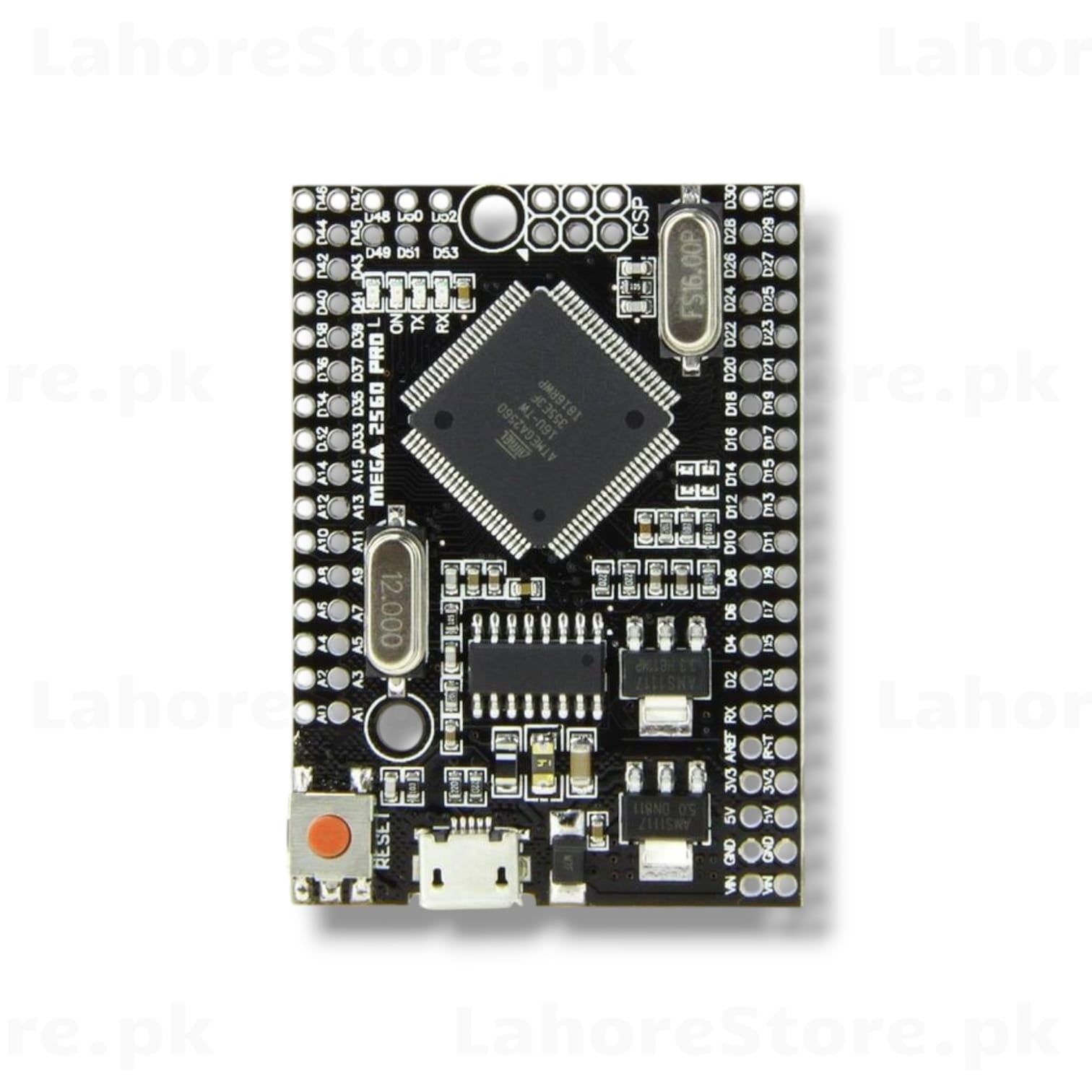

Arduino Mega 2560 PRO Mini Development Board (ATmega2560, Micro USB)

The Arduino Mega 2560 PRO Mini is a compact, high-performance development board based on the ATmega2560 microcontroller. It packs all the power of the standard Arduino Mega into a much smaller black PCB form factor, making it ideal for space-constrained projects that need lots of I/O pins and memory.

Key Features

• MCU: ATmega2560 @ 16MHz
• Flash: 256KB | SRAM: 8KB | EEPROM: 4KB
• 54 digital I/O pins (D0–D53), 16 analog inputs (A0–A15)
• Micro USB for programming and power
• Onboard reset button (red)
• 16MHz crystal oscillator
• UART, SPI, I2C interfaces
• 3.3V & 5V power output pins
• Includes black male header pins
• Fully compatible with Arduino IDE

Applications

CNC machines, 3D printers, robotics, large-scale automation, data logging, and any project requiring extensive I/O and memory beyond standard Arduino boards.
