Arduino Nano V3.0

Arduino Nano V3.0

Rs.850
Rs.750 Rs.850
Sale Sold out
Shipping calculated at checkout.
  1. Arduino Nano v3.0 – Compact & Breadboard-Friendly Board

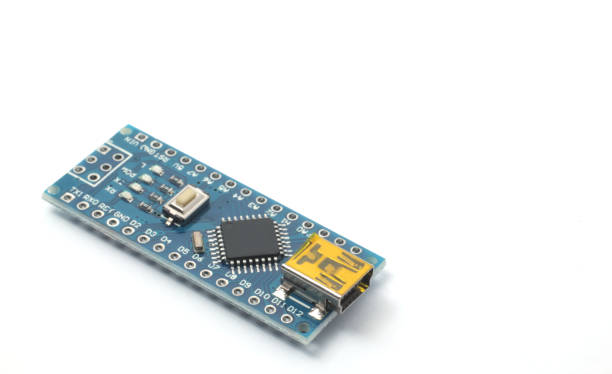

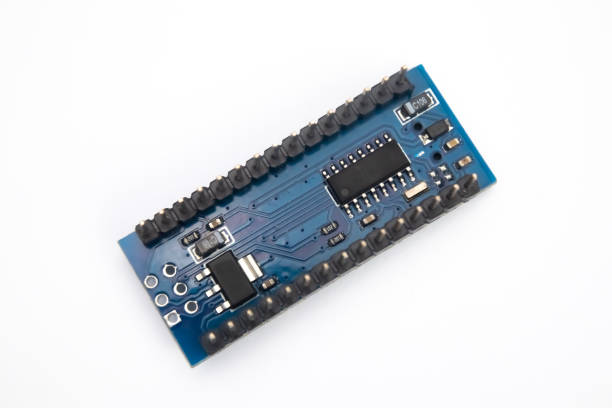

  2. The Arduino Nano v3.0 is a compact, breadboard-friendly microcontroller board based on the ATmega328P. It offers the same functionality as the Arduino UNO but in a much smaller form factor, making it ideal for embedded and space-constrained projects.
  3. Microcontroller: ATmega328P (16 MHz)
  4. USB Interface: Mini USB for programming and power
  5. Power Options: USB or external supply (6–12V via VIN)
  6. Auto Power Switching: Automatically selects higher voltage source
  7. Memory: 32 KB Flash, 2 KB SRAM, 1 KB EEPROM
  8. I/O Pins: 22 Digital I/O (6 PWM), 8 Analog Inputs
  9. Breadboard Friendly: Fits perfectly on standard breadboards
  10. Onboard LED: Connected to digital pin 13
  11. No Barrel Jack: Compact size without DC input jack
  12. Technical Specs
  13. Operating Voltage: 5V
  14. Input Voltage (recommended): 7–12V
  15. DC Current per I/O Pin: 40 mA
  16. USB Chip: CH340 or FT232 (varies by version)
  17. Package Includes

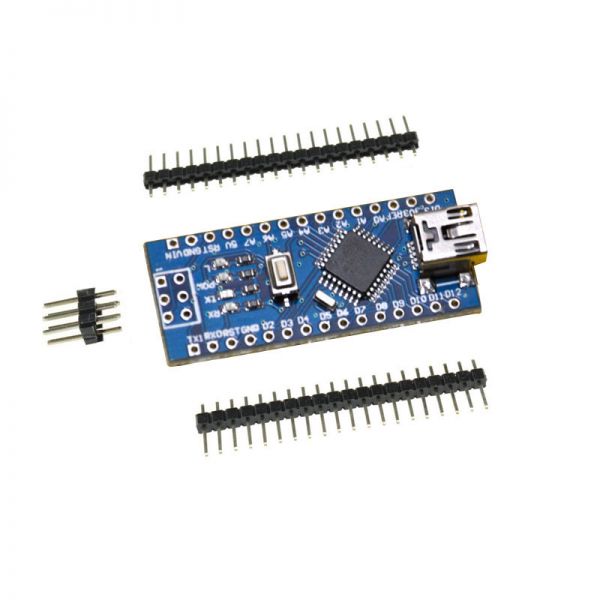

  18. • 1x Arduino Nano v3.0 Board
  19. • 1x USB Mini Cable (if applicable)
  20. • Optional: Header pins (may be unsoldered)
  21. Why Choose Arduino Nano v3.0?
  22. Perfect for mini projects, wearables, and portable embedded systems. Fully compatible with Arduino IDE and ideal for robotics, home automation, IoT, and educational use
