Arduino Sensor Shield V5.0 for UNO R3

Arduino Sensor Shield V5.0 – Multi-Function Expansion Board for UNO R3

The Arduino Sensor Shield V5.0 is a versatile expansion shield designed for the Arduino UNO R3. It breaks out all digital and analog pins into convenient 3-pin sensor connectors (VCC, GND, Signal), making it effortless to connect sensors, servos, and modules without any additional wiring or breadboard.

With dedicated connectors for LCD (parallel and serial), Bluetooth, APC220 wireless, SD card, and I2C devices, this shield is the go-to expansion board for robotics, automation, and sensor-based projects.

Key Features

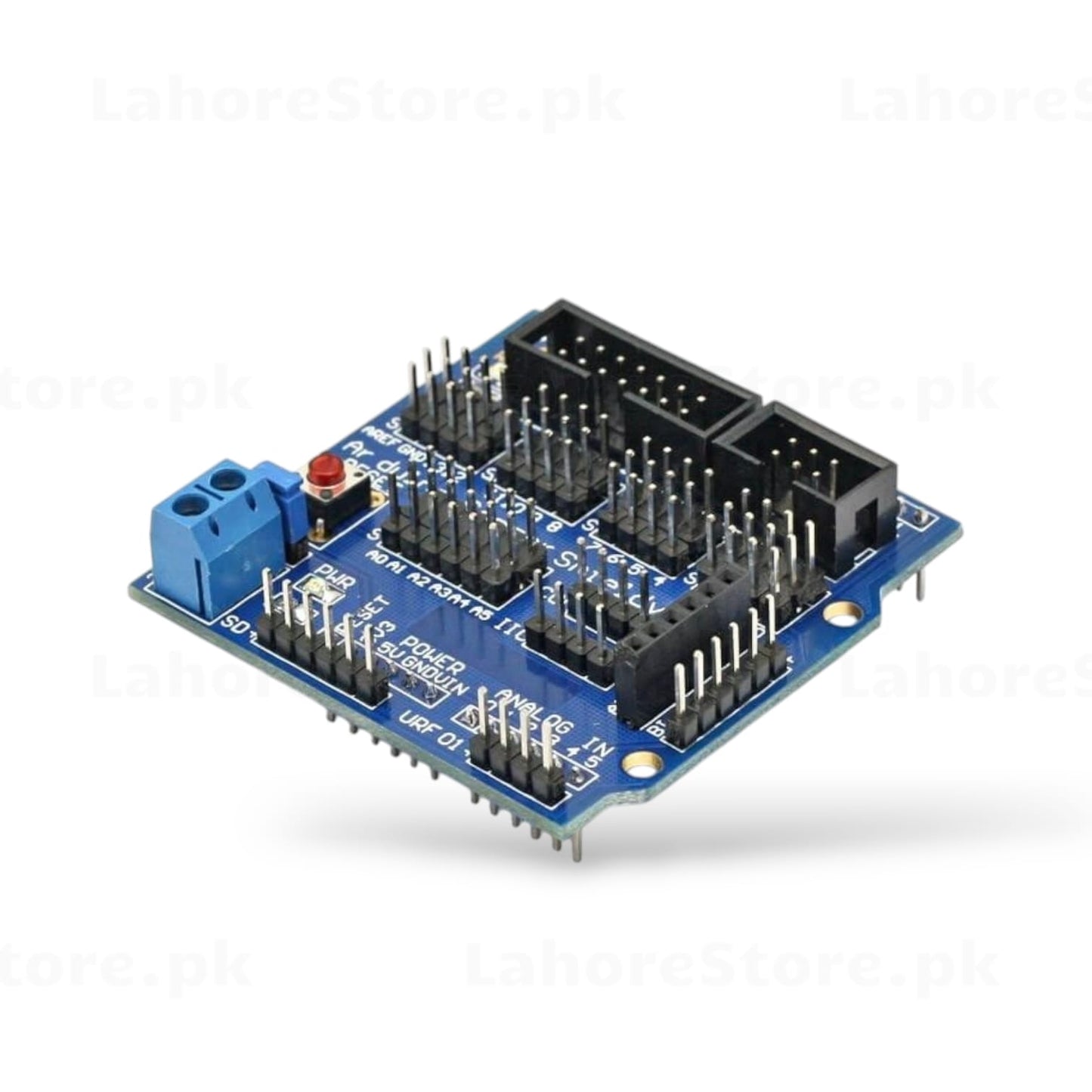

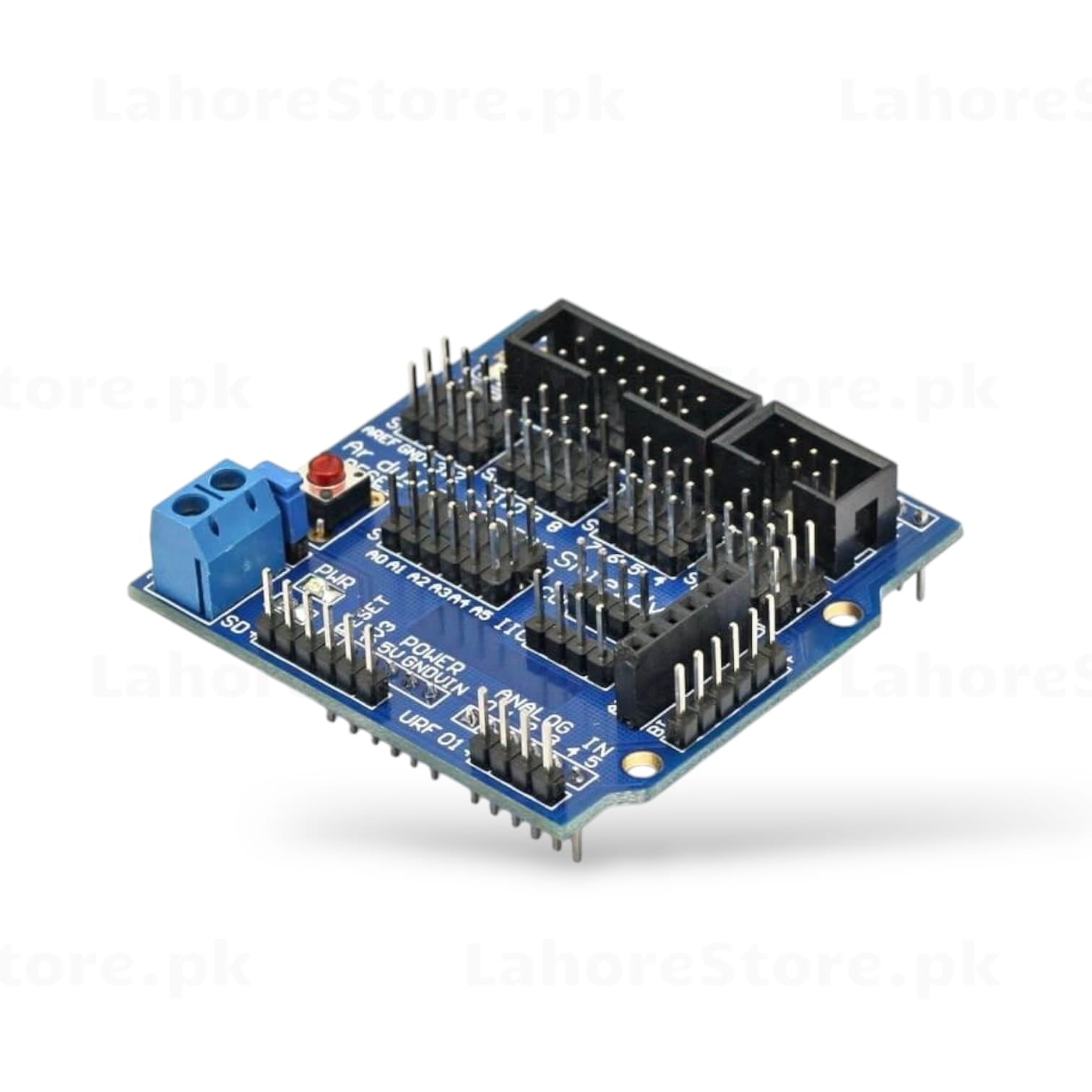

• All digital pins (D0–D13) broken out as 3-pin sensor headers (VCC, GND, SIG)
• All analog pins (A0–A5) broken out as 3-pin sensor headers

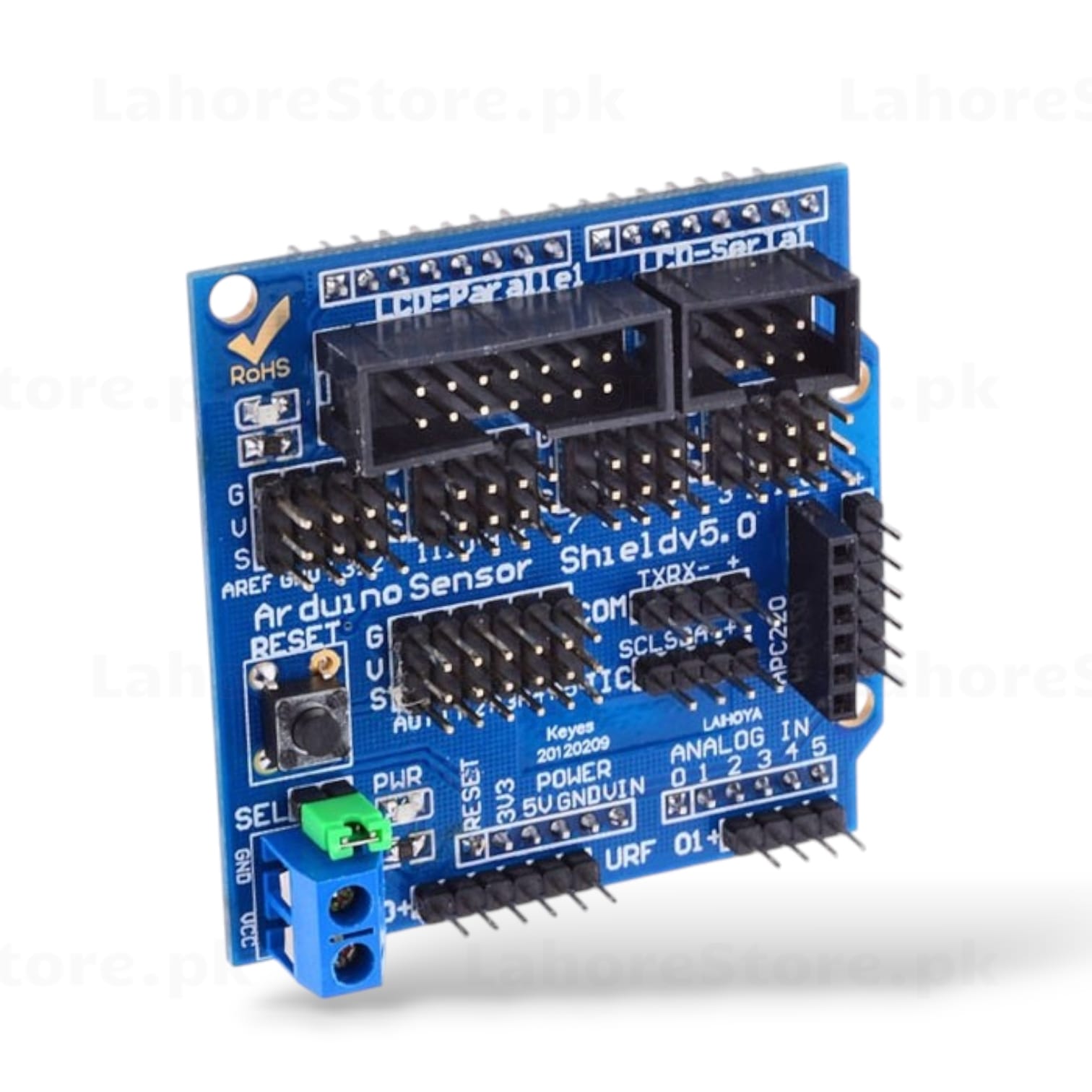

• Dedicated LCD-Parallel and LCD-Serial connectors
• Bluetooth module connector (TX/RX)
• APC220 wireless module connector
• I2C interface connector (SCL, SDA)
• SD card module interface
• External power input via screw terminal (supports VIN)
• Onboard power indicator LED and reset button
• RoHS compliant
• Compatible with Arduino UNO R3 and similar boards

Pin Breakdown

• Digital: D0–D13 as individual 3-pin headers
• Analog: A0–A5 as individual 3-pin headers
• Power: 5V, GND, VIN screw terminal
• Communication: I2C, UART (TX/RX), SPI (via SD slot)

Applications

• Sensor-based Arduino projects (temperature, humidity, ultrasonic, IR)
• Servo motor control for robotics
• LCD display interfacing (parallel and serial)
• Wireless communication with Bluetooth or APC220
• Educational electronics and STEM projects
• Smart home and automation prototyping

Package Contents

• 1x Arduino Sensor Shield V5.0
