CA-508 V12 LCD/TFT Panel Power Supply Board – Multi-Output Inverter Module

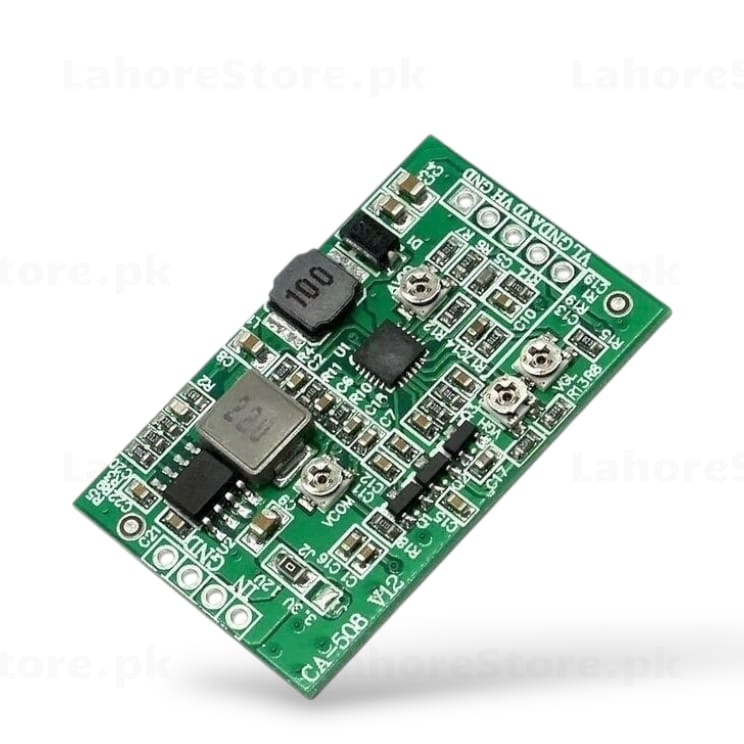

CA-508 V12 LCD/TFT Panel Power Supply Board

The CA-508 V12 is a dedicated multi-output power supply board designed for LCD and TFT display panels. Whether you're repairing a monitor, building a custom display system, or working on an embedded project, this board delivers the precise voltages your panel needs — all from a single input source.

Key Features

• Multi-output voltage regulation: VGL, VGH, VCOM, AVDD, and more
• Onboard 100µH power inductor for stable switching
• Dedicated VCOM adjustment for display contrast tuning
• Compact green PCB with clearly labeled pin headers
• Compatible with a wide range of TFT/LCD panels
• Suitable for monitor repair and custom display builds
• SMD components for reliable, low-noise operation

Specifications

• Model: CA-508 V12
• Input Voltage: Typically 12V DC
• Output Rails: VGL, VGH, VCOM, AVDD (panel-dependent)
• Inductor: 100µH
• PCB Color: Green
• Form Factor: Compact module with pin headers

Applications

• LCD / TFT panel power supply replacement
• Monitor and TV screen repair
• Custom embedded display systems
• DIY display driver projects
• Electronics prototyping and testing

Package Includes

• 1 × CA-508 V12 LCD/TFT Power Supply Board
