CF-6S12A 6S BMS Li-ion Battery Protection Board (24V 12A)

CF-6S12A — 6S Lithium Battery BMS Protection Board

The CF-6S12A is a high-performance 6-series (6S) Battery Management System (BMS) designed for 18650 and similar lithium-ion battery packs. It delivers robust overcharge, over-discharge, and overcurrent protection for 24V (25.2V fully charged) battery packs, making it ideal for e-bikes, power tools, solar storage, and high-power DIY battery systems.

Key Features

• 6S configuration — supports 6 cells in series (24V nominal / 25.2V max)
• Continuous discharge current: 12A
• Overcharge protection per cell (~4.25V cutoff)
• Over-discharge protection per cell (~2.5V cutoff)
• Overcurrent & short circuit protection
• Cell balancing via B1–B5 balance taps

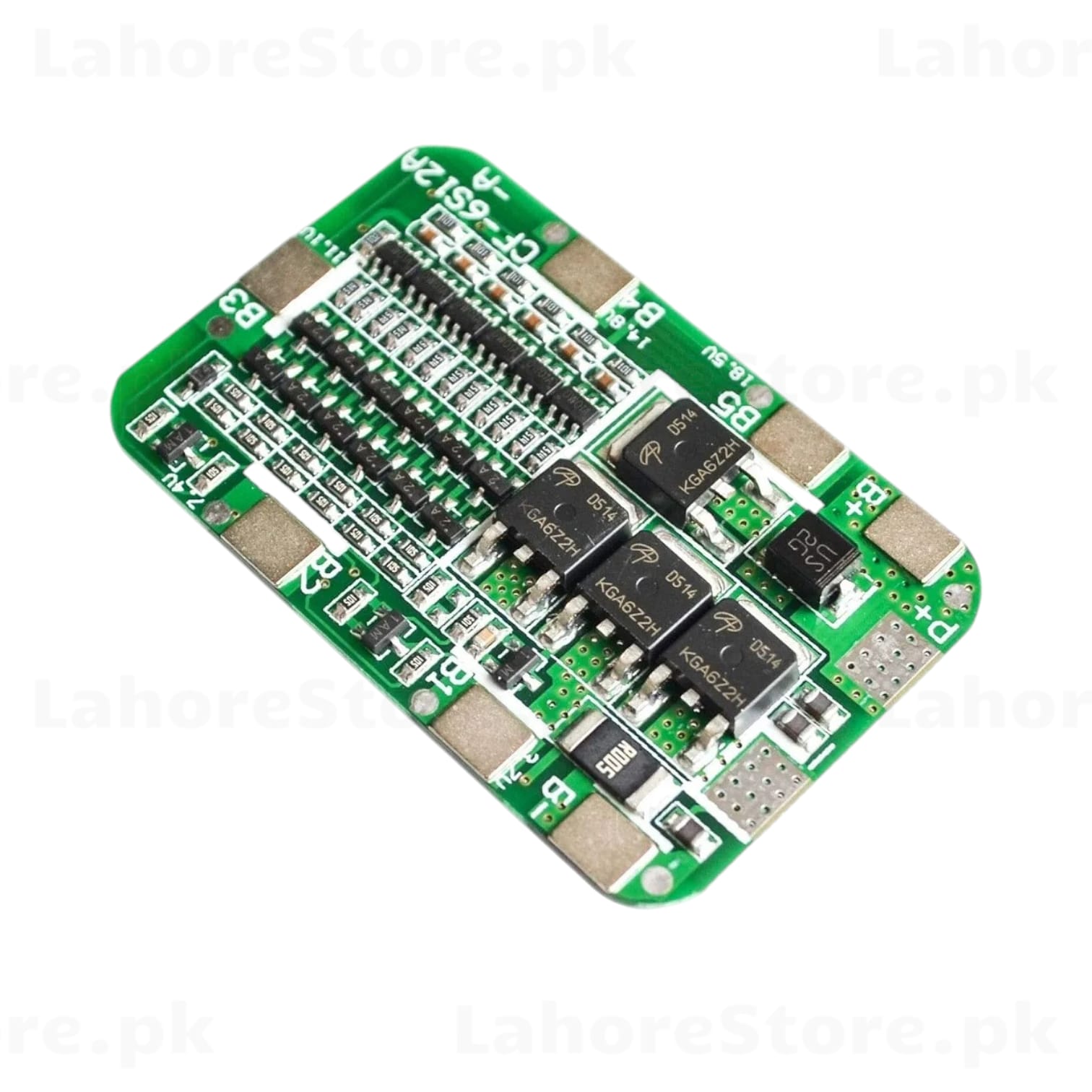

• MOSFETs: KGA622H — low RDS(on) for efficient switching

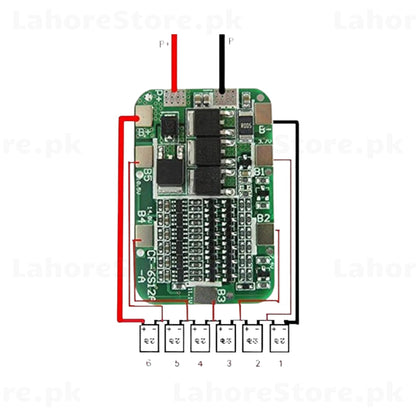

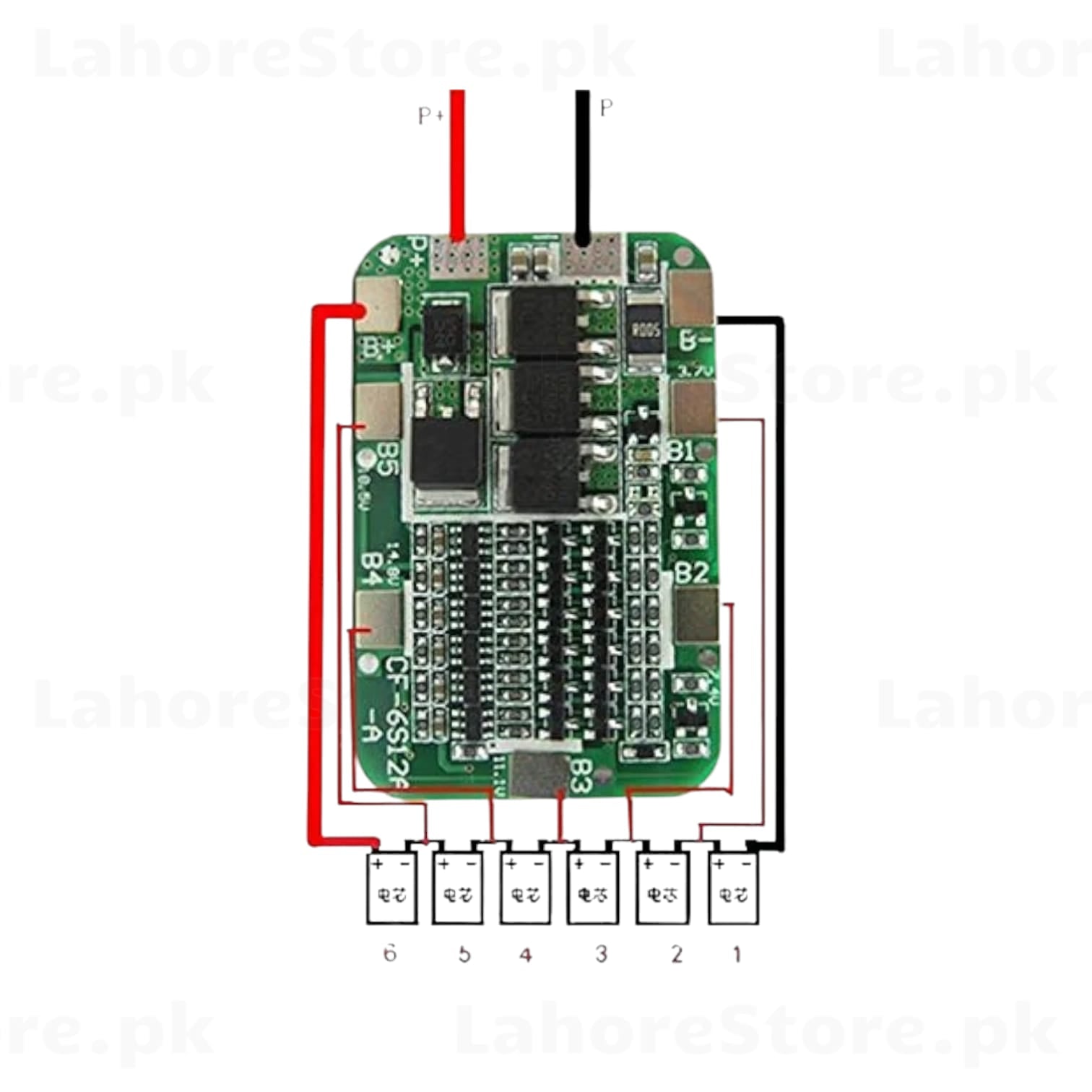

• Pads: B+, B−, B1–B5, P+, P− for easy wiring
• Compact PCB with rounded corners — fits standard enclosures

Typical Applications

• 24V 18650 lithium battery packs
• E-bike and electric scooter battery systems
• Power tool battery packs
• Solar energy storage systems
• Robotics and high-power DIY projects

Model: CF-6S12A | Configuration: 6S | Voltage: 24V (25.2V) | Current: 12A | MOSFET: KGA622H
