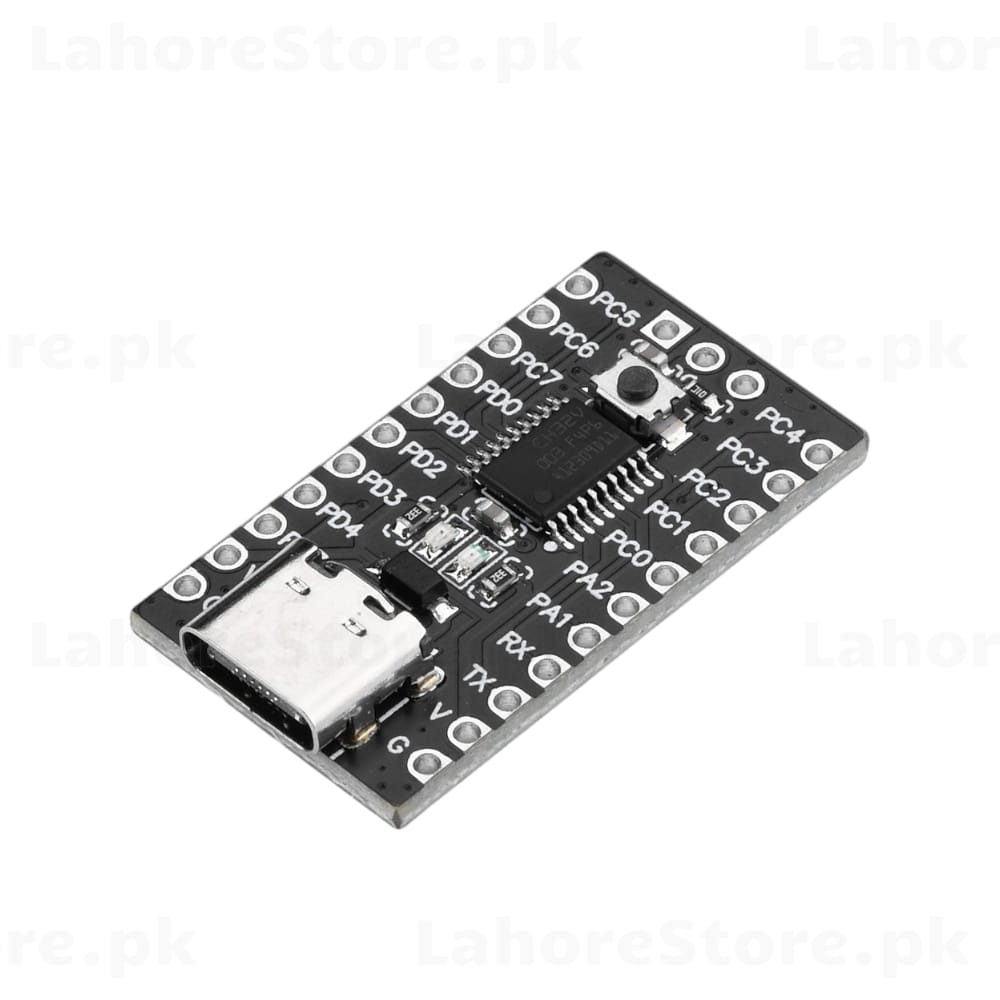

CH32V003 RISC-V Microcontroller Development Board – USB-C

CH32V003 RISC-V Microcontroller Development Board – USB-C

Meet the CH32V003 Development Board — a compact, ultra-affordable RISC-V based microcontroller board that packs serious capability into a tiny footprint. Powered by the WCH CH32V003 chip running the open-source RISC-V instruction set architecture, this board is perfect for makers, students, and embedded developers looking to explore RISC-V beyond the mainstream.

With a modern USB-C interface, labeled GPIO breakout pins, and a built-in reset button, it's ready to program right out of the box using the MounRiver Studio IDE or compatible toolchains.

Key Features

• CH32V003 RISC-V Core — 32-bit RISC-V processor, up to 48MHz
• USB-C Interface — modern power and programming connector
• Multiple GPIO Ports — PA, PC, PD series pins broken out on both sides
• UART Pins — TX and RX exposed for serial communication
• Onboard Reset Button — easy reset without disconnecting power
• Compact Black PCB — breadboard-friendly form factor
• V (3.3V) and G (GND) pins — for powering external components

Specifications

• MCU: WCH CH32V003
• Architecture: 32-bit RISC-V (RV32EC)
• Clock Speed: Up to 48MHz
• Flash: 16KB
• RAM: 2KB
• GPIO: PA, PC0–PC7, PD0–PD4 series
• Interface: USB-C (power + programming via WCH-LinkE)
• Operating Voltage: 3.3V
• PCB Color: Black

Applications

• RISC-V learning and experimentation
• Embedded systems prototyping
• IoT sensor nodes
• Low-cost automation and control projects
• Arduino alternative for advanced users
