DC Motor Driver Controller Module L298N

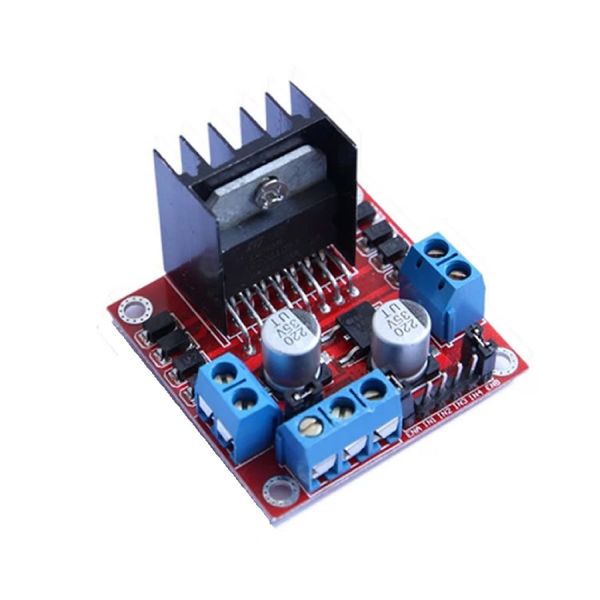

✅ L298N Motor Driver Module – Dual H-Bridge for DC & Stepper Motors
The L298N Motor Driver Module is a powerful dual H-bridge driver that lets you control the speed and direction of two DC motors or one stepper motor. Ideal for robotics, automation, and DIY motor control projects.

🔧 Key Features:
✅ Driver Chip: L298N Dual H-Bridge
⚡ Motor Voltage: 5V to 35V
🔌 Logic Voltage: 5V
🔋 Max Current: 2A per channel (with heat sink)
🔄 Dual Motor Control: Controls 2 DC motors or 1 stepper motor independently
🧠 PWM Speed Control: Works with Arduino or any microcontroller
📶 Control Inputs: IN1, IN2, IN3, IN4 for direction
🌡️ Onboard Heat Sink: Better performance under load
💡 Power Indicator LED: Visual status feedback

📊 Technical Specs:
🔌 Motor Supply Voltage (VMS): 5V – 35V
📐 Logic Voltage: 5V
⚡ Output Current: 2A per channel (peak 3A short-term)
🔧 Control Interface: Standard logic-level (TTL)
🌀 Dimensions: ~43mm x 43mm x 27mm

📦 Package Includes:
📦 1x L298N Dual H-Bridge Motor Driver Module
🧰 Terminal Blocks & Jumper Caps Pre-soldered (varies by version)

🧠 Why Choose L298N?
This module is a favorite for Arduino-based robotics and automation. Reliable, affordable, and easy to use in smart car kits, robotic arms, CNC systems, and more.
