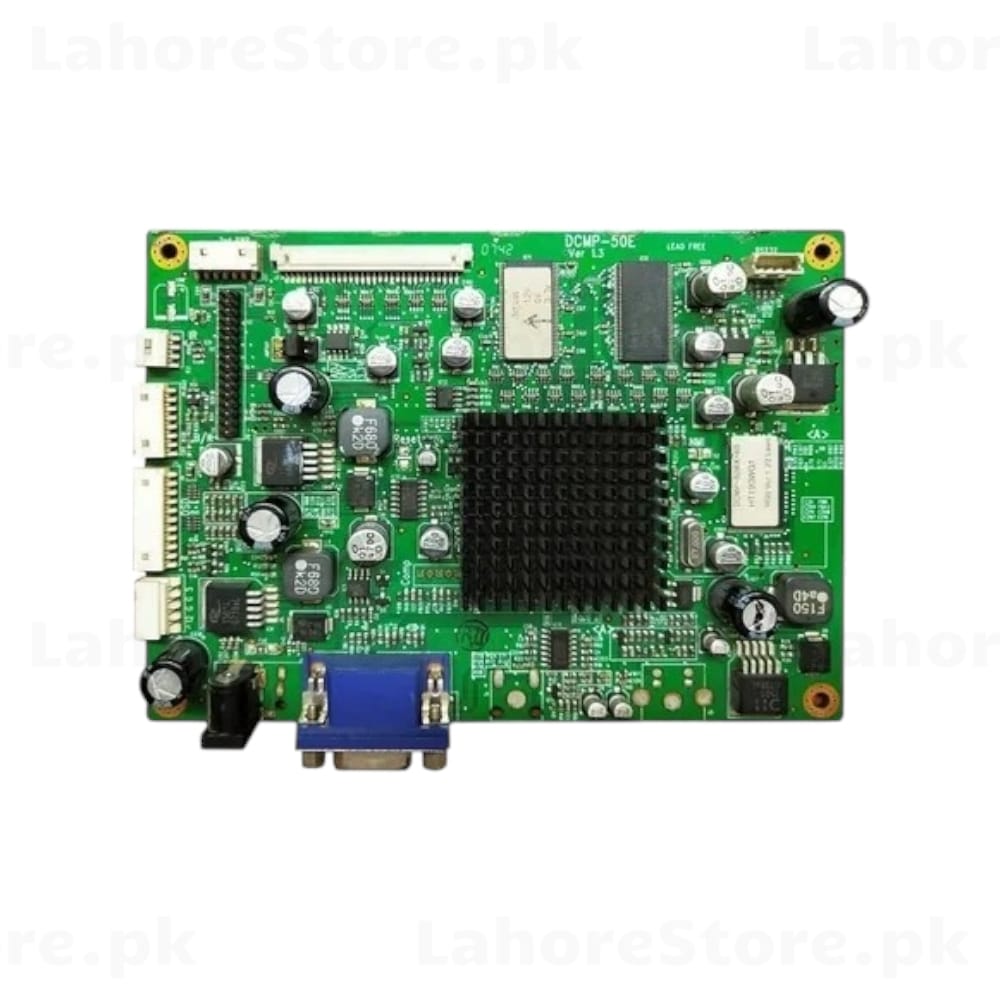

DCMP-50E LCD Monitor Main Board with VGA & LVDS

The DCMP-50E LCD Monitor Main Board (Ver 1.3) is a full-featured display controller board designed for LCD monitor applications. It supports VGA input and LVDS panel output, making it suitable for monitor repair, DIY display builds, and industrial display projects.

Key Features:

• Model: DCMP-50E Ver 1.3 — Lead Free (RoHS compliant)
• VGA input connector (DB-15, blue) for PC/laptop connection
• LVDS output via flat flex cable connector for LCD panel
• Multiple JST-style connectors for power, backlight, and panel signals
• Onboard large BGA processor/scaler IC with heatsink pad
• Electrolytic capacitors, inductors, and MOSFETs for stable power regulation
• Compact green PCB with mounting holes
• Suitable for monitor repair and custom display controller projects

Specifications:

• Model: DCMP-50E Ver 1.3
• Video Input: VGA (DB-15)
• Panel Output: LVDS (via FFC/FPC connector)
• Compliance: Lead Free / RoHS
• PCB Color: Green
• Application: LCD monitor main board / display controller

Ideal for technicians repairing LCD monitors or makers building custom display systems with standard LVDS panels.
