Discovery STM32F100

🔧 STM32F1 Discovery Board (STM32VL) – Affordable ARM Cortex-M3 Board for Learning & Prototyping

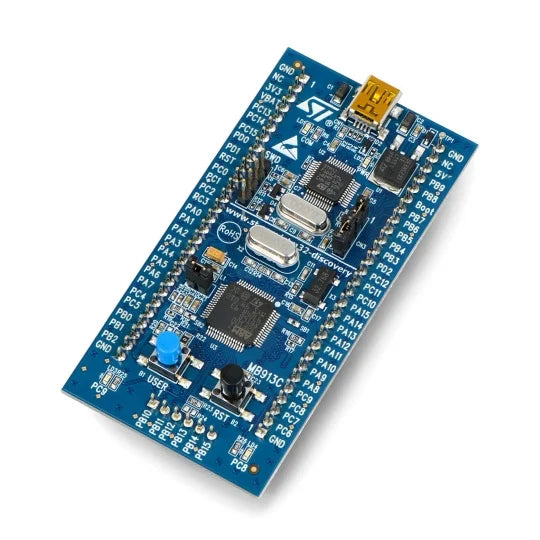

The STM32F1 Discovery Board (STM32VL) is based on the STM32F100RB microcontroller with a Cortex-M3 core, offering solid performance and low power consumption. It’s the perfect dev board for embedded beginners, RTOS learners, and industrial automation prototypes.

🔧 Key Features
🧠 Microcontroller: STM32F100RB (ARM Cortex-M3 @24 MHz)
📦 Flash Memory: 128 KB
💾 SRAM: 8 KB
🔌 Onboard Debugger: ST-LINK/V1 for easy USB programming/debugging
📟 User I/O:
• 1× User LED
• 1× User Button
⚡ Power Supply: USB powered or external 5V
📡 Interfaces: UART, SPI, I2C, GPIOs, Timers, ADC, PWM

🧰 Package Includes
✅ 1× STM32VL Discovery Board (STM32F1 Series)
📄 Pre-soldered headers + onboard debugger
🧰 Compatible with STM32CubeIDE, Keil, PlatformIO, and more

🧠 Perfect For
🎓 Embedded systems education
🤖 Basic robotics and automation
📲 UART/SPI/I2C peripheral interfacing
📦 Low-power real-time applications
🛠️ Prototyping industrial control logic

🛠️ How It Works
1️⃣ Connect to your PC via USB
2️⃣ Program using STM32CubeIDE, Keil, or any supported IDE
3️⃣ Use onboard ST-LINK for debugging and uploading
📲 Start interacting with GPIOs, LEDs, and sensors instantly!

💡 Pro Tip: Great for students learning ARM Cortex-M development — pair with UART sensors, displays, or motor drivers for complete hands-on projects.
