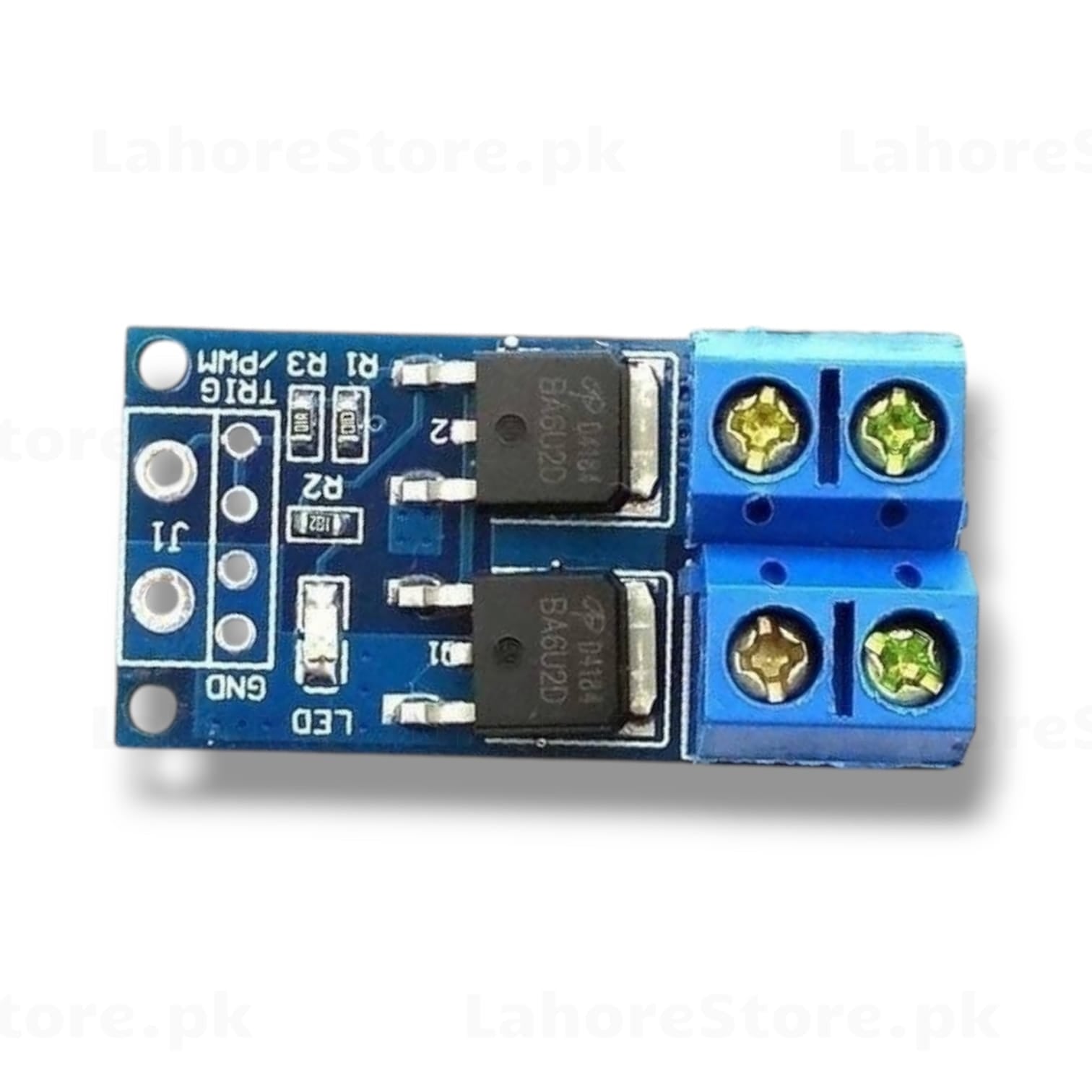

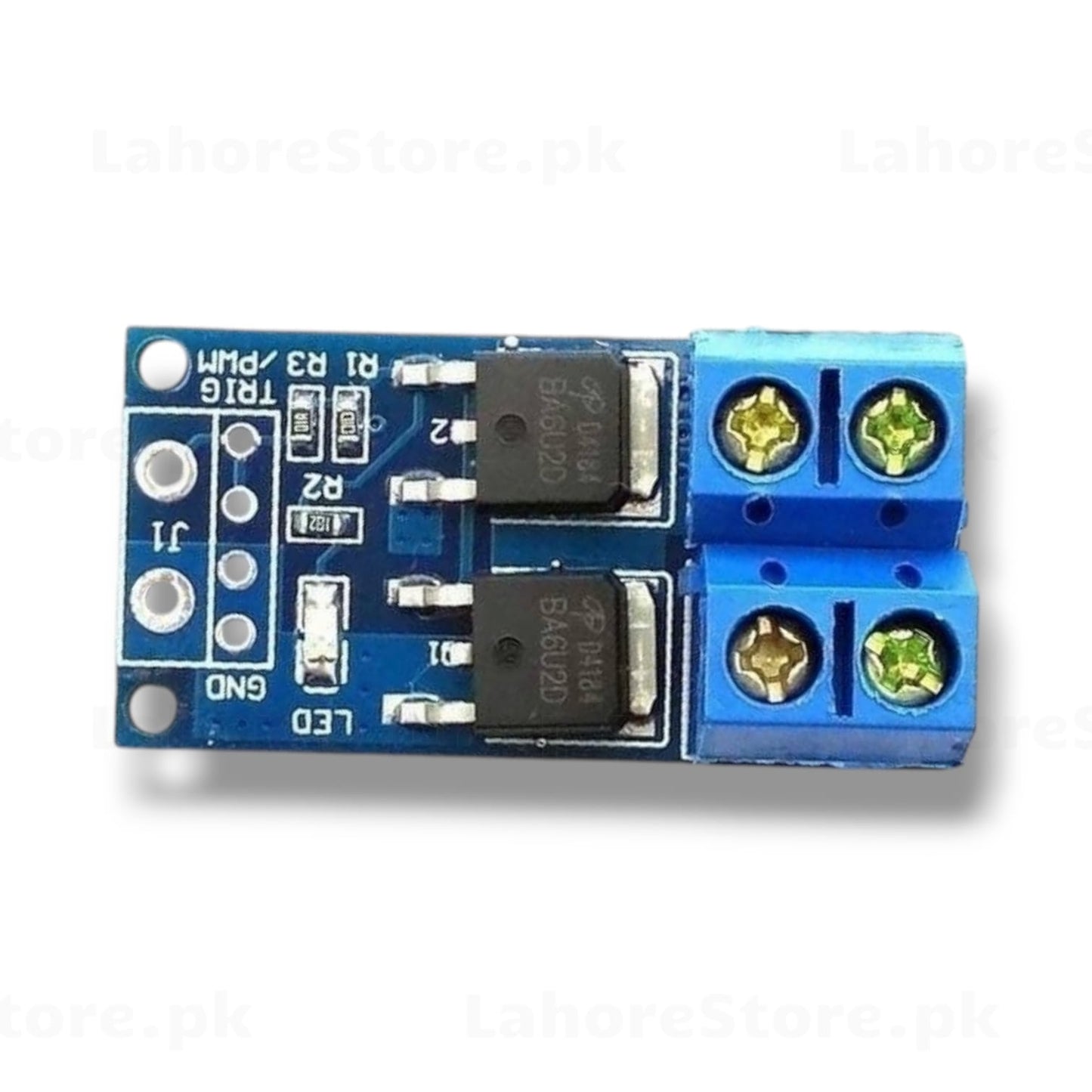

Dual MOSFET Drive Module PWM High-Power Switch Controller

Take control of high-power loads with this compact Dual MOSFET Drive Module. Featuring two N-channel power MOSFETs on a single PCB, it supports PWM speed control, on/off switching, and independent dual-channel operation. With screw terminal outputs and a simple TRIG/PWM input interface, it integrates seamlessly with Arduino, Raspberry Pi, and any 3.3V/5V microcontroller.

Key Features

• Dual N-channel MOSFET design for two independent high-power channels
• PWM input support for speed/brightness control
• TRIG pin for simple digital on/off switching
• Screw terminal outputs for easy load connection
• Onboard LED indicator per channel
• GND and signal pins clearly labeled
• Wide load voltage range (up to 30V DC)
• Compact PCB with mounting hole

Applications

• DC motor speed control (PWM)
• LED strip dimming
• Solenoid and relay replacement
• High-current load switching
• Arduino/ESP32 power control projects
• Fan speed control

Specifications

• MOSFET Type: N-Channel (×2)
• Input Signal: 3.3V / 5V PWM or digital
• Load Voltage: 5V – 30V DC
• Max Load Current: Up to 15A per channel (with heatsinking)
• Control Pins: TRIG, PWM, GND
• Output: Dual screw terminals
• Indicator: Onboard LED
