EE16 High-Frequency Ferrite Core Transformer

EE16 High-Frequency Ferrite Core Transformer

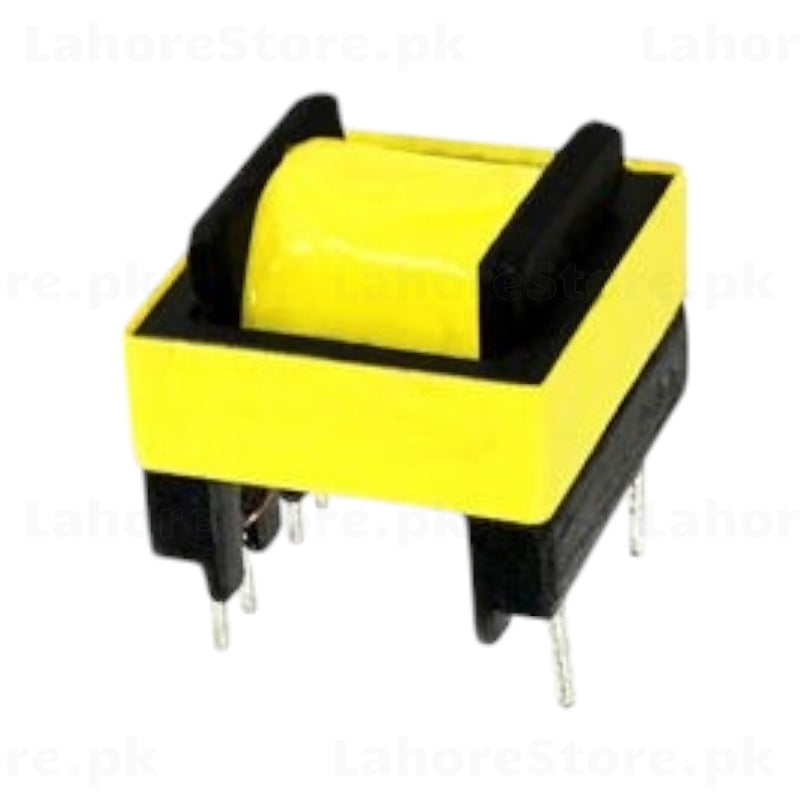

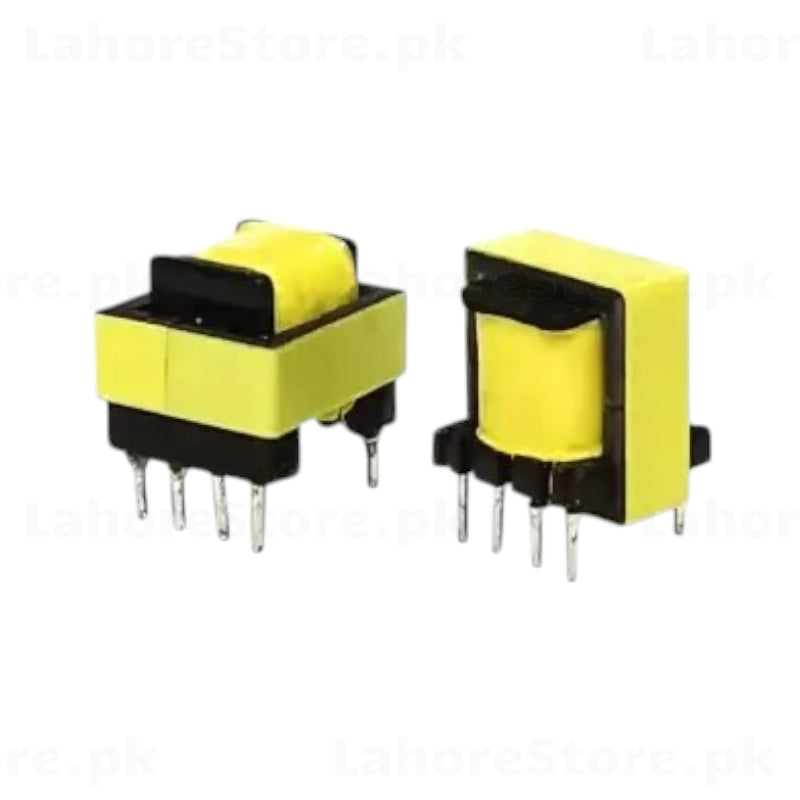

The EE16 is a compact, through-hole ferrite core transformer designed for high-frequency switching power supply applications. Featuring a yellow bobbin with EE-type ferrite core and PCB-mount pins, it is ideal for SMPS, inverters, DC-DC converters, and other power electronics projects.

Key Features

• EE16 ferrite core with yellow bobbin construction
• High-frequency operation — suitable for SMPS and switching circuits
• Through-hole PCB mount pins for easy soldering
• Compact and lightweight design
• Low core loss at high frequencies
• Suitable for isolation and voltage conversion applications

Typical Applications

• Switch Mode Power Supplies (SMPS)
• DC-DC converters and inverters
• Flyback and forward converter circuits
• Battery chargers and adapters
• LED driver circuits

Package Contents

• 1x EE16 Ferrite Core Transformer

A reliable and efficient transformer for DIY power electronics, embedded systems, and engineering projects.
