Emergency Stop Button E-Stop – Xindali LAY5-BE102 NC 400V Red Mushroom Head

Emergency Stop Button E-Stop – Xindali LAY5-BE102 NC 400V Red Mushroom Head

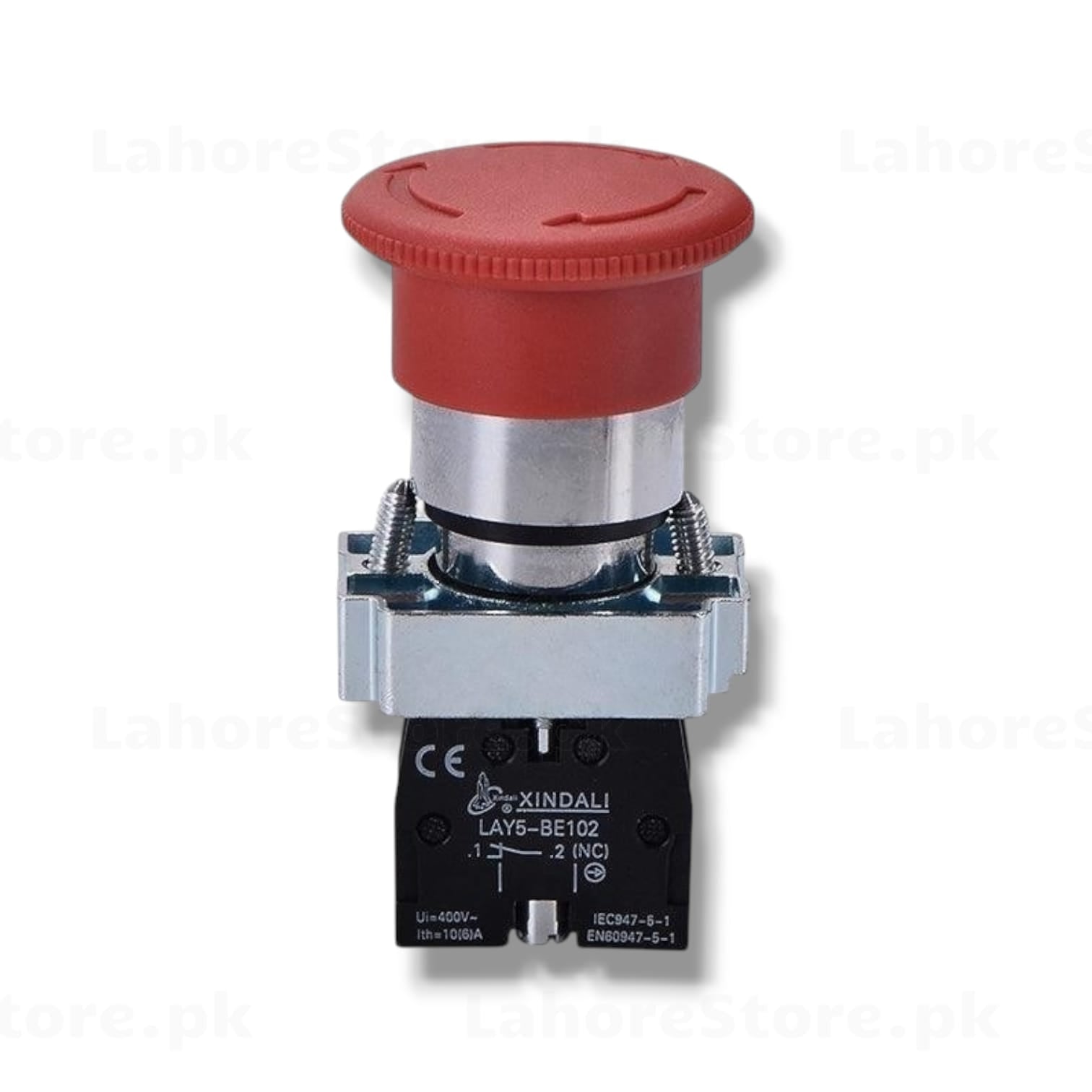

The Xindali LAY5-BE102 is a heavy-duty emergency stop (E-Stop) push button switch with a large red mushroom head and Normally Closed (NC) contact block. Designed for industrial control panels, CNC machines, conveyor systems, and safety circuits, it provides instant circuit interruption when pressed — and requires a deliberate twist-to-release action to reset, preventing accidental restart.

CE certified and compliant with IEC947-5-1 and EN60947-5-1 international safety standards, this E-Stop is trusted in professional and DIY industrial applications alike.

Key Features

• Large Red Mushroom Head — highly visible, easy to press in emergencies
• Twist-to-Release — latching mechanism prevents accidental reset
• NC Contact (Normally Closed) — opens circuit when pressed for fail-safe operation
• 400V Rated — suitable for industrial voltage levels
• 10A Current Rating — handles significant load currents
• Metal Body — chrome-plated zinc alloy for durability
• 22mm Panel Mount — standard industrial panel cutout size
• CE Certified — IEC947-5-1 and EN60947-5-1 compliant

Specifications

• Brand: Xindali
• Model: LAY5-BE102
• Contact Type: NC (Normally Closed)
• Rated Voltage (Ui): 400V
• Rated Current (Ith): 10(6)A
• Panel Cutout: 22mm
• Head Color: Red
• Head Type: Mushroom / Palm button
• Reset Method: Twist-to-release (latching)
• Standards: IEC947-5-1, EN60947-5-1
• Certification: CE
• Body Material: Chrome-plated zinc alloy

Wiring

• Terminals 1 & 2 — NC contact (circuit opens when E-Stop is pressed)

Applications

• CNC machine emergency stop circuits
• Industrial control panels and automation
• Conveyor and motor control systems
• 3D printer and laser cutter safety
• Robotics and DIY industrial projects
• Safety interlock systems
