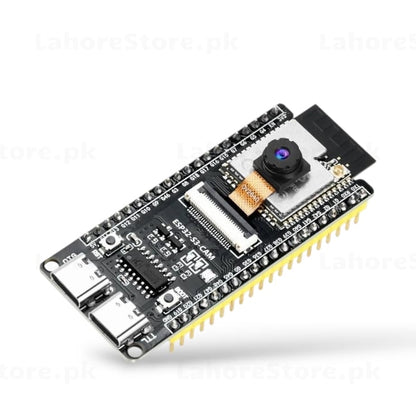

ESP32-S3-CAM Development Board with OV2640 Camera – Dual USB-C, WiFi & Bluetooth

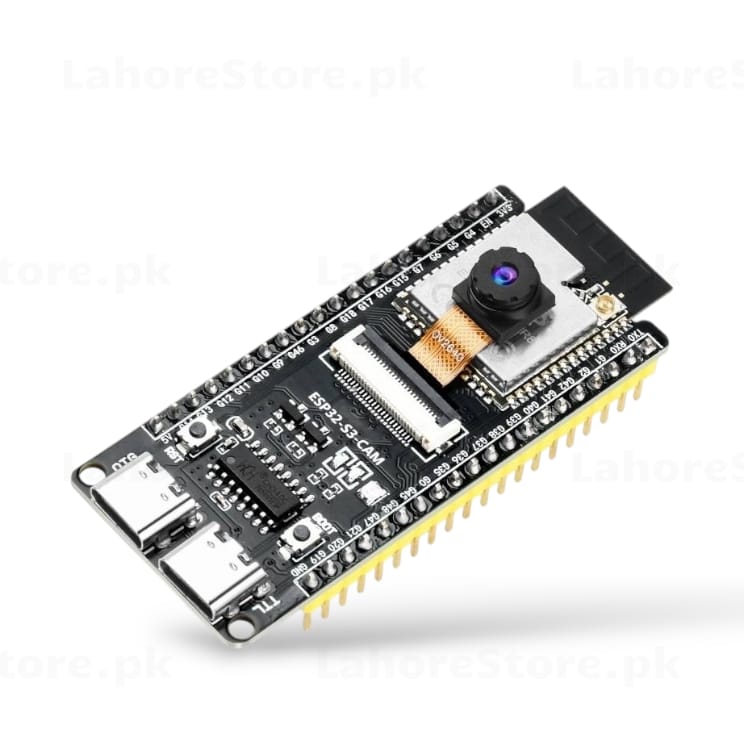

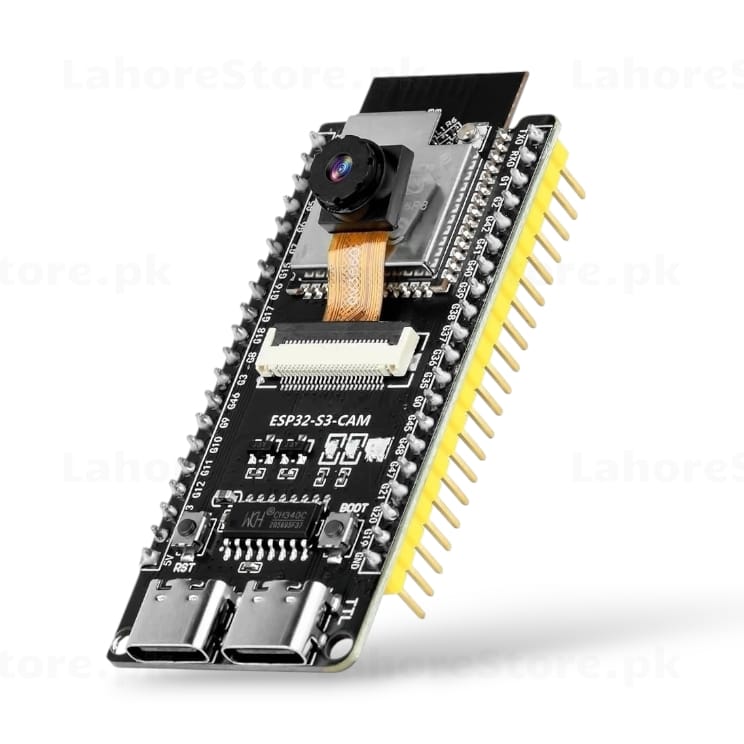

ESP32-S3-CAM Development Board

The ESP32-S3-CAM is a powerful, all-in-one camera development board built on Espressif’s ESP32-S3 dual-core processor. With an onboard OV2640 camera module, dual USB-C ports, and full WiFi + Bluetooth 5.0 support, it’s the perfect platform for AI vision, IoT surveillance, face recognition, and wireless image streaming projects — all in a compact, breadboard-friendly form factor.

Key Features

• ESP32-S3 dual-core Xtensa LX7 processor @ up to 240MHz
• Onboard OV2640 camera (up to 2MP, 1600×1200 UXGA)
• FPC camera connector for easy camera module replacement
• Dual USB-C ports: one for power/programming, one for TTL serial
• Wi-Fi 802.11 b/g/n (2.4GHz) + Bluetooth 5.0 (BLE)
• 8MB Flash + 8MB PSRAM onboard
• RST and BOOT buttons for easy flashing
• Gold-plated pin headers on both sides (breadboard compatible)
• Supports Arduino IDE, ESP-IDF, MicroPython
• Compact black PCB with yellow pin headers

Specifications

• MCU: ESP32-S3 (dual-core LX7, up to 240MHz)
• Camera: OV2640 (2MP, up to UXGA 1600×1200)
• Flash: 8MB
• PSRAM: 8MB
• Wi-Fi: 802.11 b/g/n 2.4GHz
• Bluetooth: BT 5.0 / BLE
• USB: Dual USB-C (power + TTL)
• GPIO: Multiple GPIOs on both sides
• Programming: Arduino IDE / ESP-IDF / MicroPython
• Input Voltage: 5V via USB-C

Applications

• AI face detection and recognition
• IoT wireless camera and surveillance
• QR code and barcode scanning
• Image streaming over Wi-Fi
• Smart home automation with vision
• Robotics and drone vision systems

Package Includes

• 1 × ESP32-S3-CAM Development Board (with OV2640 camera attached)
