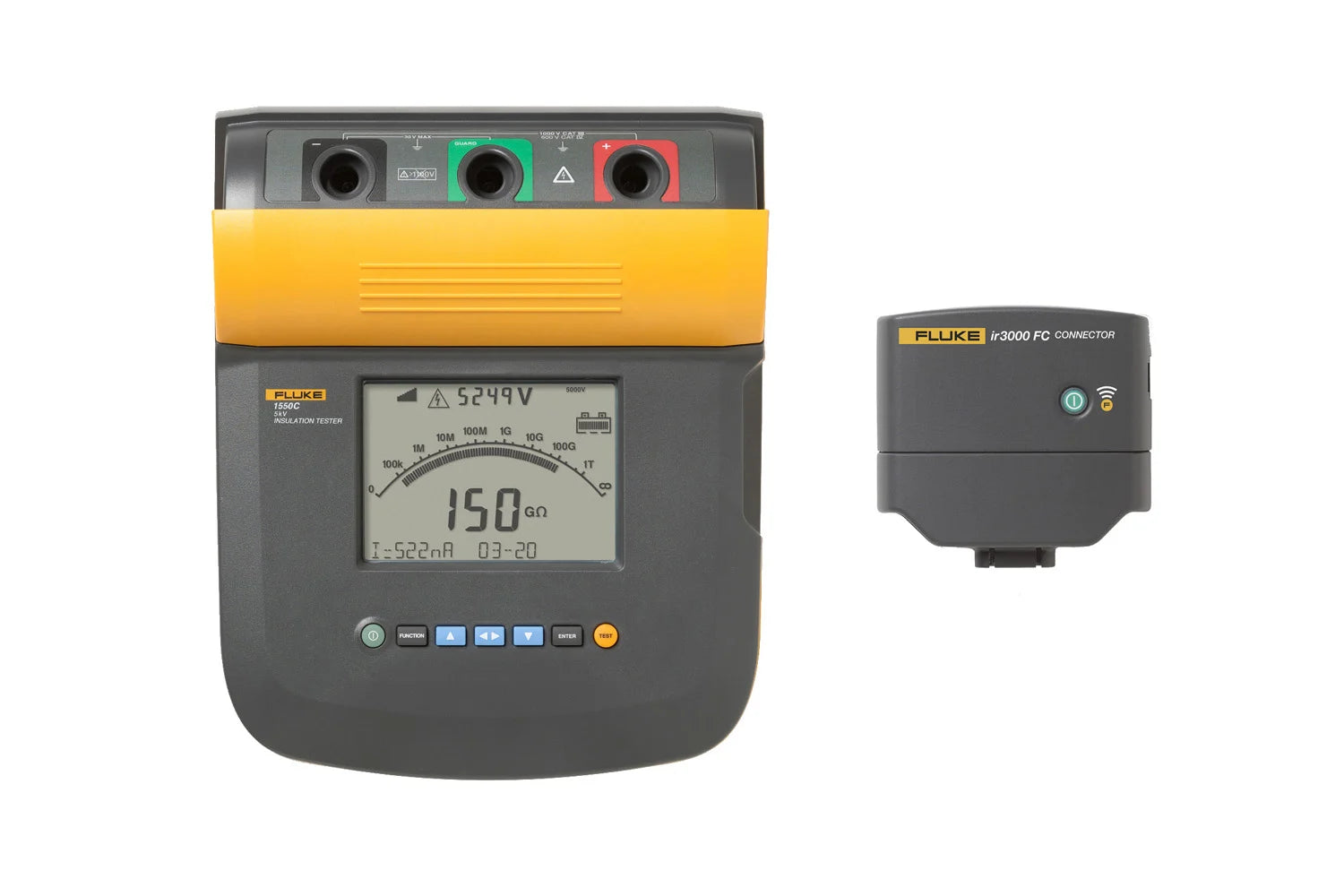

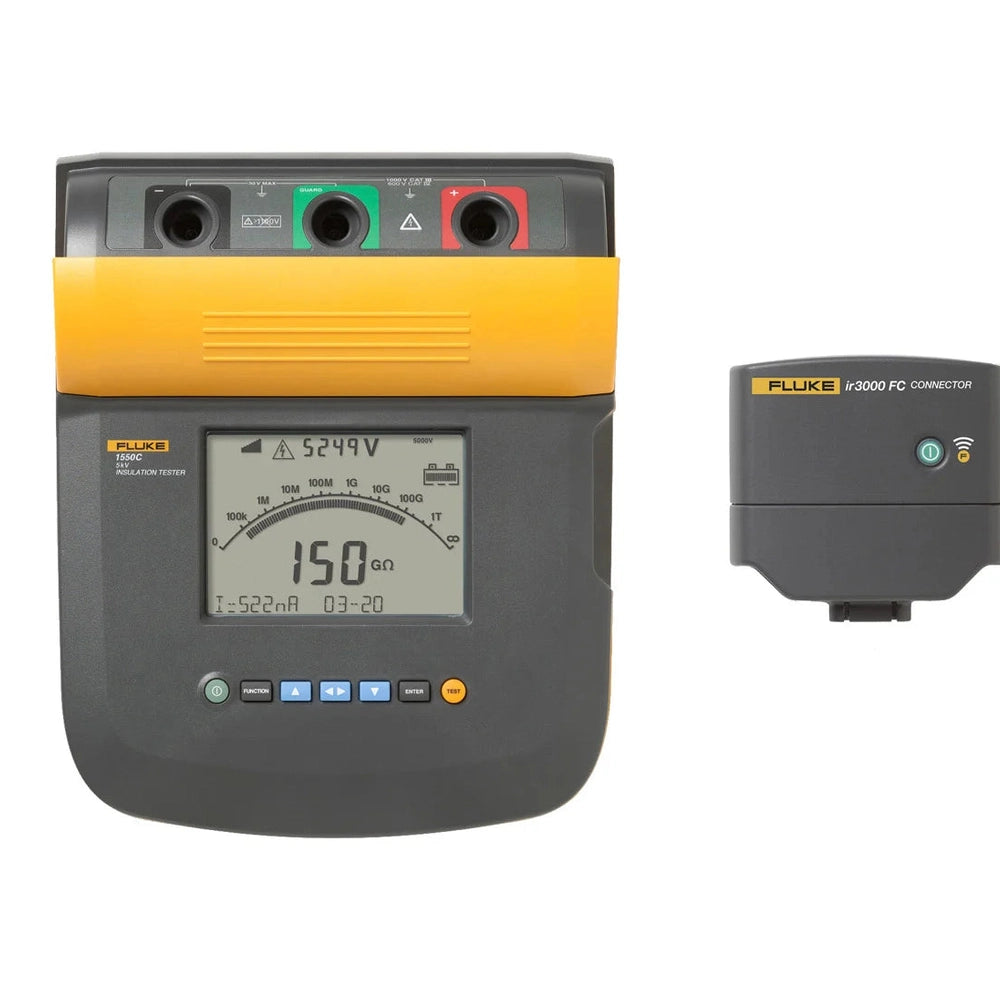

Fluke 1550C Insulation Resistance Tester – High Voltage 5 kV Digital Megohmmeter

Description

📖 Description
The Fluke 1550C Insulation Resistance Tester is a high-performance 5 kV digital megohmmeter designed for advanced insulation testing applications. ⚡📊 With a wide test voltage range, powerful memory functions, and rugged reliability, it is the ultimate tool for electrical engineers, maintenance professionals, and industrial testing environments.

Capable of testing insulation resistance up to 1 TΩ, the Fluke 1550C provides accurate and dependable results, making it ideal for testing motors, generators, transformers, switchgear, and cables.

🔧 Features
✅ Test voltages up to 5 kV for versatile insulation testing
✅ Insulation resistance measurement up to 1 TΩ
✅ Adjustable test voltages from 250 V to 5000 V (steps of 50 V)
✅ Large digital display with analog bar graph
✅ Automatic calculation of dielectric absorption ratio (DAR) & polarization index (PI)
✅ Ramp function for breakdown testing
✅ Data storage for up to 99 records
✅ Optical USB interface for PC connection
✅ Auto-discharge of capacitive voltage for added safety
✅ CAT IV 600 V safety rating

📊 Specifications
Brand: Fluke®
Model: 1550C
Insulation Resistance Range: Up to 1 TΩ
Test Voltages: 250 V – 5000 V (50 V increments)
Display: Large LCD with analog bar graph
Data Storage: Up to 99 measurements
PC Interface: Optical USB with FlukeView® software
Power: Rechargeable battery pack
Dimensions: 269 × 277 × 160 mm
Weight: ~3.5 kg
Safety Rating: CAT IV 600 V

🎯 Applications
✨ High-voltage insulation resistance testing
✨ Motors, generators, and transformers
✨ Switchgear and high-voltage cables
✨ Preventive and predictive maintenance
✨ Industrial and utility electrical inspections
