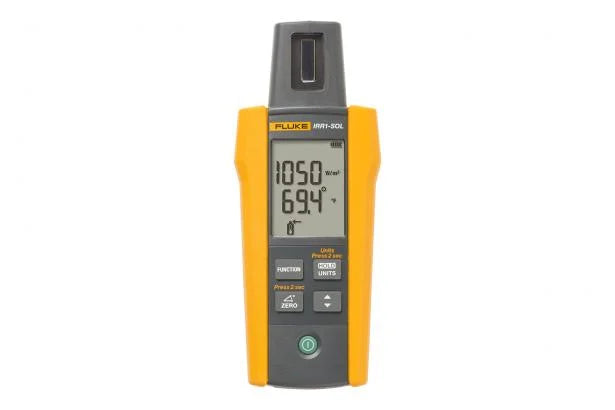

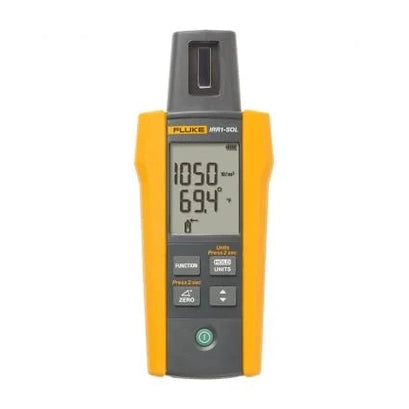

Fluke FLK-IRR1-SOL Solar Irradiance Meter – Professional PV Installation & Testing Tool

Description

📖 Description
The Fluke FLK-IRR1-SOL Solar Irradiance Meter is a dedicated tool designed for solar PV installation, commissioning, and maintenance. ☀️🔋 It provides quick and accurate measurements of irradiance, temperature, tilt, and compass orientation — all in one handheld device.

Trusted by solar professionals, this meter ensures compliance with IEC 62446-1 standards, making it essential for safe and efficient solar photovoltaic (PV) testing.

🔧 Features
✅ Measures solar irradiance up to 1400 W/m²
✅ Built-in thermometer for module & ambient temperature readings
✅ Tilt angle measurement for panel alignment
✅ Compass for solar array orientation
✅ Fast and accurate response time
✅ Complies with IEC 62446-1 testing standards
✅ Compact, rugged design for field use
✅ Large, easy-to-read display
✅ One-button operation for quick setup

📊 Specifications
Brand: Fluke®
Model: FLK-IRR1-SOL
Irradiance Range: 0 – 1400 W/m²
Temperature Range: –40 °C to +85 °C
Tilt Measurement: 0° – 90°
Compass: Integrated digital compass
Display: Backlit LCD
Dimensions: 160 × 85 × 35 mm
Weight: ~210 g
Power: 2 × AA batteries

🎯 Applications
✨ Solar PV installation & commissioning
✨ Irradiance measurement for performance testing
✨ Panel tilt & orientation optimization
✨ Preventive maintenance of solar arrays
✨ IEC 62446-1 compliance testing
