FR 1013D S 100MHz 2 CHANNEL OSCILLOSCOPE

✅ FR 1013D S – 100 MHz Handheld Tablet Oscilloscope (2 Channels)

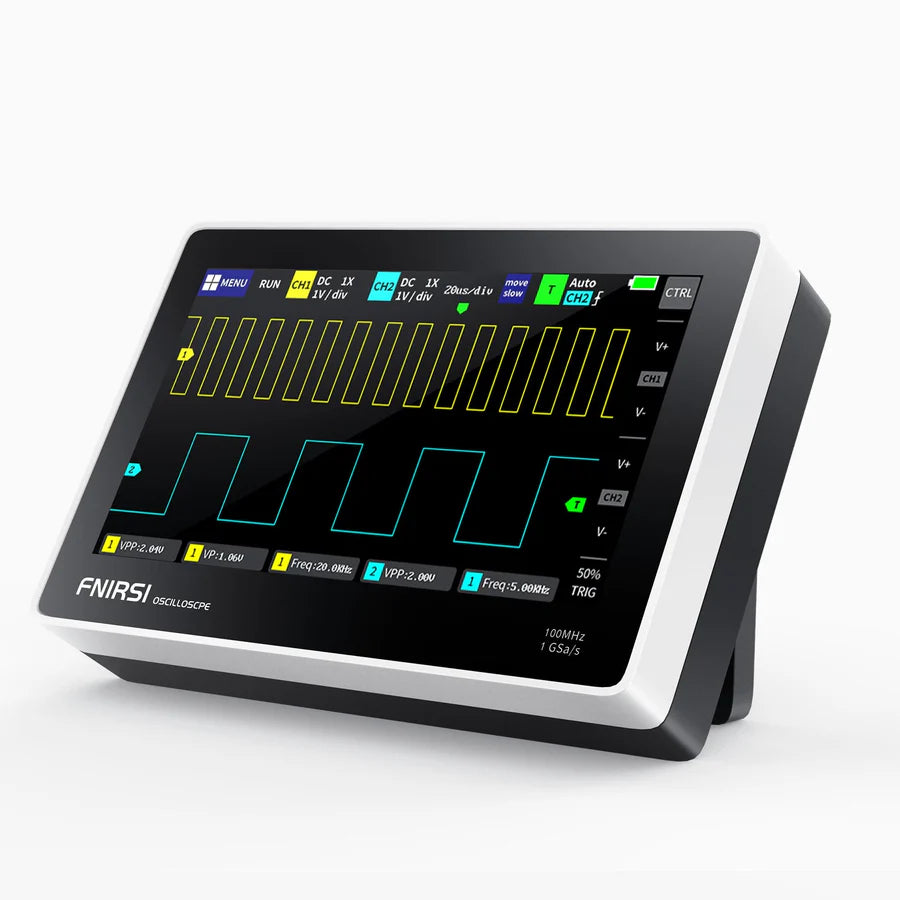

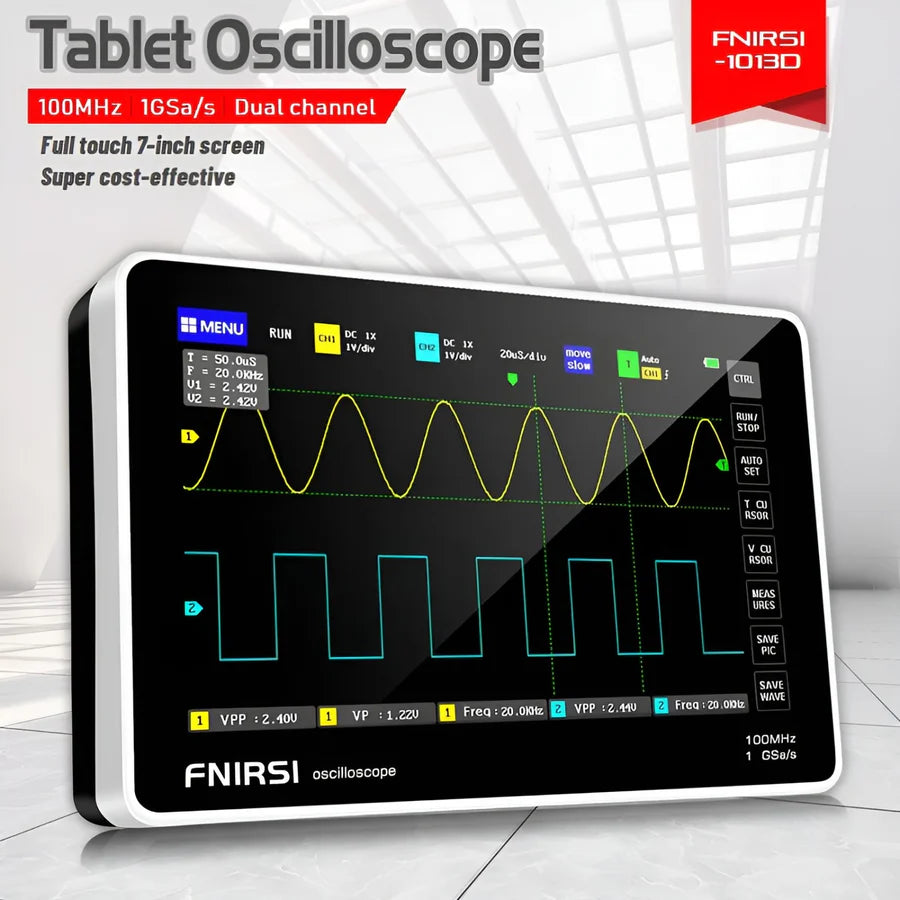

The FR 1013D S is a compact, two-channel handheld tablet oscilloscope featuring a vibrant 7″ touch-screen display, 100 MHz analog bandwidth, and real-time 1 GSa/s sampling rate. Its rugged build and touchscreen interface make it ideal for electronics troubleshooting, field maintenance, hobby projects, and educational use.

🔧 Key Features

✅ Analog Bandwidth: 100 MHz
⚡ Sampling Rate: 1 GSa/s real-time
📺 Touch-Screen Display: 7″ TFT LCD with 800×480 resolution
🧲 Dual Channels: Compare signals side-by-side with XY mode
🌩️ High-Voltage Protection: Tolerates ±400 V input
🎛️ Trigger Modes: Auto, Normal, Single
🔍 Built-In Auto Setup: One-click autofocus
📂 Mass Storage: Save up to 1,000 waveforms and screenshots
📈 Cursors & FFT: Measure frequency, time, Lissajous patterns, and signal harmonics
🔋 Battery Life: Large 6,000 mAh Li-ion battery, about 4 hours runtime

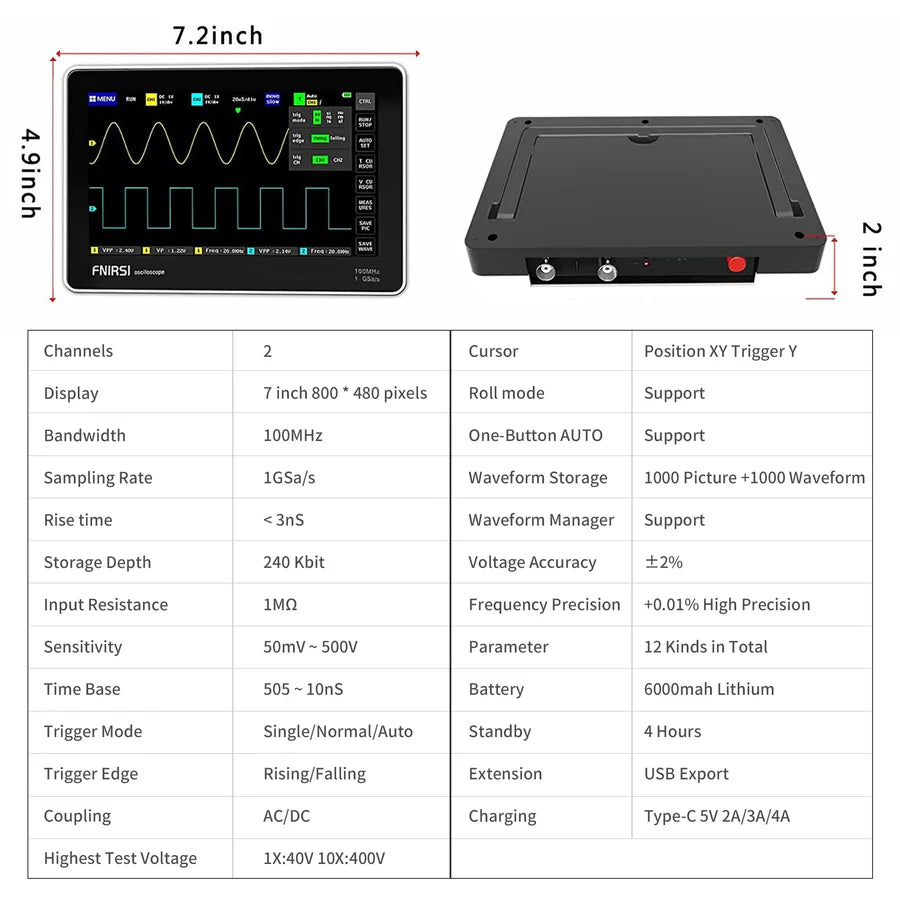

🔧 Technical Specs

📐 Channels: 2
⏱️ Rise Time: <3 ns
📏 Input Impedance: 1 MΩ ∥ 18 pF
⏳ Time Base Range: 10 ns/div – 50 s/div
🔋 Battery: 6,000 mAh, ~4 hours use, ~5 hours charge via USB‑C
📦 Dimensions: 184 × 124 × 50 mm
⚖️ Weight: ~650 g

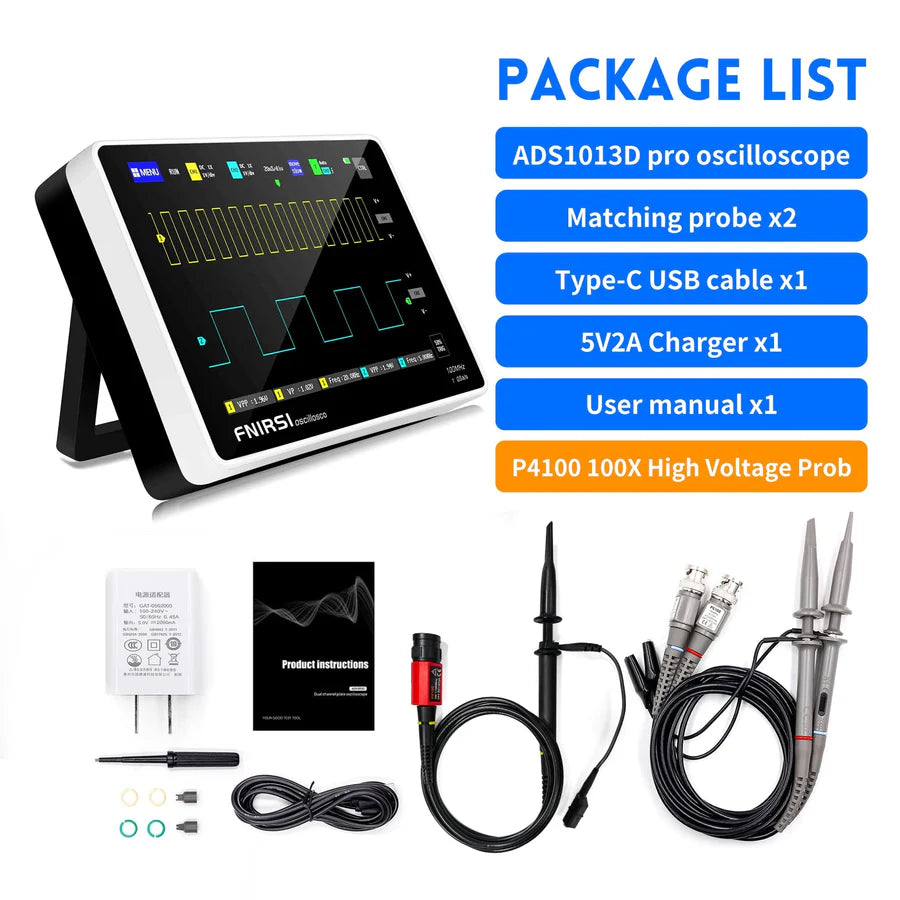

📦 Package Includes

📦 1x FR 1013D S Oscilloscope
🔌 2x 100 MHz Oscilloscope Probes (1× & 10×)
🔌 1x USB-C Charging Cable
📘 1x User Manual

🧠 Why Choose FR 1013D S?

Whether you're diagnosing electronics in the field, teaching lab work, or working on DIY embedded systems, this oscilloscope delivers desktop-grade features in a portable format. With touchscreen control, waveform storage, and powerful measurement tools, it’s built for flexibility and convenience.
