FR 1014D 100MHz 2 CHANNEL OSCILLOSCOPE

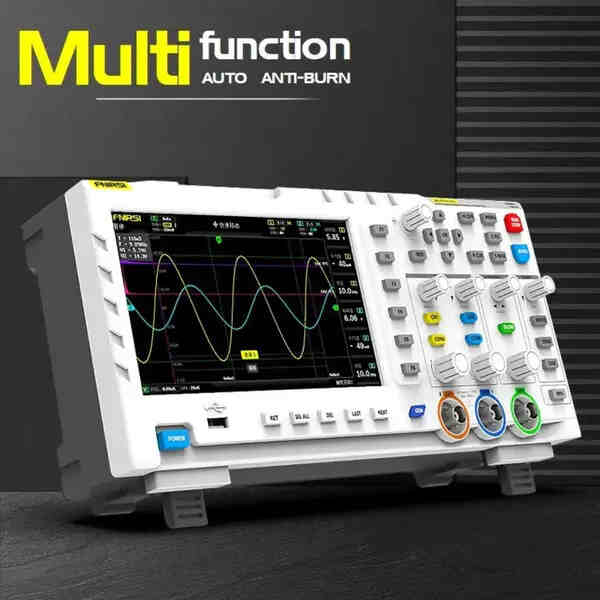

✅ FR 1014D – 100 MHz Dual‑Channel Digital Oscilloscope & DDS Generator

The FR 1014D is a powerful desktop-style digital oscilloscope with a built-in DDS signal generator. Featuring a 7″ color display, dual 100 MHz channels, and high-speed sampling, it’s ideal for electronics troubleshooting, audio work, DIY projects, and education.

🔧 Key Features

✅ Bandwidth: 100 MHz per channel
⚡ Sampling Rate: 1 GSa/s (real-time)
📊 Waveform Storage: 1,000 waveforms + 1,000 screenshots saved to internal 1 GB memory
🎛️ Signal Generator: DDS module with 14 standard waveforms + custom chopping signal (up to 10 MHz sine, 2 MHz others)
📺 Display: 7″ TFT LCD (800×480) with rubber-button interface
🔄 Trigger Modes: Auto, Normal, Single (supporting rising/falling edge)
📐 Measurements: Cursor tools, FFT, Lissajous mode, and automatic parameter readouts (Vpp, Vrms, freq, etc.)
🛡️ Input Protection: Up to ±400 V (with high-voltage probe)
🔁 Cursor & Roll Modes: For manual measurement and live signal tracking
🔌 USB Connectivity: Export screenshots and waveforms via USB storage

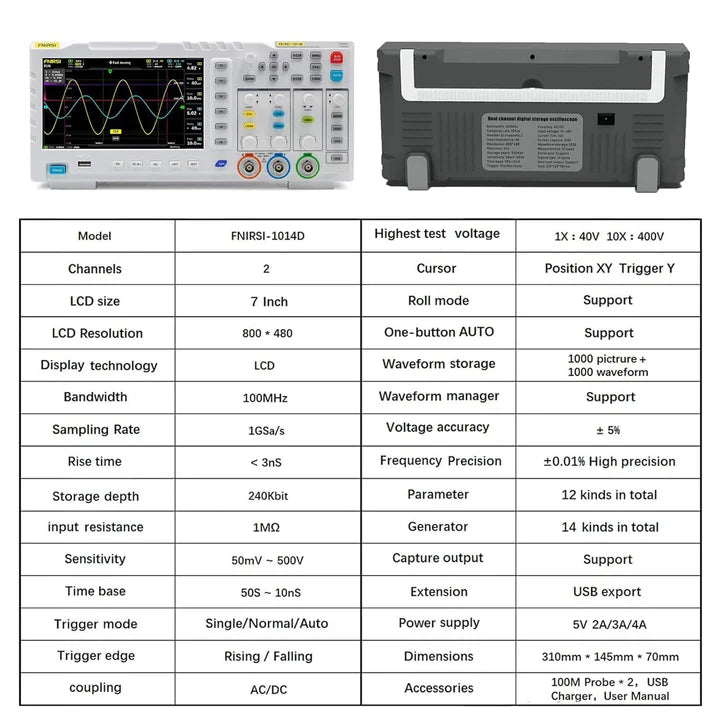

🔧 Technical Specs

📐 Channels: 2
📏 Storage Depth: 240 kbits
⏱️ Time Base: 50 s/div down to 10 ns/div
🎚️ Vertical Range: 50 mV/div – 500 V/div (with probe)
⚡ Rise Time: <3 ns
📶 Input Impedance: 1 MΩ ±70 pF
📦 Display Size: 7″ (800×480)
🔋 Power: USB 5 V, 2–4 A adapter
📐 Dimensions: 310 × 145 × 70 mm
⚖️ Weight: ~1.5 kg

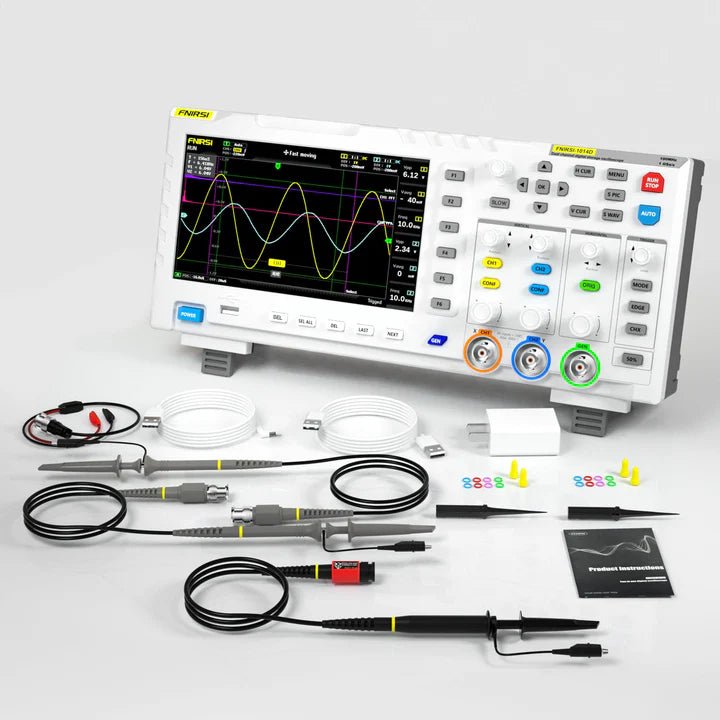

📦 Package Includes

📦 1× FR 1014D Oscilloscope
📦 2× 100 MHz Probes (switchable 1X/10X)
📦 1× 100X High-Voltage Probe
📦 1× USB Cable & Power Adapter
📦 1× BNC-to-Alligator Lead
📦 1× User Manual

🧠 Why Choose FR 1014D?

A budget-friendly, feature-rich oscilloscope with signal generation, storage, and advanced analysis tools. Ideal for hobbyists, engineers, and students—especially for electronics repair, audio work, and development labs.
