FR 1C15 110MHz SINGLE CHANNEL OSCILLOSCOPE

✅ FR 1C15 – 110 MHz Handheld Oscilloscope (Single-Channel)

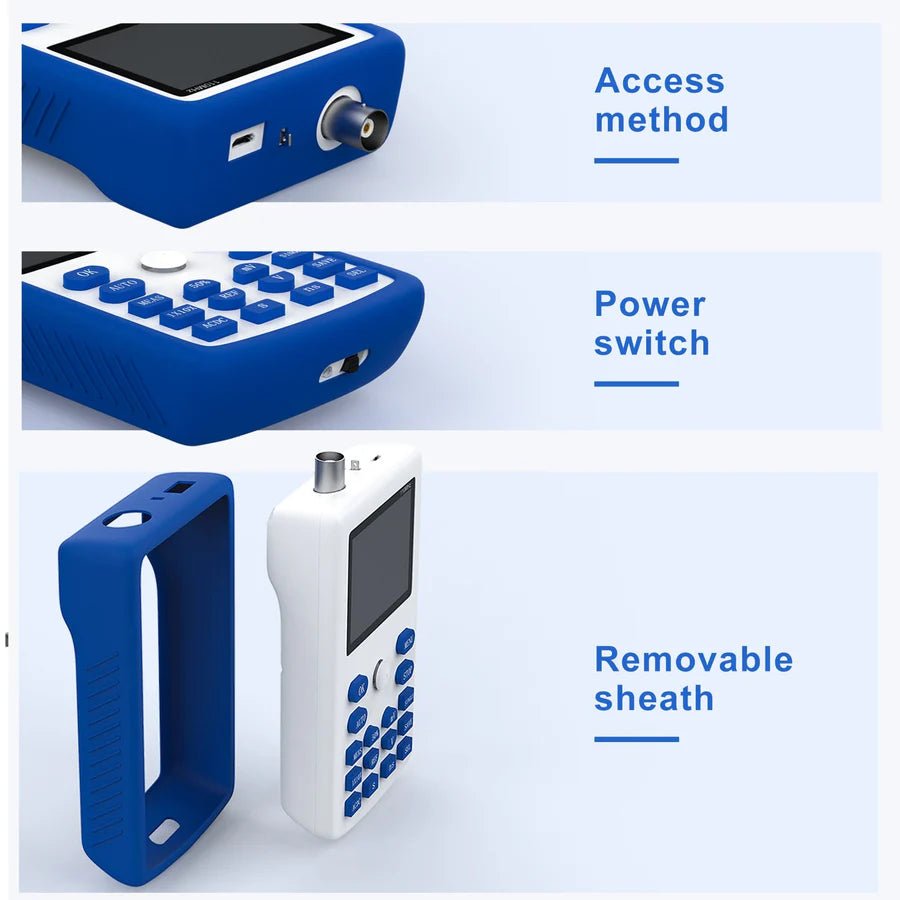

The FR 1C15 is a robust handheld oscilloscope with a 110 MHz analog bandwidth and 500 MS/s real-time sampling. Encased in a rugged silicone sleeve with a joystick for easy control, it delivers desktop-like performance in a compact, portable form—ideal for field work, education, and electronics troubleshooting amazon.com+13fnirsi.com+13fnirsi.com+13.

🔧 Key Features

✅ Analog Bandwidth: 110 MHz
✅ Sampling Rate: 500 MS/s real time
✅ Memory Depth: 12 kpts
✅ Input Protection: ±400 V with high-voltage probe
✅ One-Key AUTO Function: Instantly optimizes waveform display amazon.comfnirsi.com+3eleshop.eu+3amazon.com+3abra-electronics.com
✅ Display & Controls: 2.4″ color LCD, joystick navigation, silicone buttons, anti-slip sleeve
✅ Waveform Modes: Includes persistence, scroll, and 1 kHz self-test square wave fnirsi.com+15fnirsi.com+15amazon.com+15

🔧 Technical Specs

📐 Channels: 1
⏱️ Rise Time: <3 ns
📏 Time Base Range: 5 ns – 10 s/div
📊 Vertical Sensitivity: 20 mV/div – 100 V/div
📺 Display: 2.4″, 320×240 resolution
🔋 Battery: 3000 mAh (~10 h runtime, USB recharge) fnirsi.com+8eleshop.eu+8amazon.com+8amazon.com+5fnirsi.com+5eleshop.eu+5
🔌 Input Impedance: 1 MΩ ∥ ~18 pF
📐 Dimensions: ~130 × 76 × 27 mm; Weight: ~206 g eleshop.eu+1abra-electronics.com+1

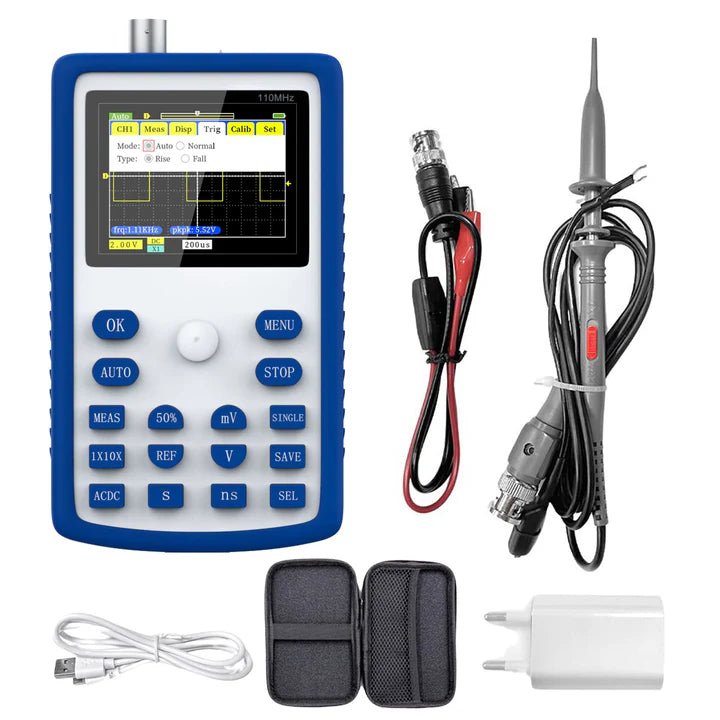

📦 Package Includes

📦 1× FR 1C15 Handheld Oscilloscope
📦 1× 100 MHz P6100 Probe (1×/10× switchable)
📦 1× High‑Voltage Probe
📦 1× Calibration Cable & USB Charging Cable
📦 1× User Manual

🧠 Why Choose FR 1C15?

It offers exceptional value with high-performance specs—110 MHz bandwidth, 500 MS/s sampling, and pro features like persistence and joystick control. Rugged and pocketable, it suits both field use and educational settings.
