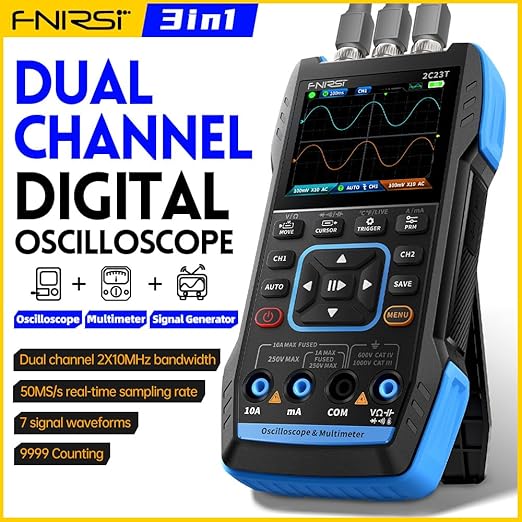

✅ FR 2C23T S – 10 MHz Handheld 3‑in‑1 Oscilloscope, Multimeter & Signal Generator
The FR 2C23T S is a compact, feature-packed handheld instrument that combines:
a 10 MHz dual-channel oscilloscope,
a 4.5-digit multimeter,
a DDS signal generator.
It’s perfect for hobbyists, electronics students, field engineers, and DIY enthusiasts who need a versatile, portable test tool.
🔧 Key Features
🎯 Oscilloscope Mode
✅ 10 MHz bandwidth, 50 MS/s sampling rate
✅ 32 kpts memory depth
✅ ≈±400 V input protection
✅ Auto/Normal/Single trigger modes
✅ Channel modes: YT, persistence, XY, FFT
✅ Save/compare waveforms via USB-C
📊 Multimeter Mode
✅ 4.5-digit, 10,000 counts
✅ Measures: DC/AC voltage up to 750 V, current up to 9.999 A, resistance, capacitance, diode, continuity
✅ True-RMS for accurate readings
🧩 Signal Generator Mode
✅ Single-channel DDS generator
✅ 1 Hz–2 MHz frequency, 1 Hz steps
✅ Outputs 7 waveforms: sine, square, triangle, full/half wave, noise, DC
✅ Adjustable amplitude (0.1–3.3 Vpp) and duty cycle
🛡️ Design & Convenience
✅ FPGA + MCU + ADC architecture for reliable signal processing
✅ 2.8″ 320×240 color LCD for clear visuals
✅ Durable build—rubber corner bumpers & high-voltage protection
✅ 3000 mAh Li-ion battery for up to 6 h runtime; USB-C charging
✅ Compact size (~167×89×35 mm) and light weight (~300 g)

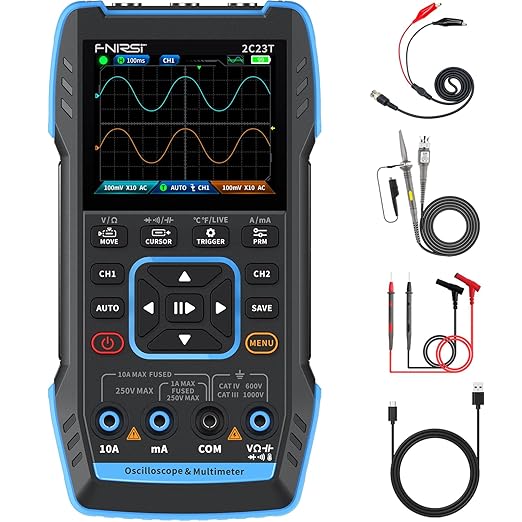

📦 Package Includes
📦 1× FR 2C23T S 3‑in‑1 Instrument
📦 2× 10 MHz Oscilloscope Probes
📦 1× Multimeter Test Leads
📦 1× BNC-to-Alligator Clip Cable
📦 1× USB-C Charging Cable
📦 1× Carrying Pouch or Case
📦 1× User Manual
🧠 Why Choose FR 2C23T S?
This all-in-one tool saves you from carrying multiple devices. Perfect for quick diagnostics, teaching, lab work, and field repairs. It delivers oscilloscope, DMM, and signal generator capabilities in a rugged, portable design—ideal for tech enthusiasts and professionals alike.
