FR 2C53P 50MHz 2 CHANNEL 3 IN 1 OSCILLOSCOPE 30000 FR

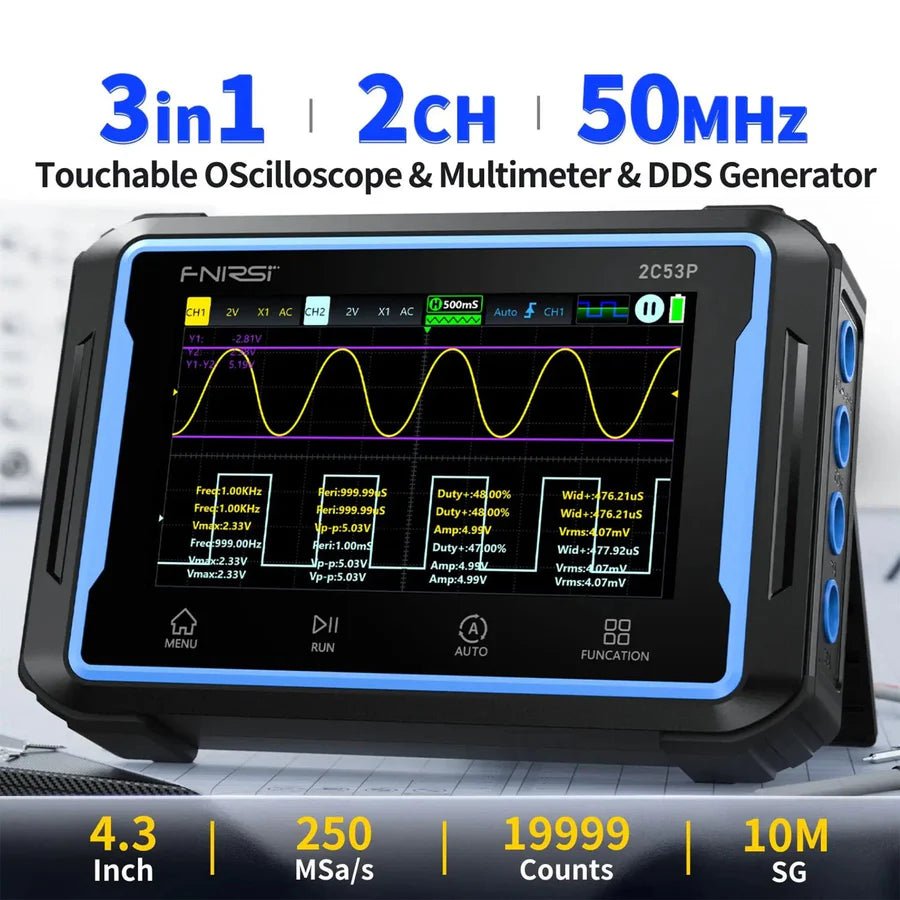

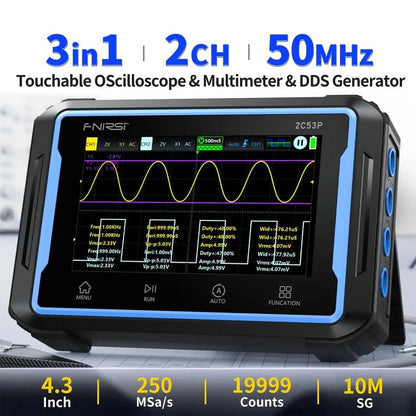

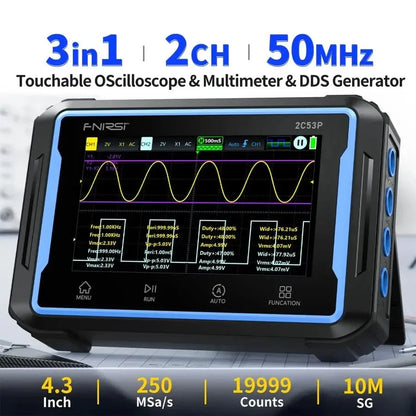

✅ FR 2C53P – 50 MHz 2‑Channel Tablet Oscilloscope + Multimeter + DDS Generator
The FR 2C53P is a powerful 3-in-1 handheld instrument featuring a 50 MHz dual-channel oscilloscope, a high-precision multimeter, and a DDS signal generator — all built into a rugged, touchscreen tablet. Ideal for electronics repair, field diagnostics, automotive troubleshooting, and educational labs.

🔧 Key Features

✅ Oscilloscope
• Bandwidth: 50 MHz
• Sampling Rate: 250 MS/s
• Storage Depth: 64 kB
• Max Input Voltage: ±400 V (with HV probe)
• 4.3″ IPS Touch Display (480×272)

✅ Multimeter (DMM)
• 19,999-count True-RMS accuracy
• Measures: DC/AC Voltage (up to 1000 V), Current, Resistance, Capacitance, Diode, Continuity, Temperature

✅ DDS Signal Generator
• Waveforms: Sine, Square, Triangle, Sawtooth, PWM & more (12 types)
• Max Frequency: 10 MHz (sine), ~5 MHz (others)
• Amplitude: 0.1 – 3 Vpp (adjustable)
• PWM Duty Cycle Control

✅ Advanced Modes
• Auto / Normal / Single Trigger
• XY Mode, FFT, Cursor Measurement
• One-Touch AUTO Setup
• Automotive Compatibility & Min/Max Capture (Multimeter)

✅ Build & Power
• 4000 mAh Battery (~4 hours runtime)
• USB-C Charging (5V/2A)
• Rugged Casing + Fold-Out Stand

📊 Technical Specifications
• Channels: 2
• Probe Input: 1 MΩ ∥ 18 pF
• Time Base Range: 10 ns – 10 s/div
• Storage Depth: 64 kB
• Voltage Range: ±400 V
• Display: 4.3″ IPS Touchscreen (480×272)
• Battery: 4000 mAh
• Charging: USB‑C (5V 2A)
• Dimensions: 145×98×35 mm
• Weight: ~360 g

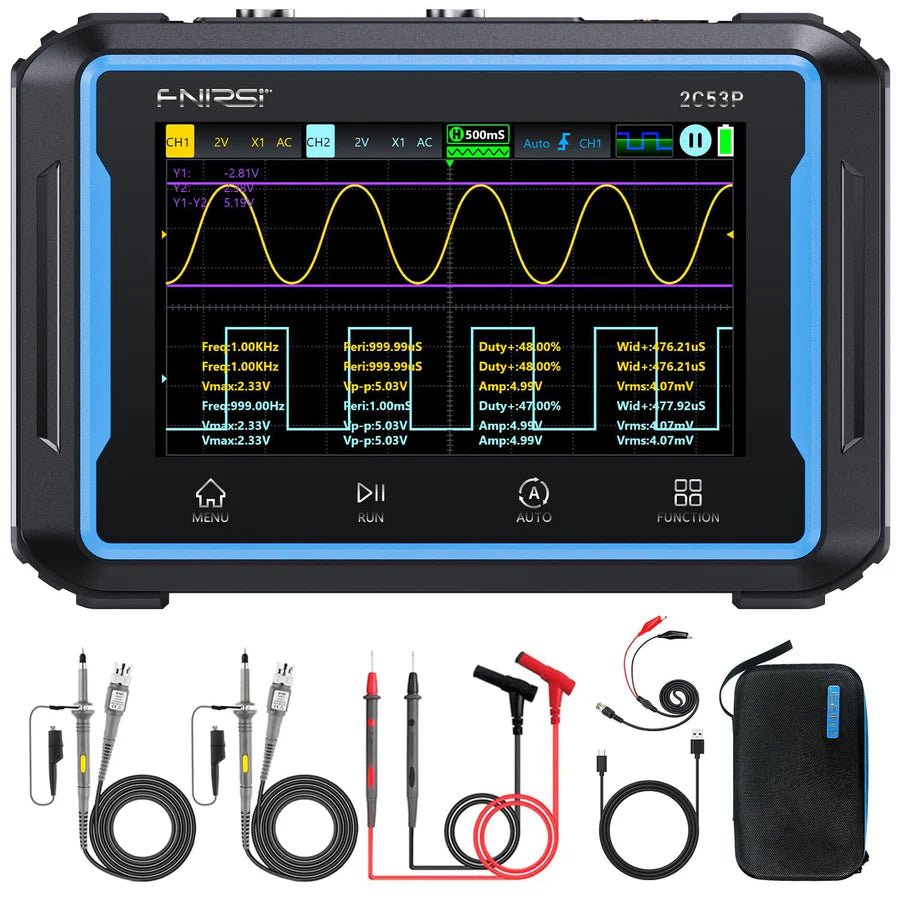

📦 Package Includes
• 1× FR 2C53P Tablet Unit
• 2× 100 MHz P6100 Oscilloscope Probes (1×/10× switchable)
• 1× High-Voltage Probe
• 1× Multimeter Test Leads
• 1× USB‑C Charging Cable
• 1× BNC to Alligator Clip Cable
• 1× User Manual
• 1× Carrying Case

🧠 Why Choose the FR 2C53P?
It delivers the power of bench instruments in a single portable touchscreen device — combining oscilloscope, multimeter, and signal generator. Perfect for engineers, students, automotive technicians, and electronics hobbyists.
