FR 2C53T S 50MHz 2 CHANNEL 3 IN 1 OSCILLOSCOPE

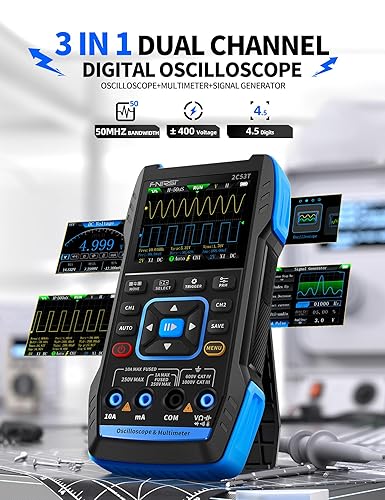

✅ FR 2C53T S – 50 MHz Handheld 3‑in‑1 Oscilloscope, Multimeter & Signal Generator

The FR 2C53T S is a compact, versatile handheld instrument combining a 50 MHz dual-channel oscilloscope, 4.5-digit multimeter, and DDS signal generator—perfect for DIY electronics, field diagnostics, education, and professional use reddit.com+15elektormagazine.com+15rees52.com+15youtube.com+1youtube.com+1.

🔧 Key Features

✅ Oscilloscope
• 50 MHz bandwidth, 250 MS/s sampling rate
• 1 kpts record depth, ±400 V input protection
• Vertical scale: 10 mV–10 V/div, supports waveform saving/export
• Advanced modes: Math operations, cursor measurements, persistence, FFT, XY mode

✅ Multimeter
• True-RMS, 4.5-digit (up to 19,999 counts)
• Measures DC/AC voltage (to 999.9 V/750 V), current (to 9.999 A), resistance, capacitance, continuity, diode.

✅ Signal Generator
• DDS generator with 13 waveform types
• Output frequency: up to 50 kHz (1 Hz steps), amplitude ~3 Vpp, adjustable duty cycle

🔧 Technical Specs

📐 Channels: 2
⏱️ Oscilloscope Digits: Persistence, FFT, cursor, math
📶 Input Impedance: 1 MΩ ∥ 18 pF
📊 Memory Depth: 1 kpts
📺 Display: 2.8″ 320×240 color LCD
🔋 Battery: 3000 mAh lithium (≈6 h runtime), USB-C charging
📦 Size: ~167 × 89 × 35 mm; Weight: ~300 g

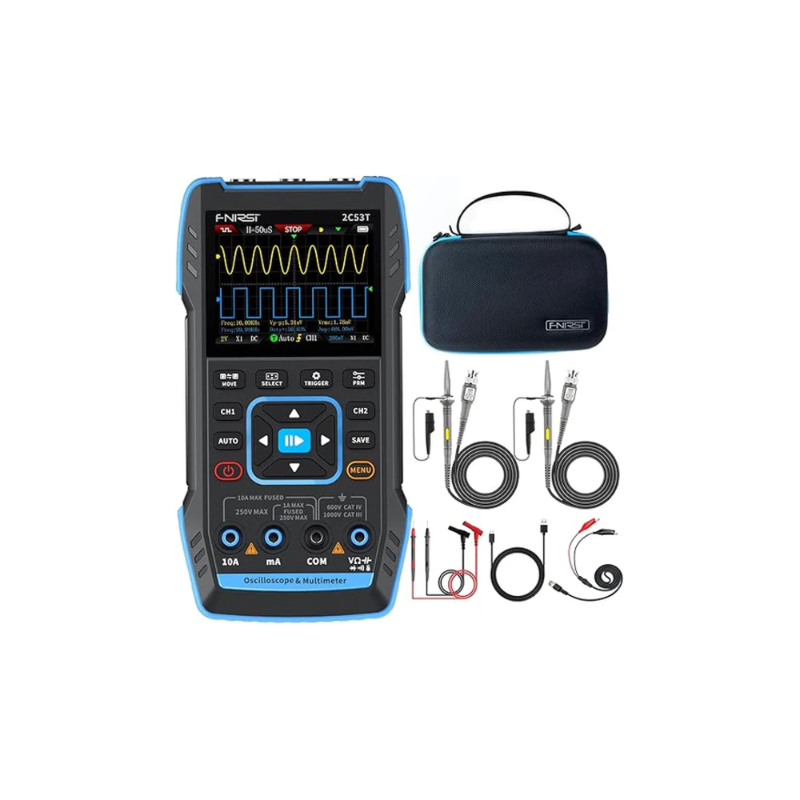

📦 Package Includes

📦 1x FR 2C53T 3‑in‑1 Handheld Instrument
📦 2x 50 MHz/BNC Oscilloscope Probes
📦 1x Multimeter Test Leads
📦 1x BNC-to-Test Clip Cable
📦 1x USB-C Charging Cable
📦 1x Carrying Case
📦 1x User Manual ebay.com+15elektormagazine.com+15rees52.com+15elektor.com

🧠 Why Choose FR 2C53T S?

Ideal for those needing a portable lab in a pocket—combining oscilloscope, multimeter, and generator in one affordable, rugged unit. Perfect for electronics development, diagnostics, education, and field repairs on-the-go.
