FR DSO153 1MHz SINGLE CHANNEL OSCILLOSCOPE

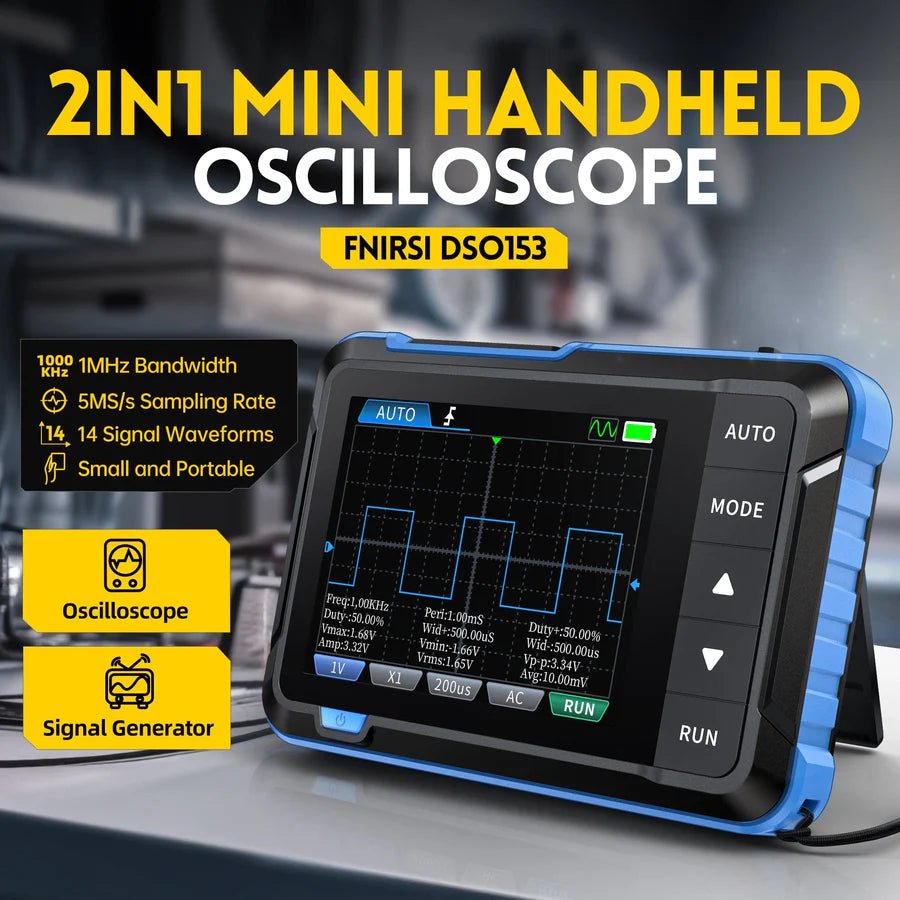

✅ FR DSO153 – 1 MHz Handheld Oscilloscope & DDS Signal Generator

The FR DSO153 is a compact, 2-in-1 handheld oscilloscope featuring a 1 MHz bandwidth, 5 MS/s sampling rate, and a built-in DDS signal generator. Ideal for hobbyists, field troubleshooting, and embedded projects—offering great value in a portable package. eleshop.eu+8amazon.com+8amazon.com+8

🔧 Key Features

✅ Analog Bandwidth: 1 MHz
✅ Sampling Rate: 5 MS/s real-time
✅ Voltage Range:
• X1: ±40 V (80 Vpp)
• X10: ±400 V (800 Vpp)
✅ Display: 2.8″ TFT LCD, 320×240 resolution
✅ Trigger Modes: Auto, Normal, Single
✅ Waveform Generator:
• 14 waveforms (sine, square, triangle, noise & more)
• Frequency range: 0–10 kHz
• Amplitude: 0.1–3.3 Vpp amazon.com+1eleshop.eu+1elektor.comamazon.com+5fnirsi.com+5elektor.com+5eleshop.eu+2amazon.com+2fnirsi.com+2eleshop.eu
✅ One-Key AUTO Setup: Quickly calibrates and displays signal fnirsi.com+1amazon.com+1
✅ High Voltage Protection: Handles ±400 V input safely with probe

🔧 Technical Specs

📐 Channels: 1
⏱️ Time Base Range: 500 ns – 20 s/div
🎚️ Vertical Sensitivity: 10 mV/div – 20 V/div
⚡ Input Impedance: 1 MΩ ∥ ~18 pF
🔋 Battery: 1000 mAh Li-ion (~4 h runtime)
🔌 Charging: USB‑C, 5 V / 1 A
📦 Size: 99 × 68.3 × 19.5 mm
⚖️ Weight: ~100 g amazon.com+1fnirsi.com+1fnirsi.com+4eleshop.eu+4elektor.com+4amazon.com+2elektor.com+2fnirsi.com+2

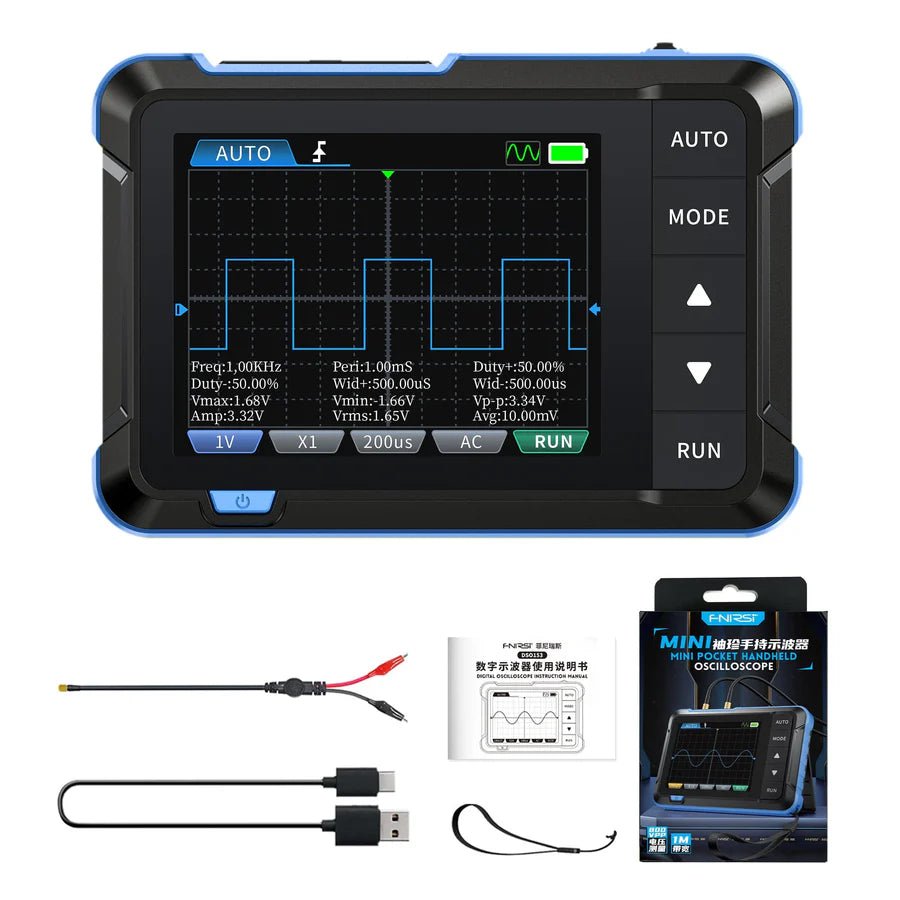

📦 Package Includes

📦 1× FR DSO153 Oscilloscope
📦 1× P6100 100 MHz Probe (1×/10× switchable)
📦 1× Alligator-Clip Probe
📦 1× USB‑C Charging Cable
📦 1× MCX-to-BNC Adapter
📦 1× Lanyard
📘 1× User Manual fnirsi.com+12eleshop.eu+12amazon.com+12amazon.com

🧠 Why Choose FR DSO153?

An excellent starter oscilloscope, it’s praised for its affordability and portability. Though not ultra-precise, it's "good enough" for most low-voltage hobbyist and education projects. Popular with beginners as a practical introduction to electronics testing.
