FR DSO510 10MHz 2 IN 1 SINGLE CHANNEL OSCILLOSCOPE

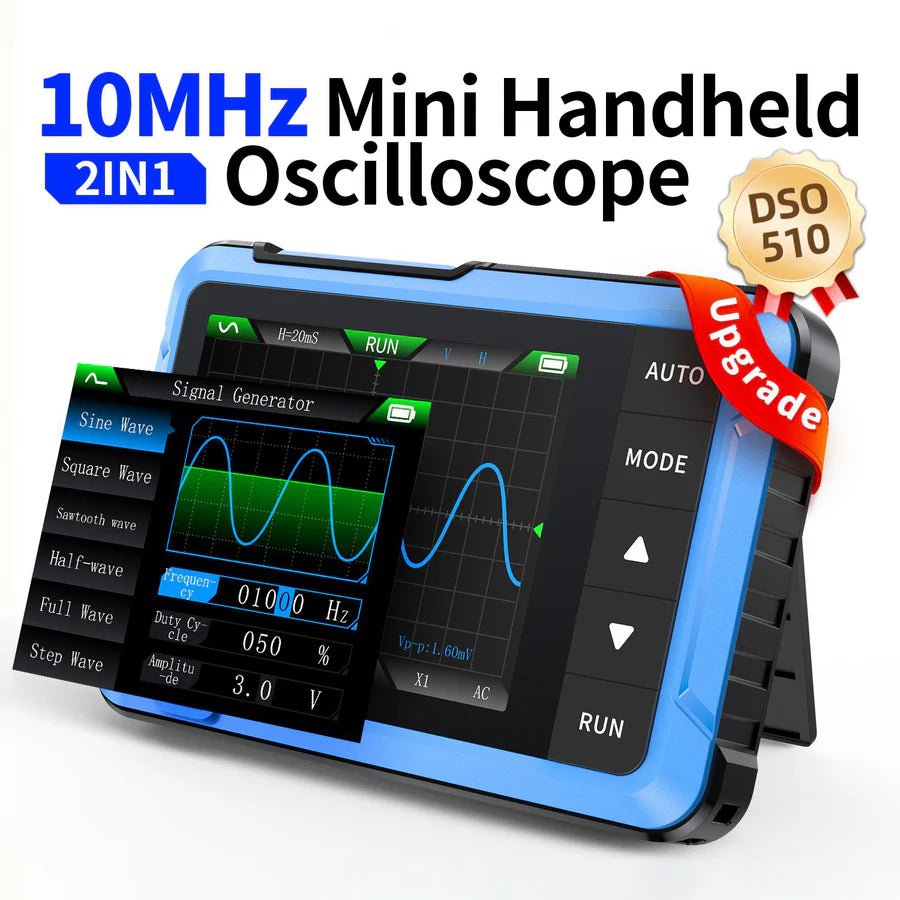

✅ FR DSO510 – 10 MHz Handheld Oscilloscope & DDS Signal Generator

The FR DSO510 is a versatile 2-in-1 handheld oscilloscope combining a 10 MHz bandwidth, 48 MS/s sampling rate, and a built-in DDS signal generator. Compact yet powerful, it’s perfect for field diagnostics, hobby electronics, automotive use, and educational labs. reddit.com+10fnirsi.com+10amazon.ca+10

🔧 Key Features

✅ Analog Bandwidth: 10 MHz
✅ Sampling Rate: 48 MS/s real-time
✅ Signal Generator: 13 waveforms (sine, square, triangle, pulse, noise…), up to 50 kHz freq, amplitude ~0.1–3 V pp fnirsi.comfnirsi.com
✅ Trigger Modes: Auto, Normal, and Single for flexible signal capture fnirsi.com+3fnirsi.com+3alibaba.com+3
✅ Display: 2.8″ TFT LCD, 320×240 resolution
✅ High-Voltage Tolerance: ±400 V input protection amazon.ca+9fnirsi.com+9walmart.ca+9
✅ One-Key AUTO Setup: Automatic scaling and waveform calibration alibaba.com+2fnirsi.com+2amazon.com+2

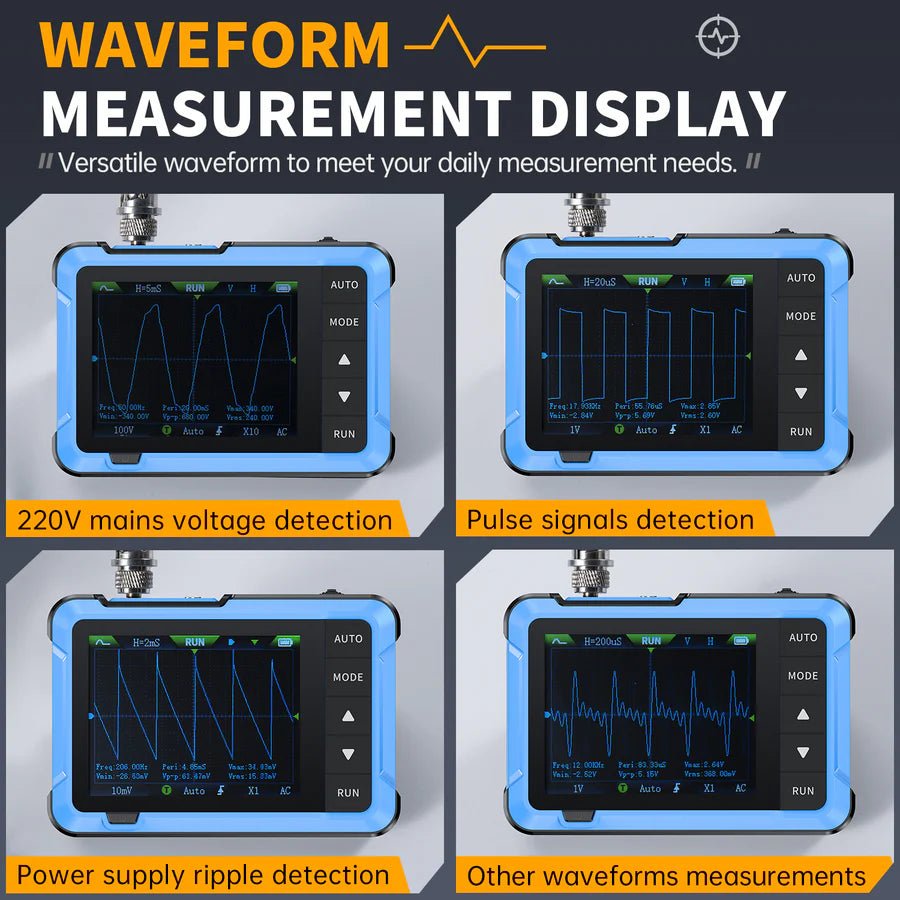

✅ Waveform Effects: Persistence (afterglow) mode, storage and export via USB

🔧 Technical Specs

📐 Channels: 1
⏱️ Time Base Range: 50 ns/div – 20 s/div
🎚️ Vertical Sensitivity: 10 mV/div – 20 V/div
📏 Input Impedance: 1 MΩ ∥ ~18 pF
📊 Voltage Range:
• X1 probe: ±40 V (80 V pp)
• X10 probe: ±400 V (800 V pp)
🔋 Battery: 1000 mAh Li-ion (~4 h runtime)
🔌 Charging: USB‑C (5 V / 1 A)
📦 Size: 99 × 68 × 19.5 mm
⚖️ Weight: ~104 g amazon.com+3fnirsi.com+3alibaba.com+3

📦 Package Includes

📦 1× FR DSO510 Oscilloscope
📦 1× P6100 100 MHz Probe (1×/10× switchable)
📦 1× Alligator-clip Probe
📦 1× USB‑C Charging Cable
📦 1× MCX-to-BNC Adapter (depending on version)
📘 1× User Manual

🧠 Why Choose FR DSO510?

This compact oscilloscope is a budget-friendly yet capable tool, delivering portable precision and waveform generation at an unbeatable price. Ideal for hobbyists, automotive diagnostics, students, and makers who need a reliable instrument on the go. Despite its price, it offers solid performance with real-world value. reddit.com+15martview.com+15youtube.com+15reddit.com
