FR DSOTC3 H 500KHz SINGLE CHANNEL 3 IN 1 OSCILLOSCOPE

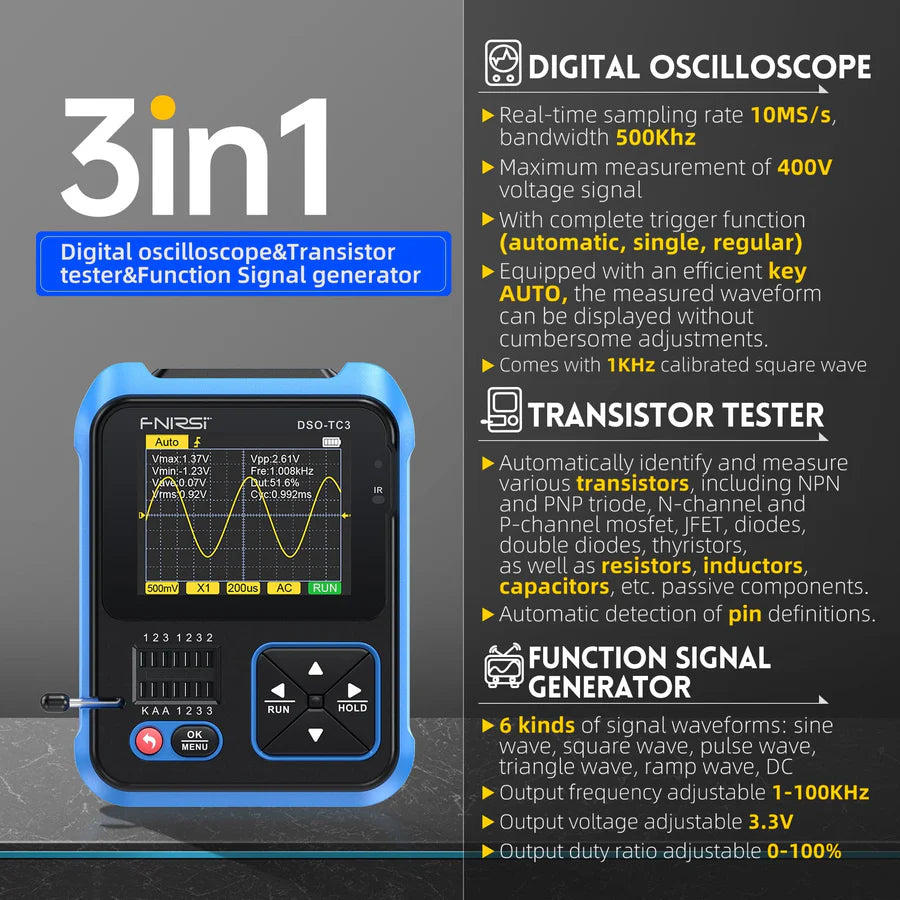

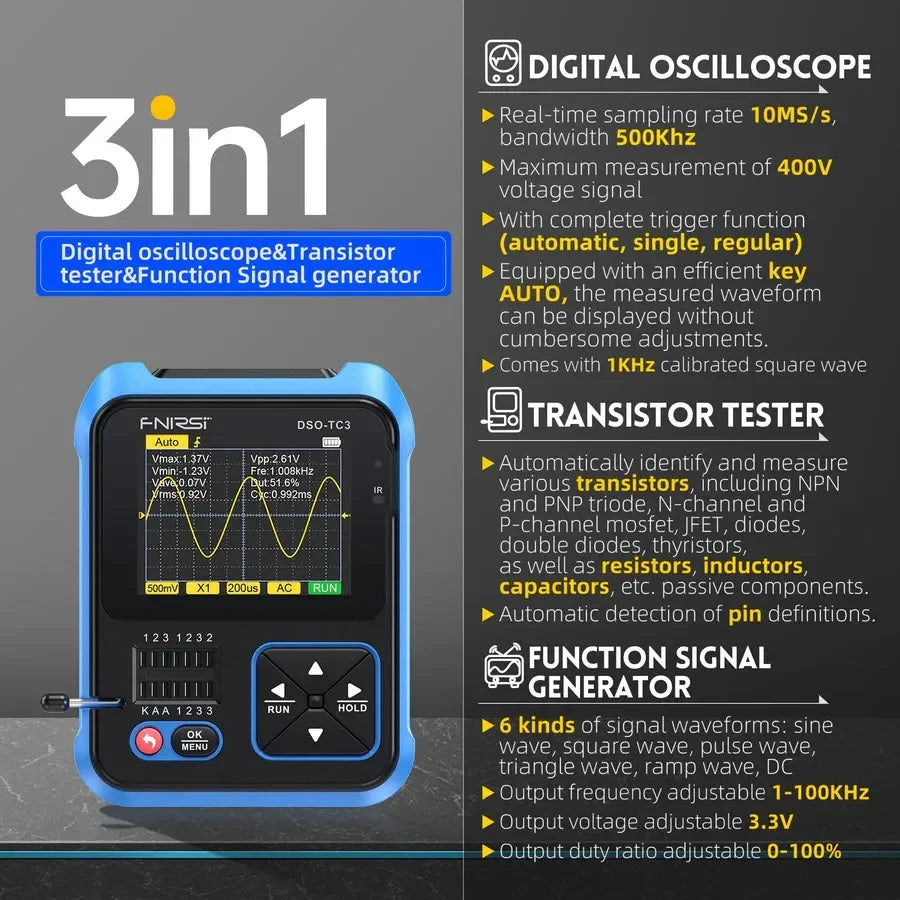

✅ FR DSO‑TC3 H – 500 kHz Single‑Channel Handheld 3‑in‑1 Oscilloscope

The FR DSO‑TC3 H is a compact handheld device that combines a 500 kHz oscilloscope, DDS signal generator, and component tester into one portable instrument. Ideal for hobbyists, field techs, and embedded developers looking for versatility in a budget-friendly package. ebay.com+14fnirsi.com+14vallder.com+14

🔧 Key Features

✅ Oscilloscope
• Bandwidth: 500 kHz
• Sampling Rate: 10 MS/s real-time
• Input Range: up to ±400 V with included probe
• Trigger Modes: Auto, Normal, Single
• One-Key AUTO setup for instant waveform display elektormagazine.com+9fnirsi.com+9amazon.com+9zeusbtc.com+7elektor.com+7eleshop.eu+7

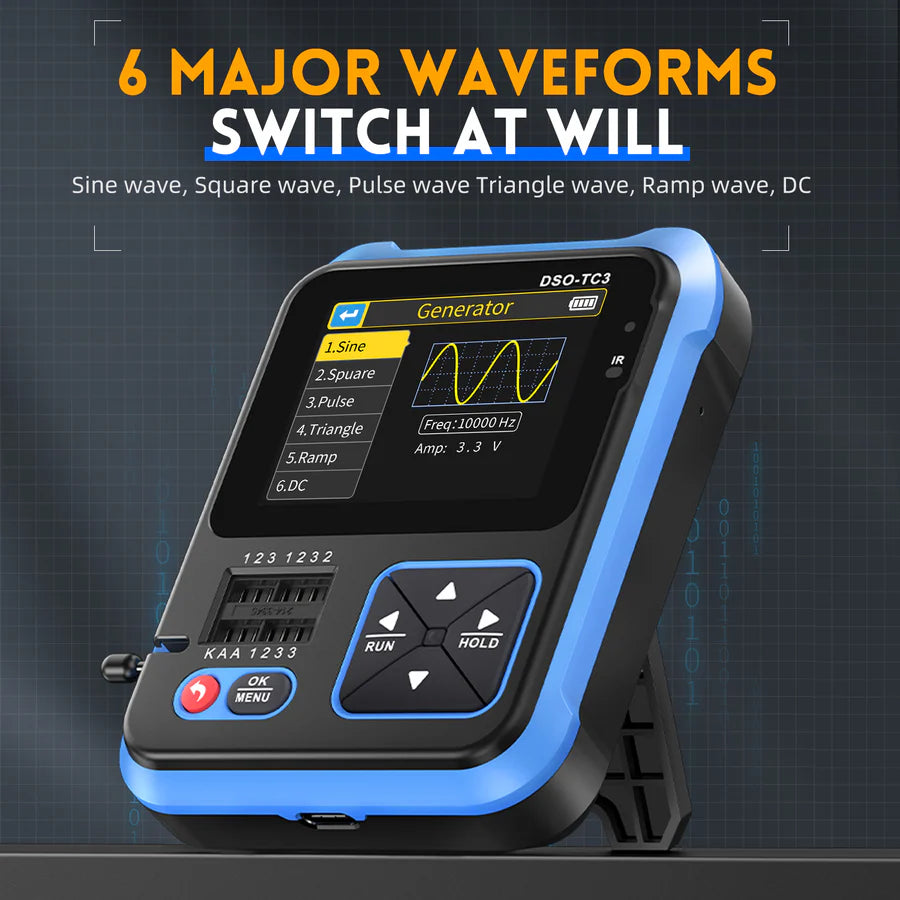

✅ Signal Generator
• Outputs 6 waveforms: sine, square, pulse, triangle, ramp, DC
• Frequency Range: 1 Hz – 100 kHz
• Amplitude: Up to ~3.3 Vpp, duty adjustable eleshop.eu+8elektor.com+8newegg.com+8

✅ Component Tester & Tools
• Automatically identifies transistors (NPN, PNP, MOSFET), diodes, resistors, capacitors, inductors
• Tests continuity, voltage (0–40 V), PWM, IR decoding (e.g. NEC protocol) youtube.com+14elektor.com+14ebay.com+14

🔧 Technical Specs

📐 Bandwidth: 500 kHz
🕒 Sampling Rate: 10 MS/s real-time
📏 Input Impedance: 1 MΩ ∥ 18 pF
⚡ Max Input Voltage: ±400 V (with probe)
📺 Display: 2.4″ color TFT
🔋 Battery: ~1500 mAh Li-ion (~6 h use)
🔌 Charging: USB-C
📦 Size: ~103 × 79 × 31 mm
⚖️ Weight: ~128 g scaledepot.com+9eleshop.eu+9elektor.com+9zeusbtc.com+1newegg.com+1

📦 Package Includes

📦 1× DSO‑TC3 H 3‑in‑1 Instrument
📦 1× P6100 (100 MHz) Probe
📦 3× Test Hooks
📦 1× USB‑C Charging Cable
📦 1× User Manual
📦 Optional accessories depending on version

🧠 Why Choose FR DSO‑TC3 H?

Perfect for multi-functional field use—oscilloscope, waveform generator, and component tester in one affordable handheld unit. Highly usable for electronics, embedded systems, troubleshooting, and quick diagnostics when lab scope or bench gear isn’t available. walmart.com+14elektormagazine.com+14elektor.com+14amazon.com+5elektor.com+5newegg.com+5walmart.com+2newegg.com+2amazon.com+2
