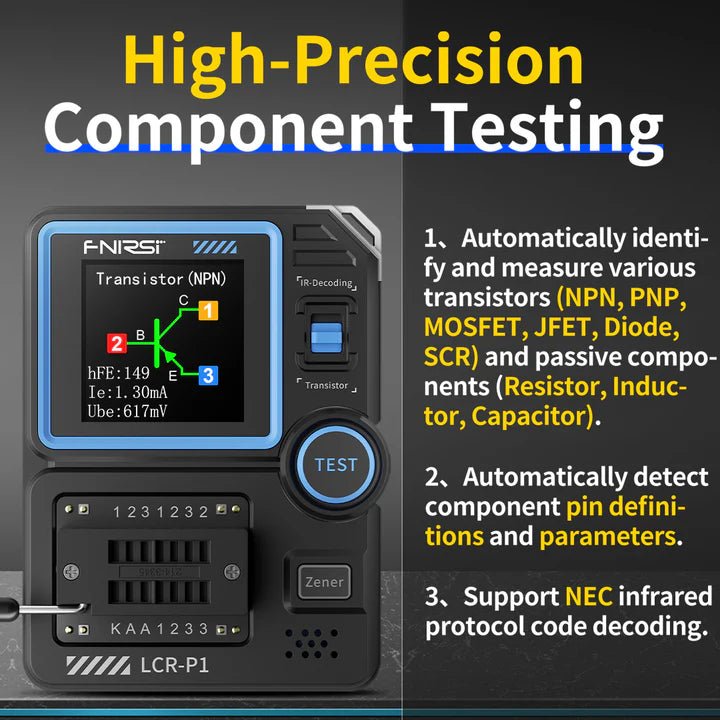

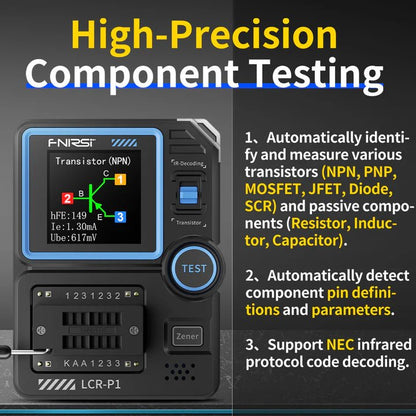

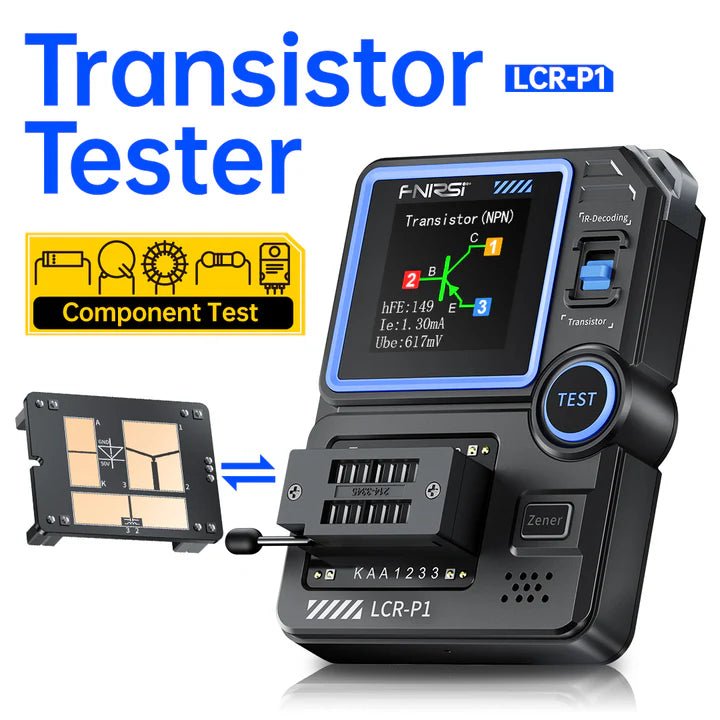

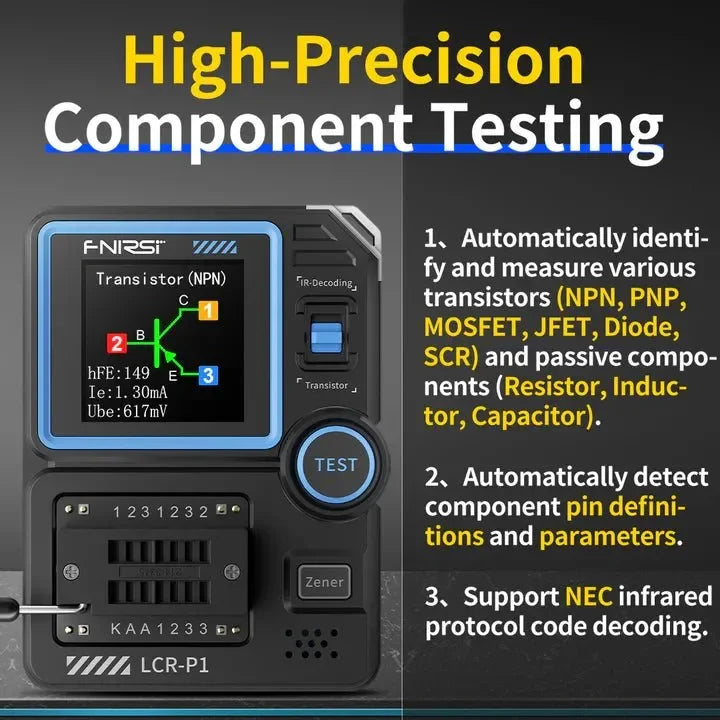

FR LCR P1 DIGITAL TRANSISTOR TESTER

✅ FR LCR-P1 – Digital Transistor & LCR Tester with Color Display

The FR LCR-P1 is a compact, multi-functional tester that can automatically identify and measure a wide range of electronic components. From transistors and diodes to resistors, capacitors, inductors, and even IR remotes—this tool is perfect for technicians, engineers, and electronics hobbyists.

🔧 Key Features

✅ Auto Component Detection
• Identifies NPN/PNP transistors, MOSFETs, IGBTs, JFETs, diodes, resistors, capacitors, inductors
• Detects pin configuration and key parameters like hFE, Vbe, Rds(on), etc.

✅ LCR Measurement
• Resistance: 0.01 Ω – 50 MΩ
• Capacitance: 25 pF – 100 mF
• Inductance: 10 μH – 1000 mH

✅ Diode & Zener Testing
• Measures forward voltage up to 4.5 V
• Zener diode detection up to 32 V (external source required)

✅ Infrared Signal Testing
• Decodes and displays NEC infrared signals from IR remotes

✅ Color LCD Screen
• 1.44″ bright display with visual pinout and measurement data

🔧 Technical Specs

📐 Display: 1.44″ Color LCD
🔋 Battery: Rechargeable 300 mAh Li-ion
🔌 Charging: USB-C
📏 Dimensions: ~71 × 87 × 28 mm
⚖️ Weight: ~120 g
🧠 Features: Auto shutdown, low power consumption, safe discharge protection

📦 Package Includes

📦 1x FR LCR-P1 Tester
📦 3x Test Hook Wires
📦 1x USB-C Charging Cable
📘 1x User Manual

🧠 Why Choose FR LCR-P1?

This pocket-sized tester saves time by auto-detecting and analyzing components with clear color visuals. It’s an all-in-one tool for circuit repair, component sorting, educational use, and field testing—compact, efficient, and fun to use!
