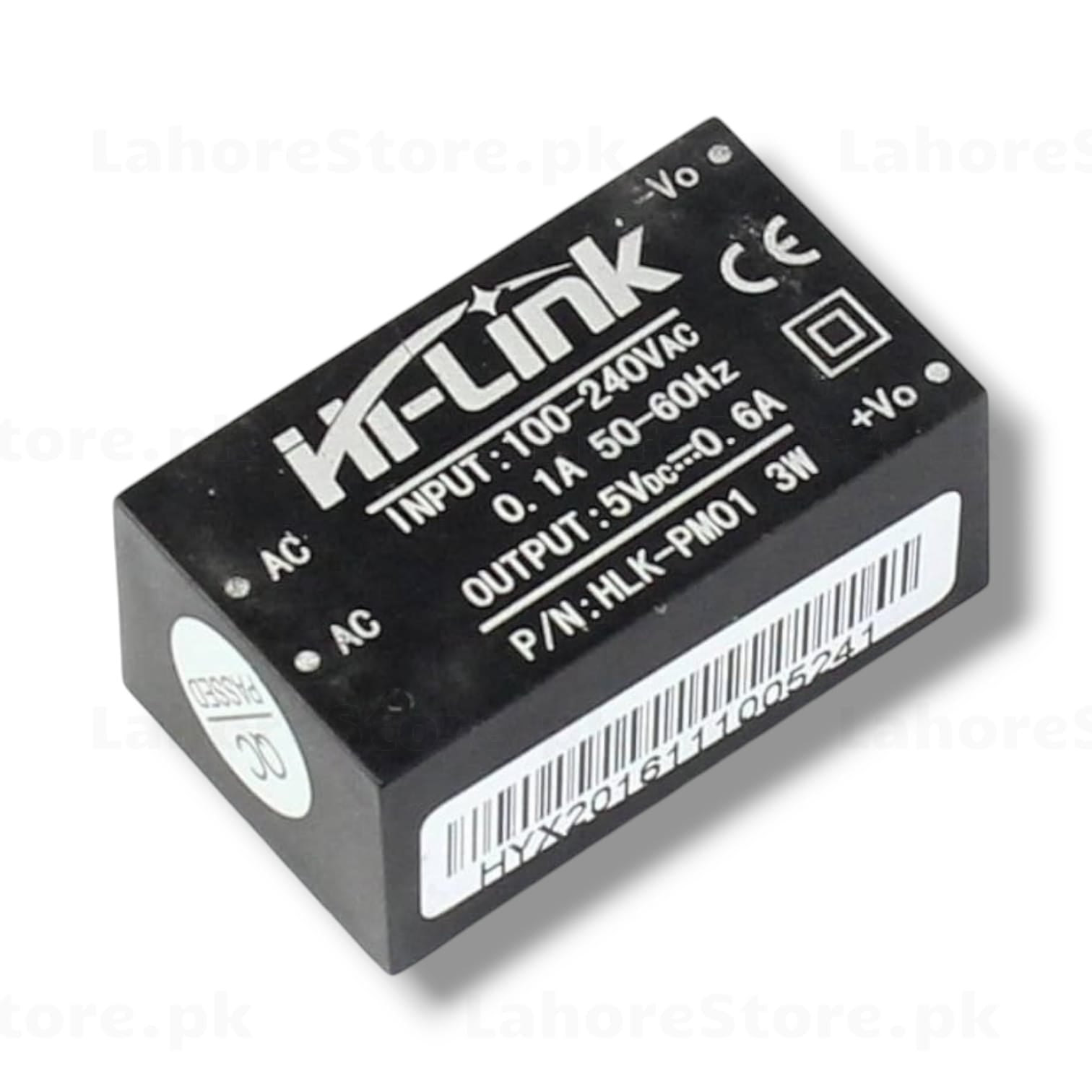

Hi-Link HLK-PM01 AC-DC Power Supply Module – 100-240V to 5V 600mA 3W

Hi-Link HLK-PM01 AC-DC Power Supply Module – 100-240V to 5V 600mA 3W

The Hi-Link HLK-PM01 is a compact, isolated AC-DC switching power supply module that converts mains voltage (100-240VAC) directly to a stable 5V DC output. Encapsulated in a robust black epoxy housing, it's the go-to solution for powering ESP8266, ESP32, Arduino, and other 5V microcontroller projects directly from the mains — without a bulky external adapter.

CE certified and widely trusted in the maker and IoT community, the HLK-PM01 simplifies embedded power supply design with its plug-and-play form factor and universal input voltage range.

Key Features

• Universal AC Input — 100-240VAC, works worldwide
• Stable 5V DC Output — 600mA (0.6A) max, 3W rated power
• Isolated Design — galvanic isolation between AC input and DC output for safety
• Compact Epoxy Module — small footprint, easy to embed in enclosures
• CE Certified — meets European safety standards
• 4 Pin Connections — AC (L/N) input and +Vo/-Vo DC output clearly labeled
• Wide Frequency Range — 50-60Hz compatible

Specifications

• Model: HLK-PM01
• Brand: Hi-Link
• Input Voltage: 100-240VAC
• Input Current: 0.1A
• Input Frequency: 50-60Hz
• Output Voltage: 5V DC
• Output Current: 600mA (0.6A) max
• Output Power: 3W
• Isolation: Yes (galvanic isolation)
• Certification: CE
• Housing: Black epoxy encapsulated

Pin Connections

• AC / AC — Mains AC input (Live and Neutral)
• +Vo — 5V DC positive output
• -Vo — DC ground (negative output)

Applications

• ESP8266 / ESP32 / Arduino mains-powered projects
• Smart home automation devices
• IoT sensor nodes with direct AC power
• Industrial control panel 5V supply
• LED driver and relay module power supply
• Embedded system power design

Safety Note: This module connects directly to mains voltage. Handle with care and ensure proper insulation in your enclosure design.
