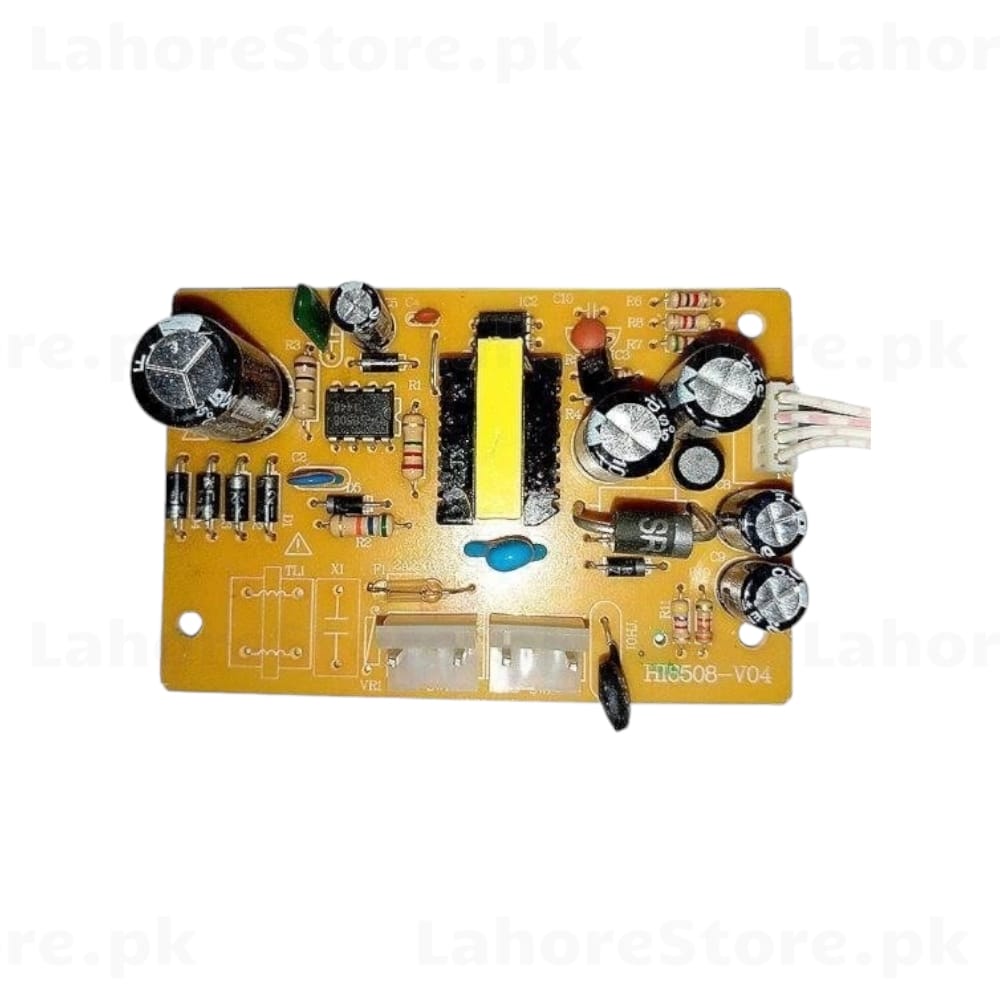

HIC508-V04 SMPS Switching Power Supply Board 5V

The HIC508-V04 SMPS Switching Power Supply Board is a compact, isolated flyback power supply PCB designed for converting AC mains input to regulated 5V DC output. Built on a yellow PCB with high-quality components, it is commonly used in appliance control boards, chargers, and embedded power supply applications.

Key Features:

• Isolated flyback SMPS topology for safe AC-to-DC conversion
• Onboard high-frequency transformer for efficient power transfer
• Rectifier diodes, filter capacitors, and PWM controller IC included
• Dual output connector (white JST-style) for easy integration
• Onboard varistors and fuse provisions for surge and overcurrent protection
• Compact yellow PCB with mounting holes
• Suitable for replacement or DIY embedded power supply projects

Specifications:

• Model: HIC508-V04
• Input: AC 85V – 265V (universal mains)
• Output: 5V DC
• Topology: Isolated Flyback SMPS
• PCB Color: Yellow
• Output Connector: 2x JST-style white connectors

A reliable and compact solution for powering microcontroller boards, sensors, and low-power embedded systems directly from mains AC supply.
