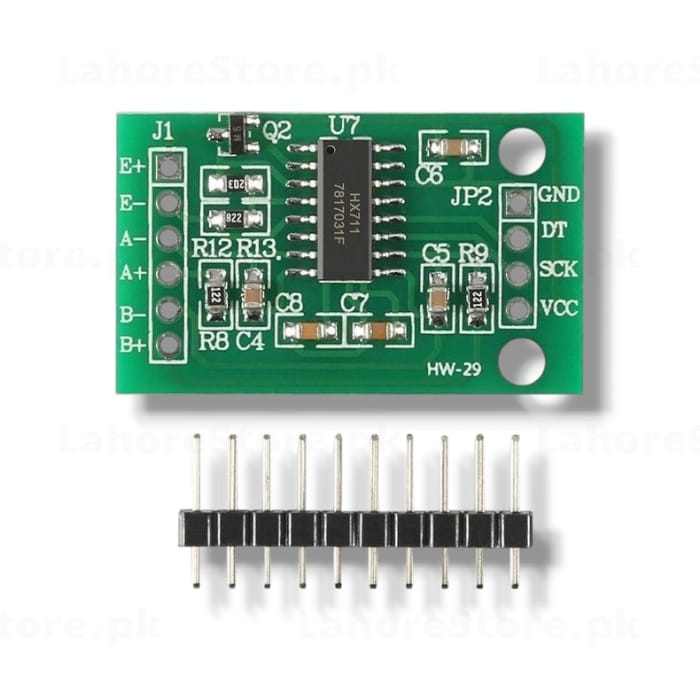

HX711 Load Cell Amplifier Module 24-Bit ADC (HW-29) with Header Pins

Accurately measure weight and force with the HX711 Load Cell Amplifier Module (HW-29). This 24-bit precision ADC is specifically designed for weigh scales and industrial control applications, making it the standard choice for DIY digital scales and load cell projects.

• IC: HX711 (24-bit analog-to-digital converter)
• Dual differential input channels: Channel A (E+/E-/A+/A-) & Channel B (B+/B-)
• Channel A gain: 128 or 64 (selectable via JP2)
• Channel B gain: 32
• Output pins: GND, DT (Data), SCK (Clock), VCC
• Supply Voltage: 2.6V – 5.5V
• Data rate: 10SPS or 80SPS
• On-chip power supply regulator for load cell and ADC
• Includes male header pins for breadboard use
• Board: HW-29
• Compatible with Arduino, ESP32, Raspberry Pi
