Inductive Proximity Sensor M12 NPN 3-Wire

Inductive Proximity Sensor M12 NPN 3-Wire

The M12 Inductive Proximity Sensor is a non-contact metal detection sensor widely used in industrial automation, CNC machines, robotics, and conveyor systems. It detects the presence of metallic objects without physical contact, offering reliable and long-lasting performance in demanding environments.

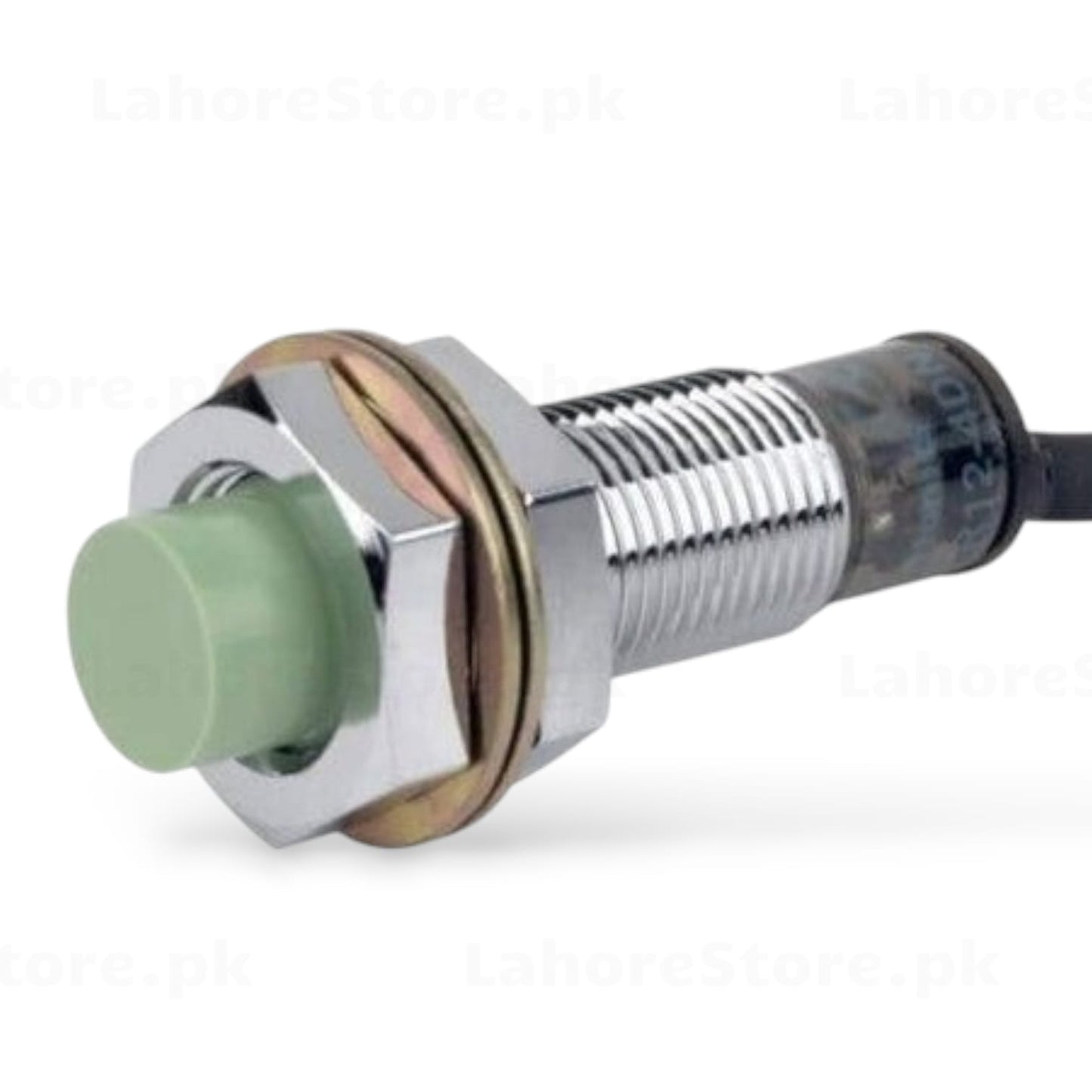

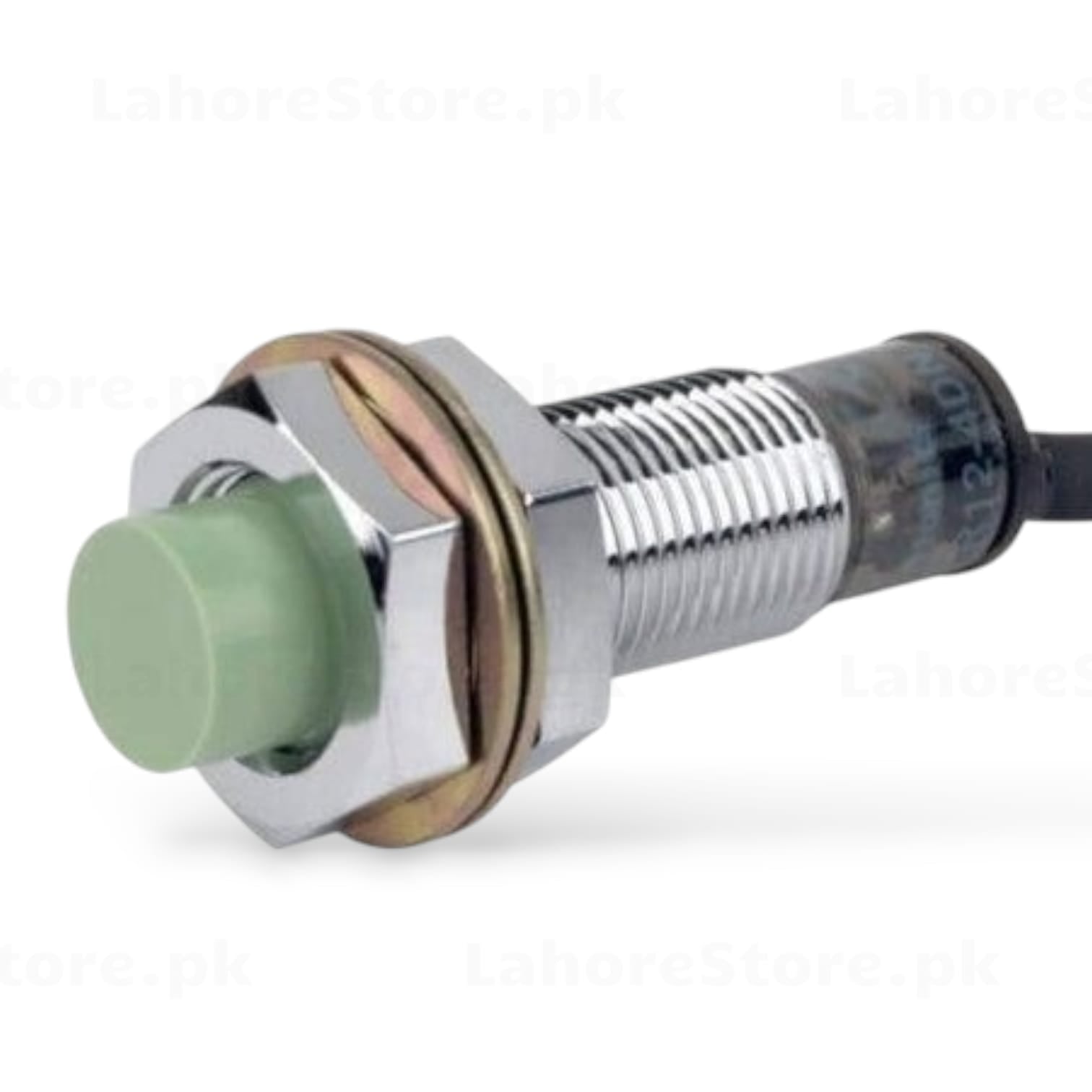

This sensor features a threaded M12 stainless steel body with a long cable for flexible installation, along with mounting nuts and a lock washer for secure panel mounting.

Key Specifications

• Body Diameter: M12 (12mm)
• Output Type: NPN (Normally Open)
• Wiring: 3-Wire (Brown: VCC, Blue: GND, Black: Output)
• Supply Voltage: 6V to 36V DC
• Sensing Distance: Up to 4mm (standard)
• Output Current: Up to 200mA
• Cable Length: Approximately 1.5 to 2 meters
• Housing Material: Stainless steel with threaded body
• Protection Rating: IP67 (dust and water resistant)

Key Features

• Non-contact metal object detection
• Detects ferrous and non-ferrous metals
• IP67 rated — suitable for harsh and wet environments
• LED indicator for detection status

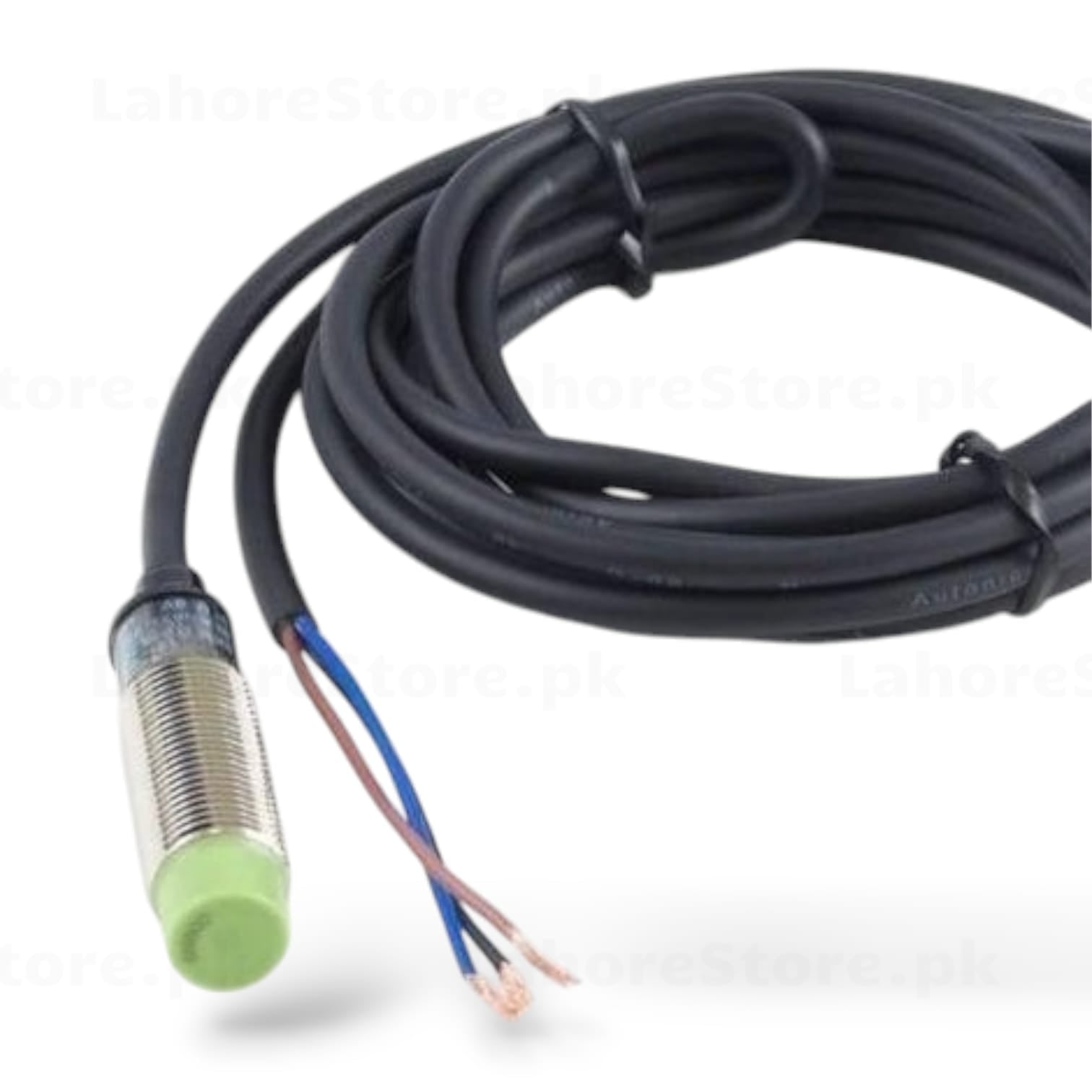

• Long cable with bare wire ends for easy wiring
• Includes mounting nuts and lock washer

Applications

• CNC machine tool position sensing
• Conveyor belt object detection
• Robotics and automation systems
• Industrial counting and positioning
• Arduino and PLC-based projects
• End-stop detection for 3D printers

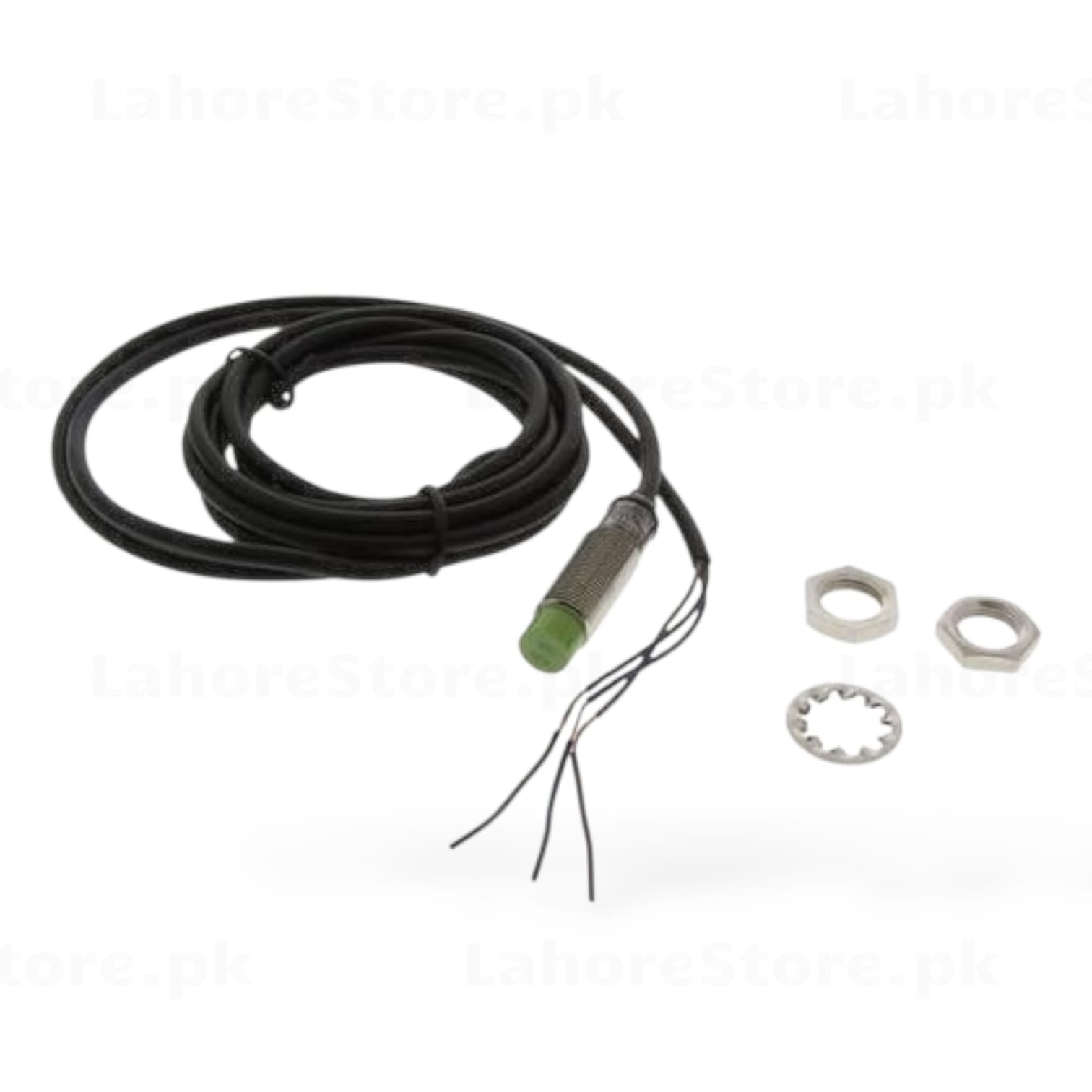

Package Contents

• 1x M12 Inductive Proximity Sensor
• 2x Mounting nuts
• 1x Lock washer
