Micro USB Female to DIP Breakout Board with Header Pins

Micro USB Female to DIP Breakout Board with Header Pins

Rs.49

Rs.49

Sale Sold out

Shipping calculated at checkout.

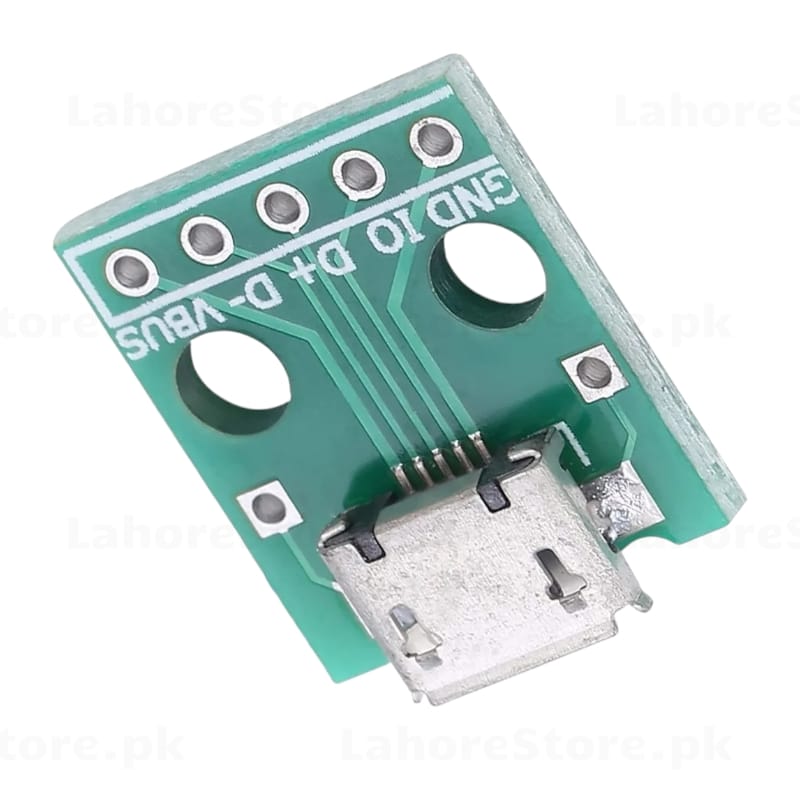

Micro USB Female to DIP Breakout Board
Convert a Micro USB female connector to standard 2.54mm DIP (Dual In-line Package) pitch for easy breadboard and PCB integration. This compact breakout board exposes all 5 USB pins — VBUS, D-, D+, ID, and GND — to through-hole pads, making it ideal for prototyping, power supply projects, and USB data line testing.
Key Features
Micro USB Type-B female connector mounted on PCB
All 5 USB pins broken out: VBUS, D-, D+, ID, GND
2.54mm (0.1") pitch through-hole pads — breadboard compatible

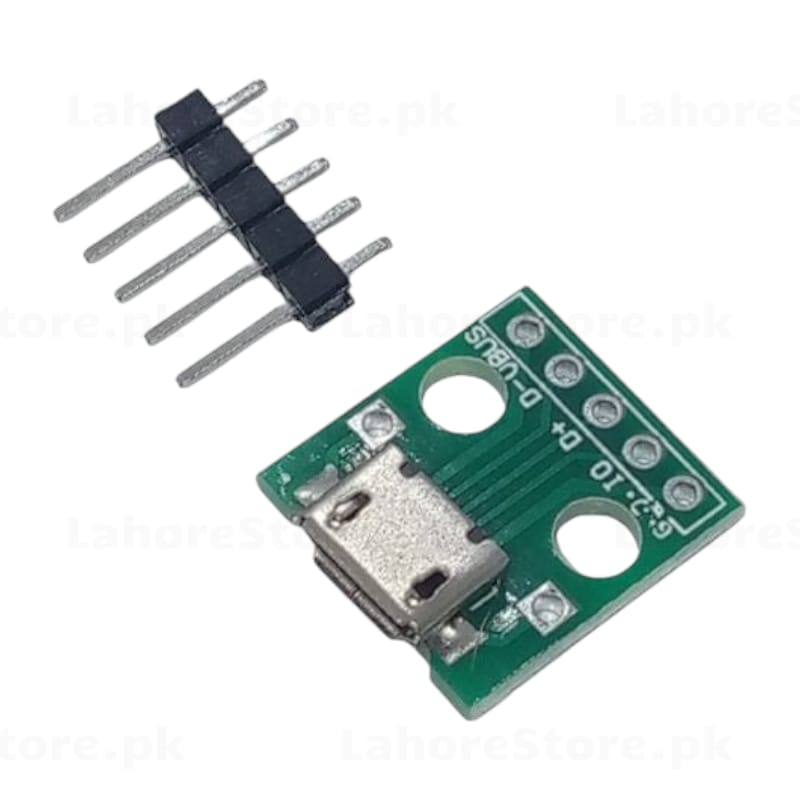

Includes 5-pin male header strip for easy plug-in use
Mounting holes for secure panel or chassis installation
Compact PCB size for space-constrained projects
Clearly labeled pin silkscreen for quick identification
Pin Description
VBUS – 5V USB power supply
D- – USB data negative
D+ – USB data positive
ID – OTG ID pin
GND – Ground
Applications
USB power input for DIY electronics projects
USB data line prototyping and testing
Charging circuits and power modules
Arduino, ESP32, STM32, and other microcontroller projects
