Mitsubishi NV-L22FZC Earth Leakage Circuit Protector 24A 2P (5mA)

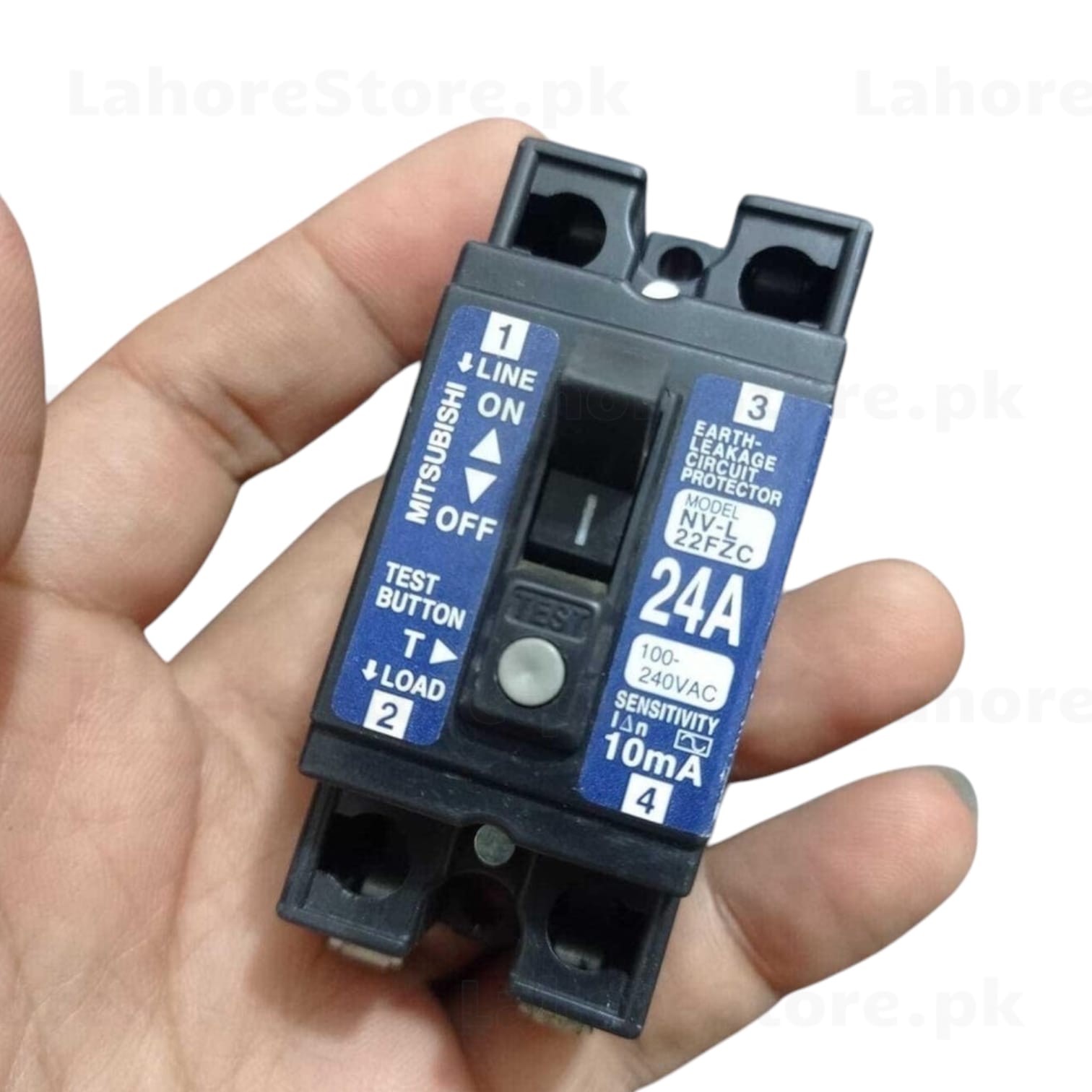

Mitsubishi NV-L22FZC Earth Leakage Circuit Protector — 24A, 2-Pole, 5mA

The Mitsubishi NV-L22FZC is a premium Earth Leakage Circuit Breaker (ELCB) manufactured by Mitsubishi Electric in Japan. This unit features a non-sensitivity setting of 5mA, making it ideal for highly sensitive leakage protection applications. With overload and short-circuit protection built in, it safeguards both people and equipment in industrial and commercial installations.

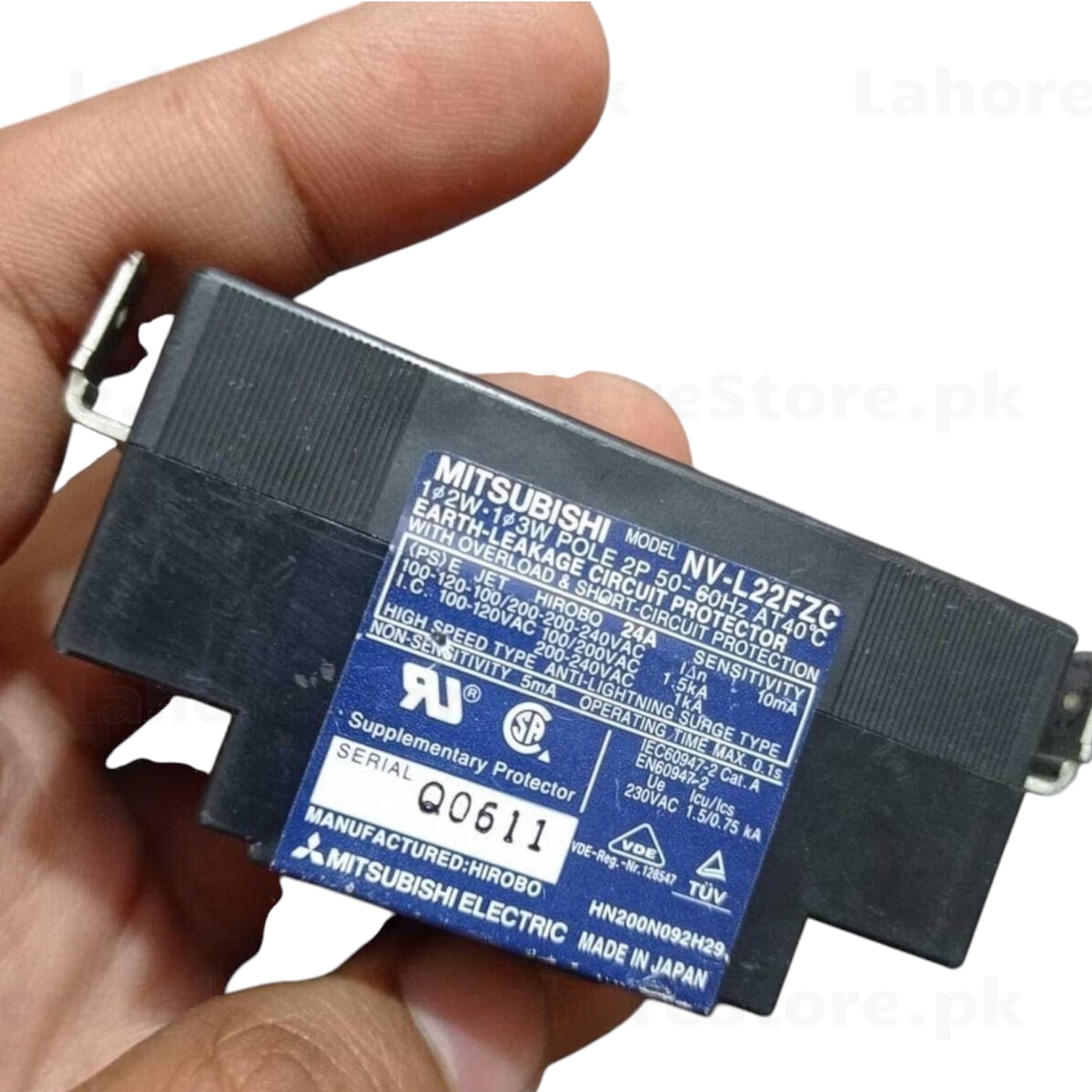

Key Specifications

• Model: NV-L22FZC
• Manufacturer: Mitsubishi Electric (Hirobo) — Made in Japan
• Rated Current: 24A
• Poles: 2P (1φ2W – 1φ3W)
• Frequency: 50–60 Hz
• Voltage: 100–240VAC
• Non-Sensitivity: 5mA
• Sensitivity: 10mA (High Speed Type)
• Breaking Capacity: 1kA (100–120VAC) / 1.5kA (200–240VAC)
• Operating Time: Max 0.1s
• Standards: IEC60947-2 Cat. A, EN60947-2, UL Listed, CSA Certified, TÜV Approved
• Test Button: Built-in for periodic testing
• Anti-Lightning Surge Type

Typical Applications

• Industrial control panels and distribution boards
• Equipment and motor protection
• Home and commercial electrical installations
• Earth fault and short circuit protection
