NEMA 17 Stepper Motor Cable – XH 6-Pin to Dupont 4-Pin for 3D Printer (1m)

NEMA 17 Stepper Motor Cable – XH 6-Pin to Dupont 4-Pin for 3D Printer (1m)

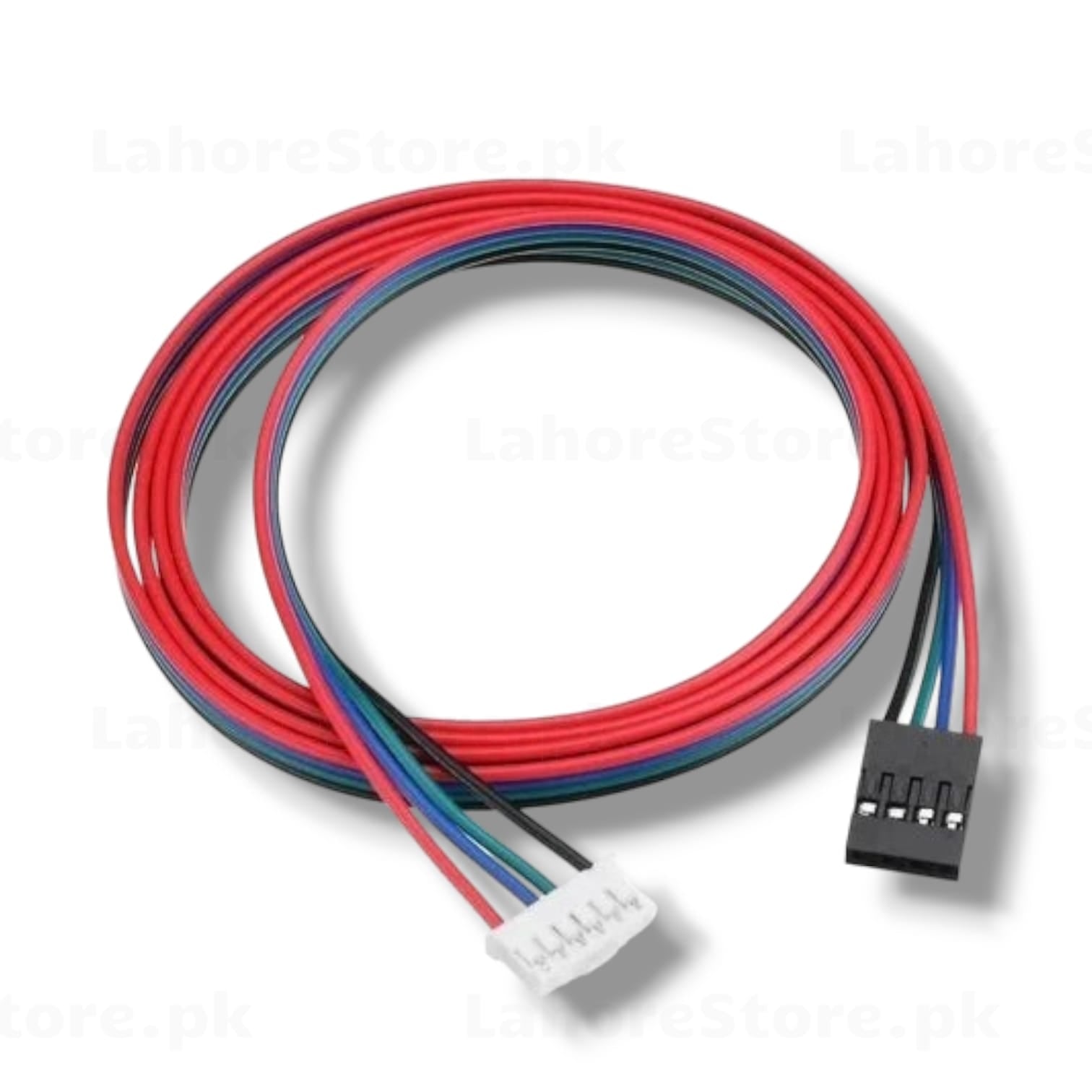

This NEMA 17 stepper motor extension cable connects your stepper motor to your 3D printer control board (RAMPS, SKR, MKS, etc.) with ease. One end features a white XH 6-pin JST-style connector that plugs directly into the NEMA 17 motor, while the other end has a standard black Dupont 4-pin female connector for the stepper driver socket on your board.

With color-coded wires (Red, Blue, Green, Black) and approximately 1 meter length, it provides clean routing inside your printer frame without signal loss or interference.

Key Features

• XH 6-Pin to Dupont 4-Pin — plug-and-play with NEMA 17 motors and standard boards
• Color-Coded Wires — Red, Blue, Green, Black for easy phase identification
• ~1 Meter Length — sufficient for most 3D printer frame sizes
• Flexible PVC Insulation — easy routing through cable channels
• Secure Locking Connectors — firm connection at both ends
• Compatible with RAMPS, SKR, MKS, BTT boards

Specifications

• Motor Connector: XH 6-pin (white, JST-style)
• Board Connector: Dupont 4-pin female (black)
• Wire Colors: Red, Blue, Green, Black
• Length: ~1 meter (approx.)
• Compatible Motors: NEMA 17 bipolar stepper motors
• Compatible Boards: RAMPS 1.4, SKR, MKS, BTT, and similar

Applications

• 3D printer X/Y/Z/E axis stepper motor wiring
• CNC machine stepper motor connections
• RAMPS 1.4 / SKR / MKS board stepper driver wiring
• DIY 3D printer builds and upgrades
• Stepper motor extension and replacement cables
