Nema17 Stepper motor

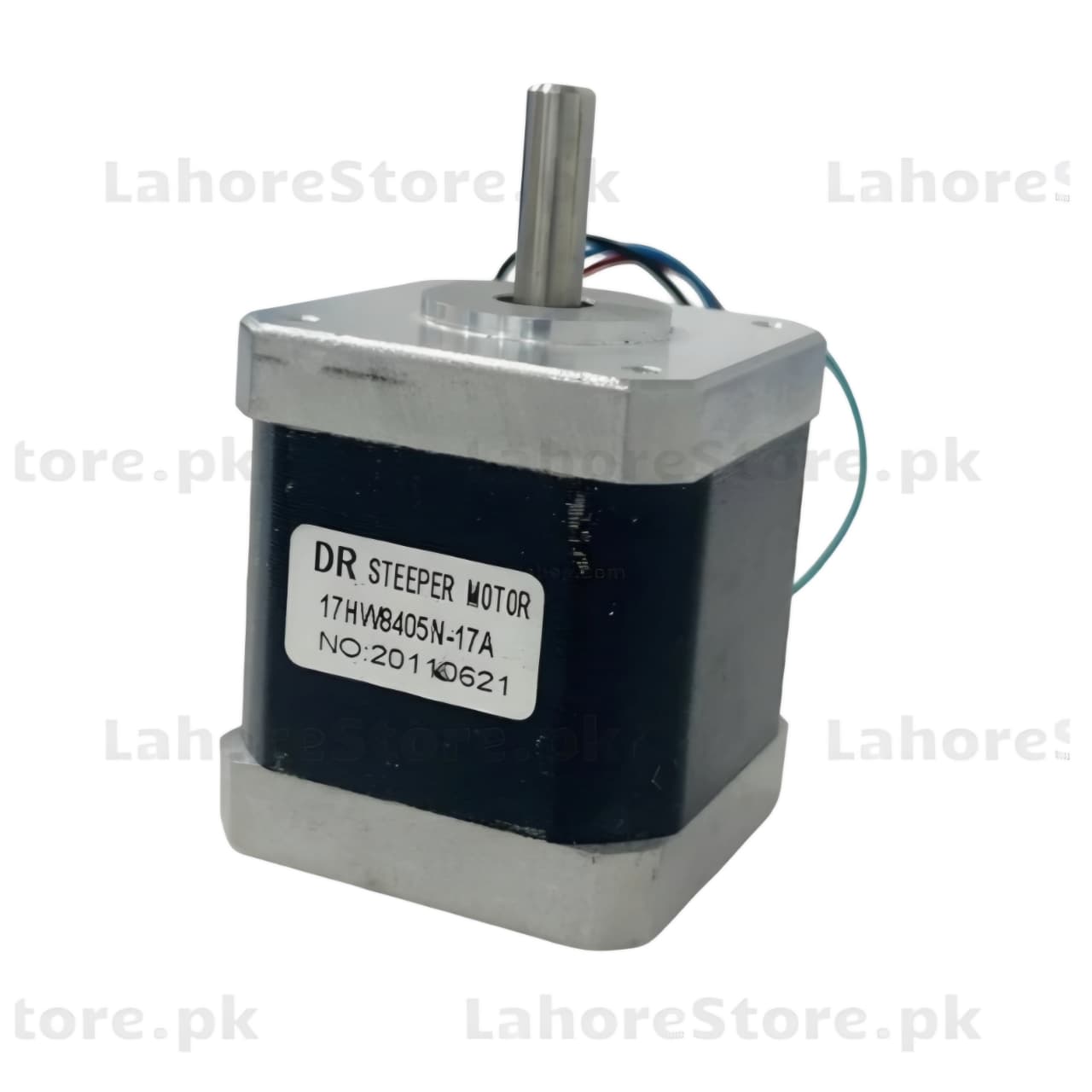

🌀 Nema17 High Precision Stepper Motor – 1.8° Step Angle

Unlock precise motion control with our Nema17 Stepper Motor, perfect for 3D printers, CNC machines, and robotics applications. Built with reliability and power in mind, this motor delivers smooth rotation, high torque, and excellent efficiency – making it ideal for demanding tasks requiring accurate positioning.

🔧 Specifications:

• 📏 Shaft Size: 5mm
• 🔁 Step Angle: 1.8°
• ⚡ Phase Current: 1.2A
• 🔌 Phase Resistance: 1.5Ω
• 🌀 Phase Inductance: 2.8mH
• 🧲 Holding Torque: 40N.cm
• ⛔ Braking Torque: 2.2N.cm
• ⚙️ Rotor Inertia: 54g.cm²
• 🌡️ Max. Temperature Rise: 80°C (rated current, 2-phase on)
• 🌡️ Operating Temperature: -20°C ~ +70°C
• 📐 Insulation Resistance: 100 MΩ Min. @ 500VDC
• 🔄 Radial Clearance: Max. 0.02mm (450g load)
• ↕️ Axial Clearance: Max. 0.08mm (450g load)
• ⚙️ Max. Radial Pressure: 75N (at 20mm from the flange)
• ⬆️ Max. Axial Pressure: 15N

✅ Applications:
Perfect for 3D printers, CNC projects, camera sliders, robotics, and automation tasks requiring precision and torque.
