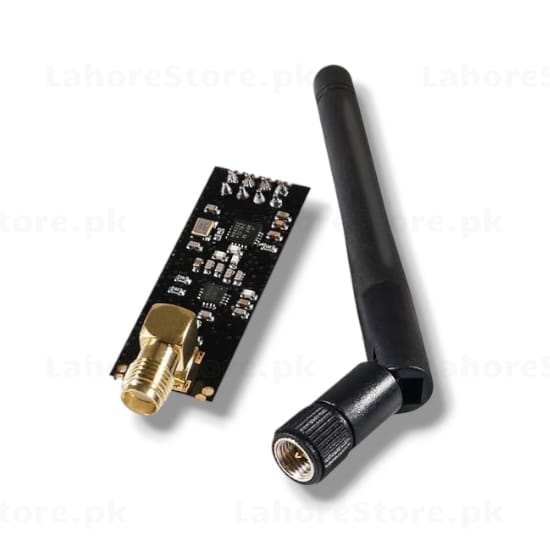

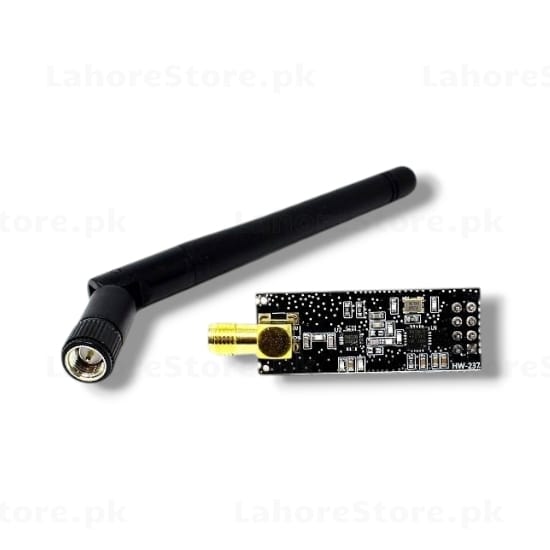

NRF24L01+PA+LNA 2.4GHz Wireless Transceiver Module with External Antenna

NRF24L01+PA+LNA 2.4GHz Wireless Transceiver Module

Extend your wireless range dramatically with this NRF24L01+PA+LNA module featuring a power amplifier (PA) and low-noise amplifier (LNA). With an external SMA antenna, this module achieves long-range communication up to 1000 meters in open air — ideal for RC projects, IoT sensor networks, and Arduino wireless communication.

Key Features

• NRF24L01+ chip with PA (Power Amplifier) and LNA (Low Noise Amplifier)
• External SMA antenna for extended range (up to 1000m open air)
• 2.4GHz ISM band operation
• SPI interface for easy microcontroller integration
• 125 selectable RF channels
• Auto acknowledgment and retransmit
• Black PCB with gold SMA connector

Specifications

• Chip: NRF24L01+
• Frequency: 2.4GHz ISM band
• Range: Up to 1000m (open air)
• Interface: SPI (5-pin)
• Operating Voltage: 3.3V (5V tolerant IO)
• Data Rate: 250Kbps / 1Mbps / 2Mbps
• Antenna: External SMA (included)

Compatible With

• Arduino UNO, Nano, Mega
• ESP8266 / ESP32
• Raspberry Pi
• Any SPI-capable microcontroller
