OONO F-1081 DC 10A Motor Reversing Relay Module 5V

OONO F-1081 DC 10A Motor Reversing Relay Module

The OONO F-1081 is a compact, high-current DC motor reversing relay module designed for forward/reverse motor control applications. Rated at 10 Amps and operating on a 5V control signal, it features built-in limit switch inputs (FWD/REV) and a clean screw-terminal interface — making it ideal for linear actuators, DC gear motors, and automated motion control systems.

Key Features

• Model: OONO F-1081 by CZH-Labs
• Control voltage: 5V DC
• Output current: 10A DC
• Forward (FWD) and Reverse (REV) control inputs
• Built-in limit switch (LIMIT SW) input terminals
• Motor outputs: M1 (+) and M2 (−)
• Power inputs: V+ and 0V (GND)

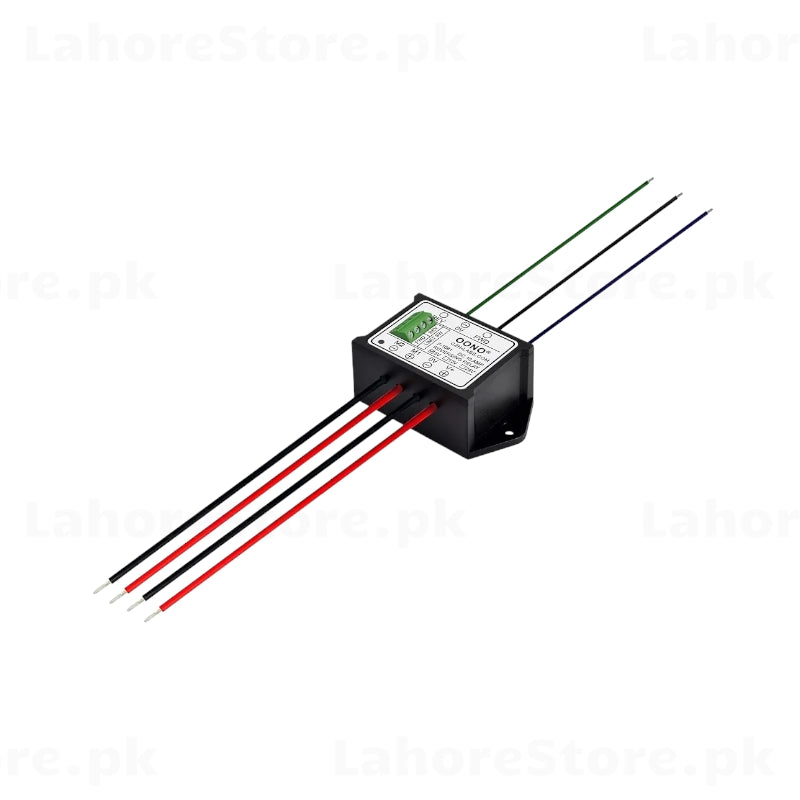

• Compact black enclosure with mounting holes
• Pre-wired leads for easy integration

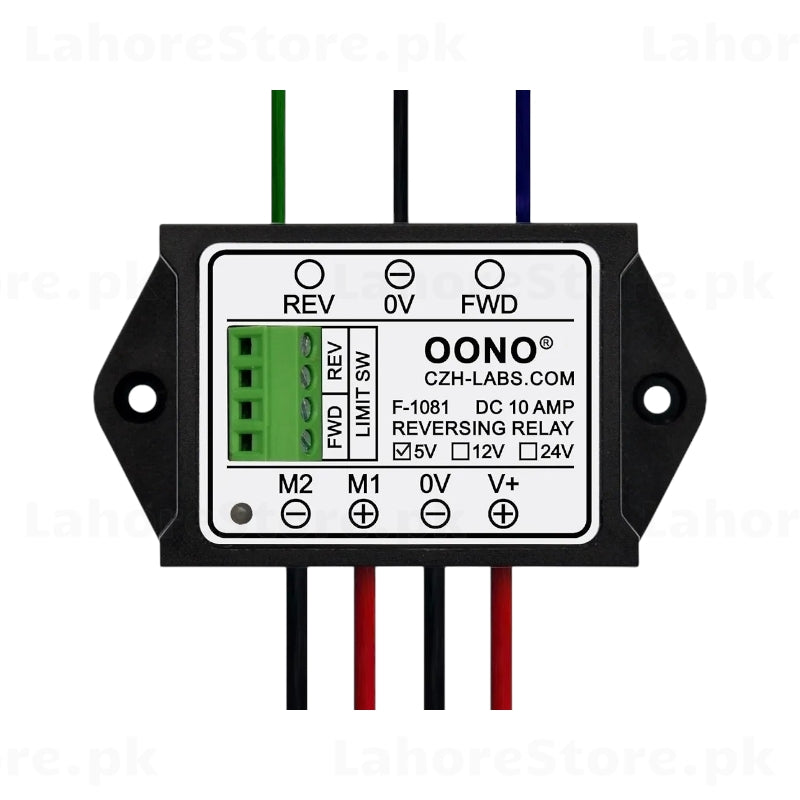

Terminal Description

• REV / 0V / FWD — Control signal inputs
• FWD / REV / LIMIT SW — Limit switch screw terminals
• M1 / M2 — Motor output terminals
• V+ / 0V — Power supply input

Typical Applications

• DC motor forward/reverse control
• Linear actuator direction control
• Automated gate and door systems
• Robotics and CNC motion control
• Industrial automation with limit switch feedback

Package Contents

• 1x OONO F-1081 DC 10A Reversing Relay Module (5V)
