PIC Microcontroller Development Board DIP40 USB Trainer with DIP Switch and Potentiometer

PIC Microcontroller Development Board - DIP40 USB Trainer with DIP Switch and Potentiometer

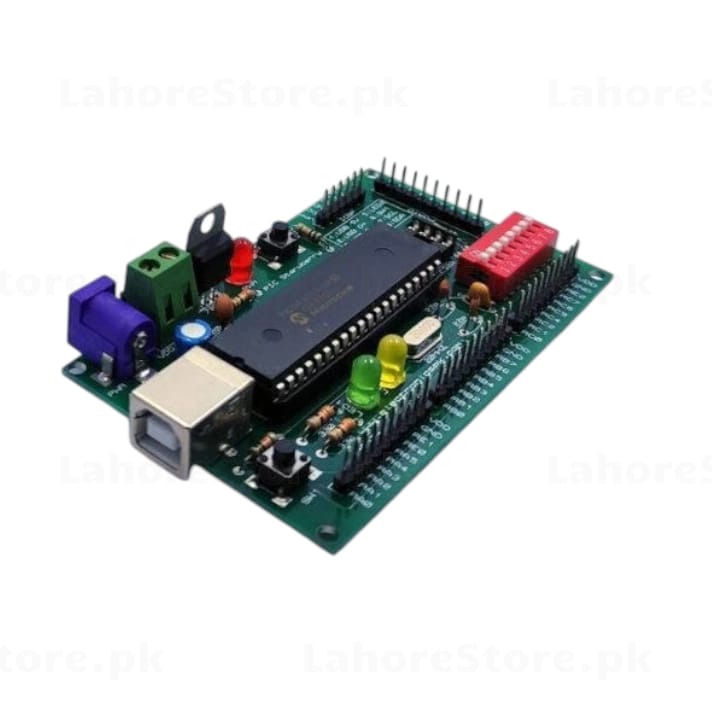

Build, test, and learn PIC microcontroller projects on a practical all-in-one trainer board. Designed for 40-pin DIP PIC devices, this development board combines USB connectivity, onboard LEDs, push buttons, a DIP switch block, adjustable potentiometer, and accessible GPIO headers for fast embedded-systems prototyping.

Key Features

• 40-pin DIP socket for popular PIC microcontrollers including PIC16F877A and PIC18F4550
• USB Type-B connector for USB-powered development and compatible USB projects
• Red DIP switch block for convenient digital input testing
• Onboard LEDs and push buttons for quick GPIO output and input experiments
• Adjustable potentiometer for analog input, ADC and sensor simulation projects
• External power terminals and onboard regulator for flexible power connection
• Full GPIO header access for connecting sensors, displays, relays and other modules
• Compact green PCB with mounting holes for bench or enclosure installation

Specifications

• MCU Socket: 40-pin DIP
• Compatible MCUs: PIC16F877A, PIC18F4550, PIC16F887 and similar 40-pin DIP PICs
• USB Interface: USB Type-B
• Onboard Controls: DIP switch block, push buttons, adjustable potentiometer
• Indicators: Red, green and yellow LEDs
• Power Input: USB or external DC terminal
• Expansion: GPIO header pins and peripheral connection points
• PCB Color: Green

Perfect For

• PIC16F877A and PIC18F4550 development
• Embedded systems learning and training
• ADC, GPIO, UART, SPI and I2C experiments
• University and college electronics projects
• Sensor, display and relay interface testing
• DIY automation and robotics prototypes

Order now and prototype PIC-based embedded projects with less wiring and more control.
