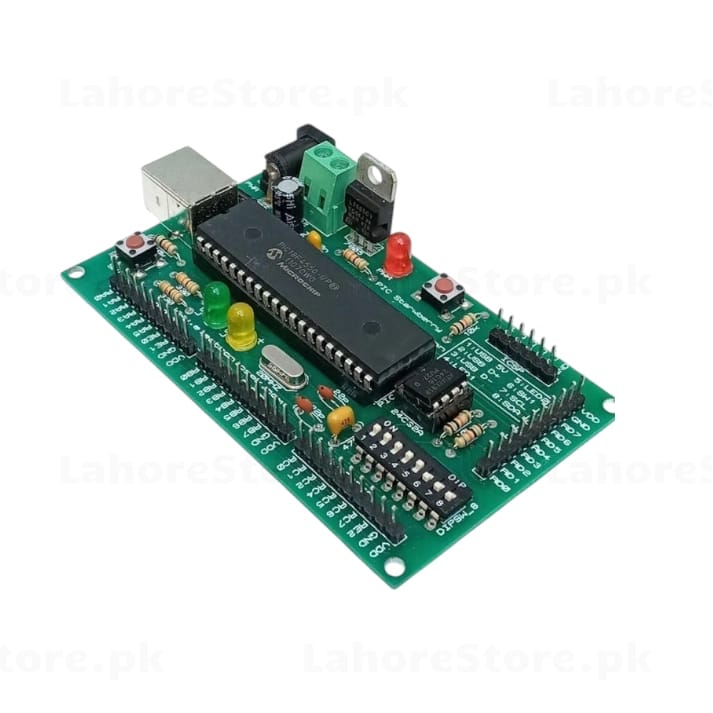

PIC Microcontroller Development Board - DIP40 USB PIC Trainer with LEDs and DIP Switch

PIC Microcontroller Development Board - DIP40 USB Trainer with LEDs and DIP Switch

Start learning and prototyping with PIC microcontrollers on a feature-rich development board. This trainer board accommodates all standard 40-pin DIP PIC MCUs (PIC16F877A, PIC18F4550, etc.), includes USB connectivity, onboard LEDs, push buttons, a DIP switch bank, and screw terminals - everything you need to run your first PIC program right out of the box.

Key Features

• Compatible with 40-pin DIP PIC MCUs - PIC16F877A, PIC18F4550, PIC16F887 and similar
• USB Type-B port - for USB-based PIC programming and USB peripheral projects
• Onboard LEDs (red, yellow, green) - instant output feedback for GPIO testing
• Push button switches and DIP switch bank - easy digital input simulation
• Screw terminal blocks - secure external circuit connections
• Crystal oscillator socket - use your own frequency for timing-critical projects
• Full GPIO breakout header pins - access all MCU pins for expansion
• Compact green PCB with mounting holes

Specifications

• MCU Socket: 40-pin DIP (ZIF or standard)
• Compatible MCUs: PIC16F877A, PIC18F4550, PIC16F887 and other 40-pin DIP PICs
• USB Interface: USB Type-B connector
• Power: Via USB or external supply through screw terminals
• Onboard Peripherals: Multi-color LEDs, push buttons, DIP switches, crystal socket
• GPIO Access: Full pin header breakout on all sides
• PCB Color: Green

Perfect For

• PIC Microcontroller Learning and Education
• Embedded Systems Prototyping and Development
• University and College Electronics Lab Projects
• PIC16F877A and PIC18F4550 USB Projects
• GPIO, ADC, UART, SPI and I2C Peripheral Testing
• DIY Electronics and Automation Projects

Order now and get your PIC development environment up and running from day one.
