PIC Microcontroller Programmer Board with 40-Pin ZIF Socket

PIC Microcontroller Programmer Board with 40-Pin ZIF Socket

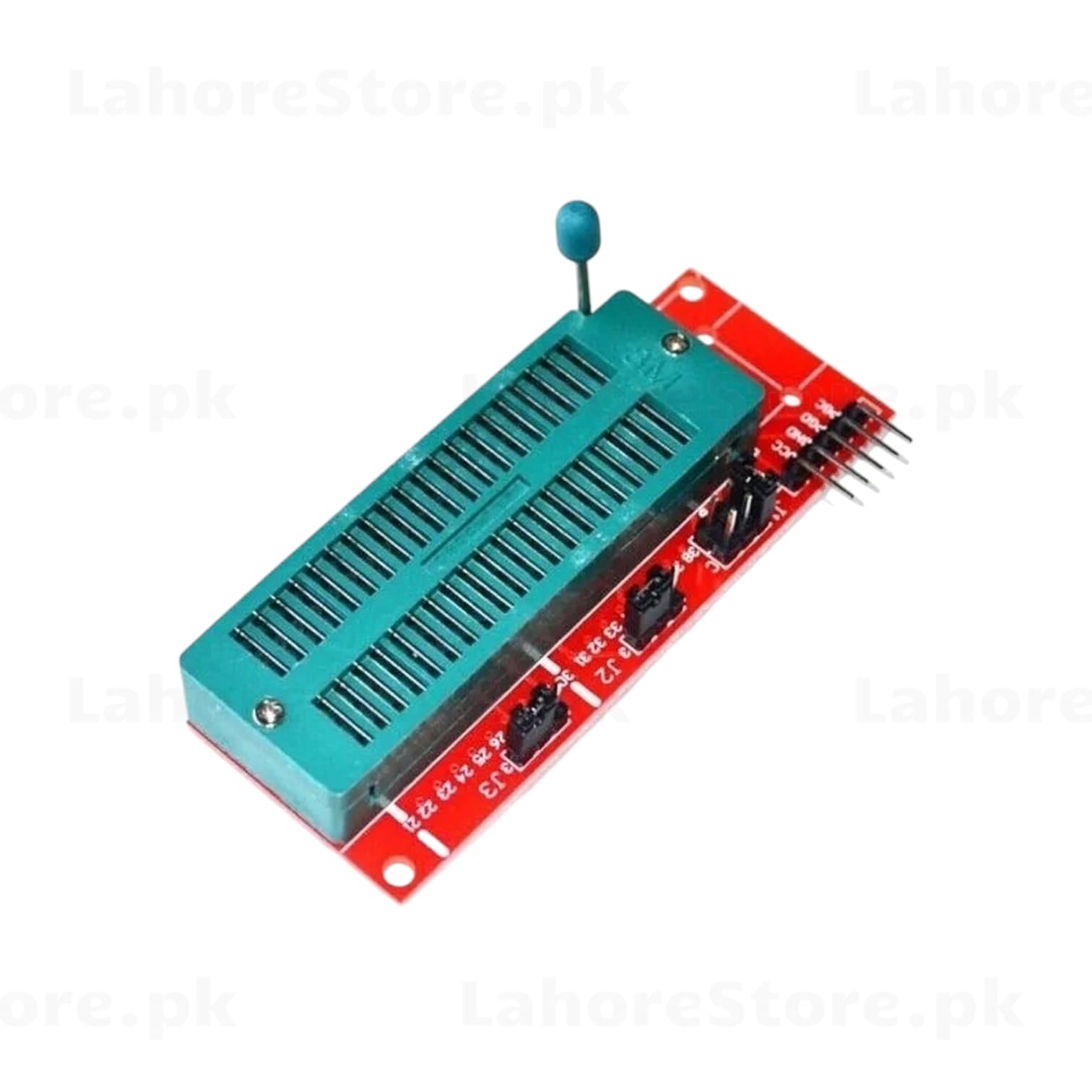

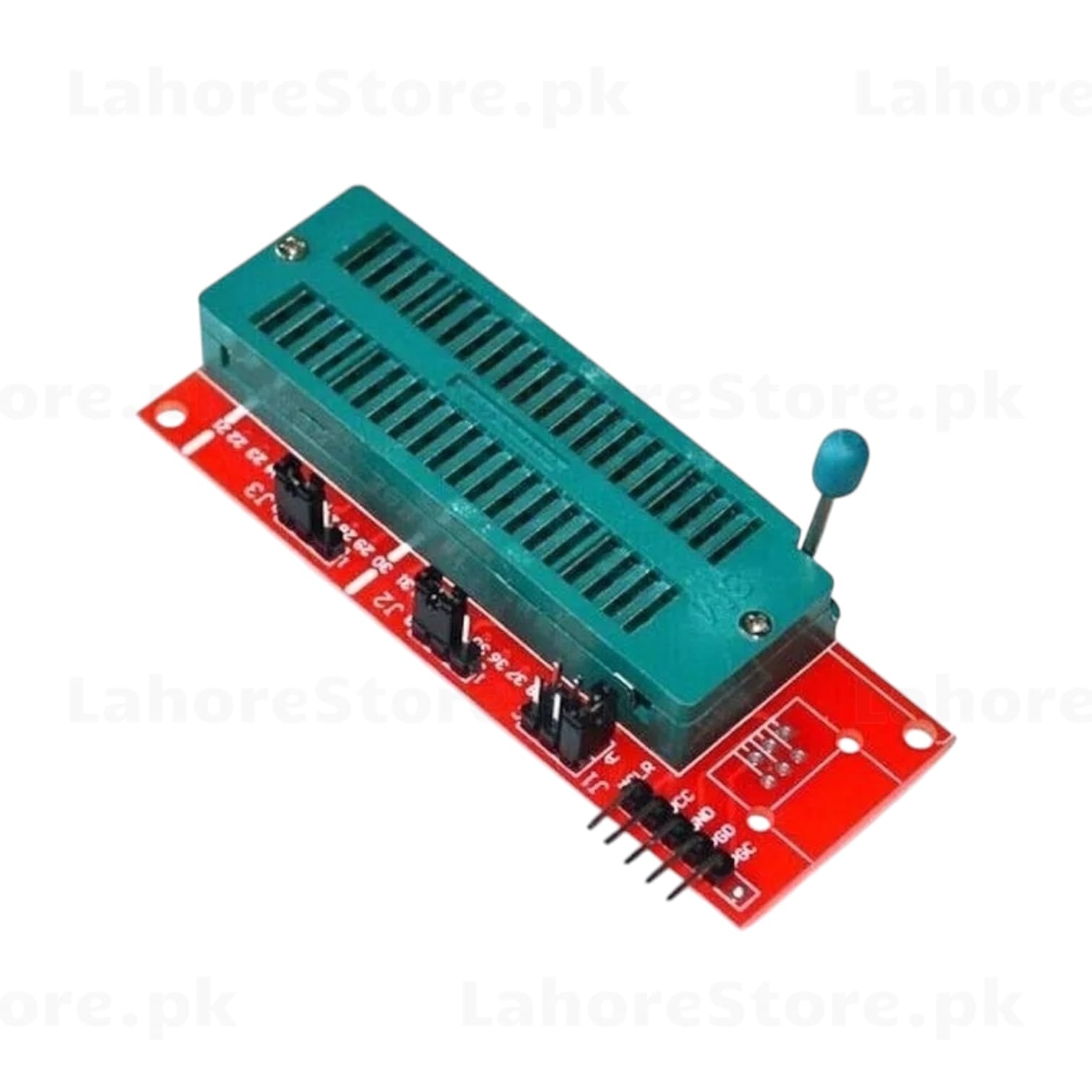

Take the hassle out of PIC programming with this dedicated programmer board featuring a 40-pin Zero Insertion Force (ZIF) socket. The teal ZIF lever mechanism lets you insert and remove DIP PIC microcontrollers dozens of times without bending a single pin. Mounted on a compact red PCB with clearly labeled pin headers (J1, J2, J3) and ICSP interface, this board is the ideal companion for any PIC development setup.

Key Features

• ZIF Socket: 40-pin Zero Insertion Force — lever-operated for safe IC insertion/removal
• Compatible ICs: PIC16, PIC18, and other 40-pin DIP PIC microcontrollers
• Interface: ICSP (In-Circuit Serial Programming) header (J1)
• Connectors: J1 (ICSP), J2, J3 — labeled pin headers for easy wiring
• PCB: Compact red PCB with mounting holes
• Onboard Components: Decoupling capacitors and passive components for stable operation
• Breadboard Compatible: Standard 2.54mm pitch headers

Typical Applications

• PIC microcontroller programming and testing
• Firmware flashing and development
• IC socket adapter for prototyping
• Electronics lab and classroom use
