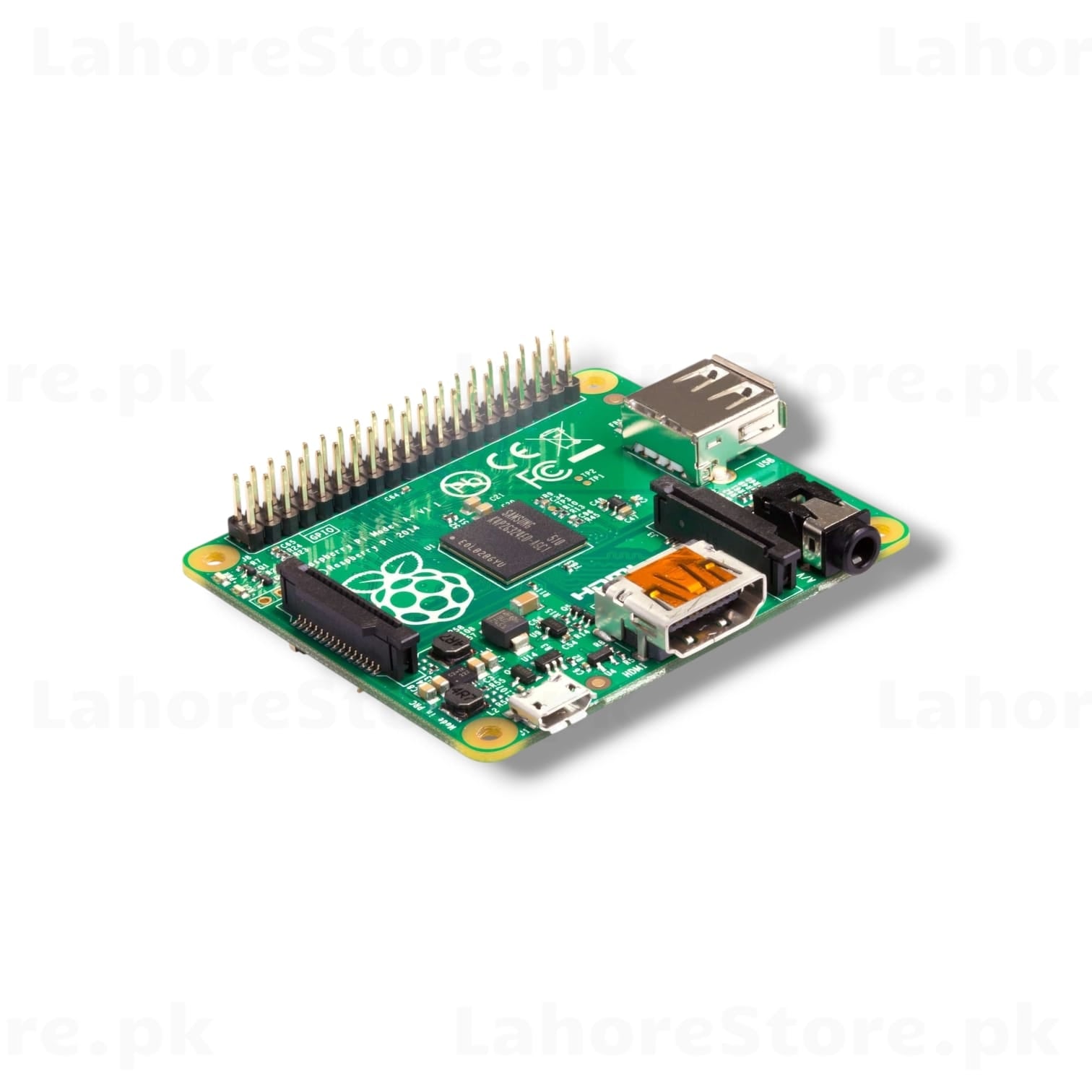

Raspberry Pi 1 Model A+

Raspberry Pi 1 Model A+

The Raspberry Pi 1 Model A+ is the slim, low-power member of the original Raspberry Pi family. Compact yet capable, it's the perfect choice for embedded projects, retro gaming, lightweight servers, and educational computing where power efficiency and small form factor matter most.

Specifications

• Processor: Broadcom BCM2835 – ARM1176JZF-S @ 700 MHz (single-core)
• RAM: 256MB LPDDR2 SDRAM
• Storage: MicroSD card slot
• USB: 1x USB 2.0 Type-A port
• Video Output: HDMI (full-size) + Composite video (3.5mm AV jack)
• Audio: 3.5mm stereo audio jack
• GPIO: 40-pin header
• Camera Interface: CSI connector
• Display Interface: DSI connector
• Power: Micro-USB (5V, 500mA minimum)
• Dimensions: 65mm x 56mm
• OS Support: Raspberry Pi OS, Raspbian, and other Linux distros

Key Features

• Ultra-low power consumption — ideal for battery-powered projects
• 40-pin GPIO for hardware interfacing and HAT compatibility
• Full HDMI output for display projects
• Compact and lightweight design
• Large community support and extensive documentation

Ideal For

• Embedded Linux projects
• Retro gaming consoles (RetroPie)
• Lightweight web servers and IoT nodes
• Educational computing and programming
• Digital signage and kiosk displays
