Raspberry Pi Zero 2 W – Quad-Core 512MB WiFi & Bluetooth SBC

Raspberry Pi Zero 2 W

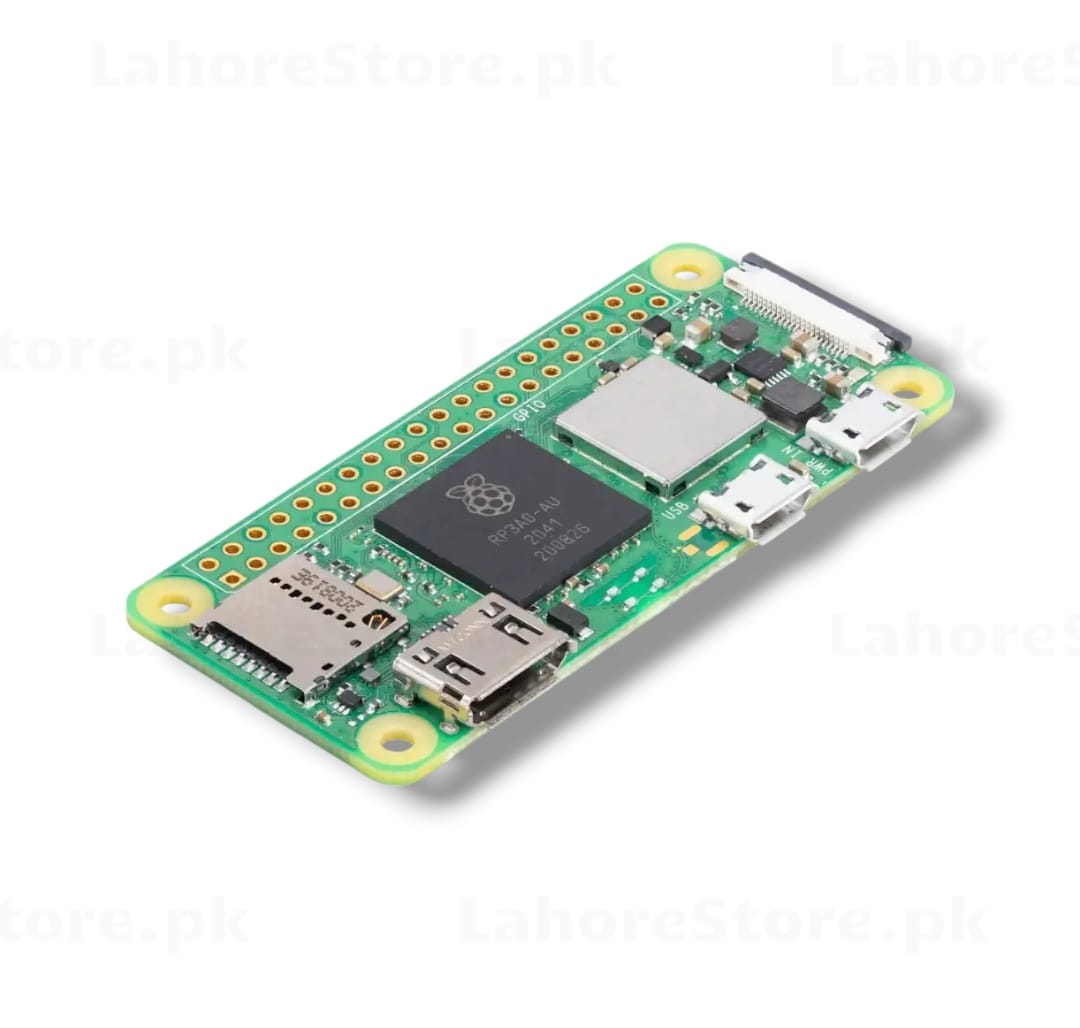

The Raspberry Pi Zero 2 W packs serious computing power into a tiny form factor. Built around the RP3A0 — a custom-designed system-in-package featuring a quad-core 64-bit ARM Cortex-A53 processor — it delivers up to 5× the performance of the original Pi Zero W, while retaining the same compact footprint. Perfect for wearables, robotics, IoT nodes, and portable Linux projects.

Key Features

• SoC: Raspberry Pi RP3A0 (Broadcom BCM2710A1 die)
• CPU: Quad-core 64-bit ARM Cortex-A53 @ 1GHz
• RAM: 512MB LPDDR2 SDRAM
• Wireless: 2.4GHz 802.11 b/g/n WiFi
• Bluetooth: 4.2 BLE
• Mini HDMI port for display output
• Micro USB OTG port (data + power)
• Micro USB power input
• MicroSD card slot
• CSI-2 camera connector (22-pin FPC)
• 40-pin GPIO header (unpopulated)
• HAT-compatible form factor

Specifications

• Processor: ARM Cortex-A53 Quad-Core @ 1GHz
• RAM: 512MB
• Storage: MicroSD
• Wireless: WiFi 802.11 b/g/n + Bluetooth 4.2
• Video: Mini HDMI (1080p30)
• USB: Micro USB OTG
• GPIO: 40-pin
• Camera: CSI-2 22-pin connector
• Dimensions: 65 × 30mm
• Power: 5V via Micro USB

Applications

• Wearable electronics and robotics
• Portable Linux computer
• IoT sensor hub with WiFi
• Retro gaming (RetroPie)
• Network tools (Pi-hole, VPN)
• Camera and vision projects
