RDM6300 125kHz RFID Reader Module with Antenna Coil

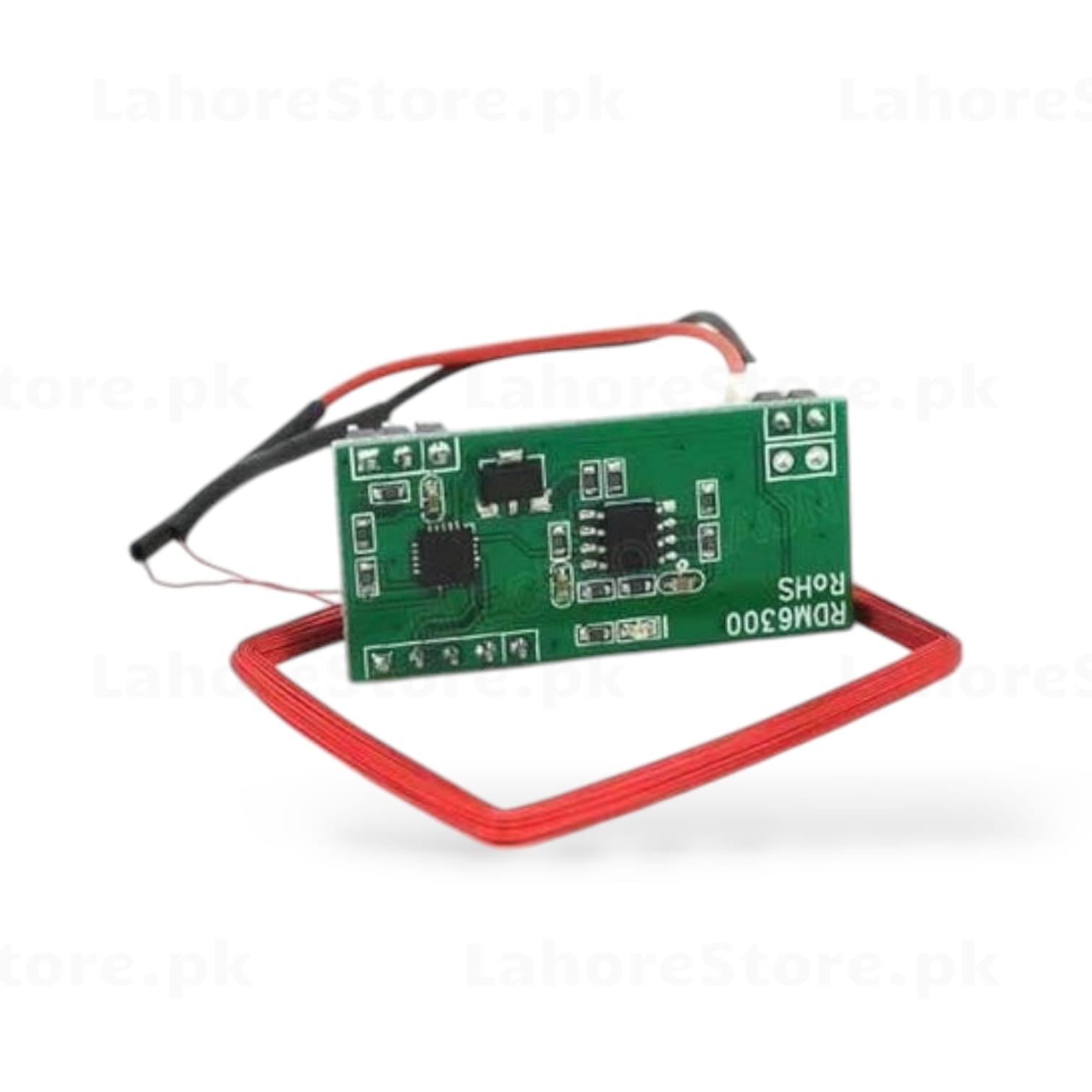

RDM6300 125kHz RFID Reader Module with External Antenna Coil

The RDM6300 is a compact 125kHz RFID reader module designed for reading EM4100-compatible RFID cards and tags. It comes with an external loop antenna coil and outputs the tag ID via a standard UART serial interface, making it straightforward to integrate with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontrollers.

Ideal for access control, attendance systems, and RFID-based identification projects, the RDM6300 is a reliable and low-cost solution for 125kHz RFID reading applications.

Key Specifications

• Model: RDM6300
• Operating Frequency: 125kHz (LF)
• Compatible Tags: EM4100, EM4102, and compatible 125kHz cards/tags
• Output Interface: UART (TTL serial, 9600 baud rate)
• Supply Voltage: 5V DC
• Current Consumption: Approx. 50mA
• Reading Distance: Up to 5cm (depending on tag and antenna)
• Output Data Format: 9600 bps, 8N1
• Antenna: External loop coil antenna (included)
• Module Size: 38.5mm x 19mm

Key Features

• 125kHz LF RFID reader with UART serial output
• External loop antenna coil for flexible placement
• Simple wiring: VCC, GND, TX, RX
• Compatible with EM4100/EM4102 cards, key fobs, and tags
• Easy integration with Arduino via SoftwareSerial or hardware UART
• RoHS compliant
• Compact PCB for embedded installations

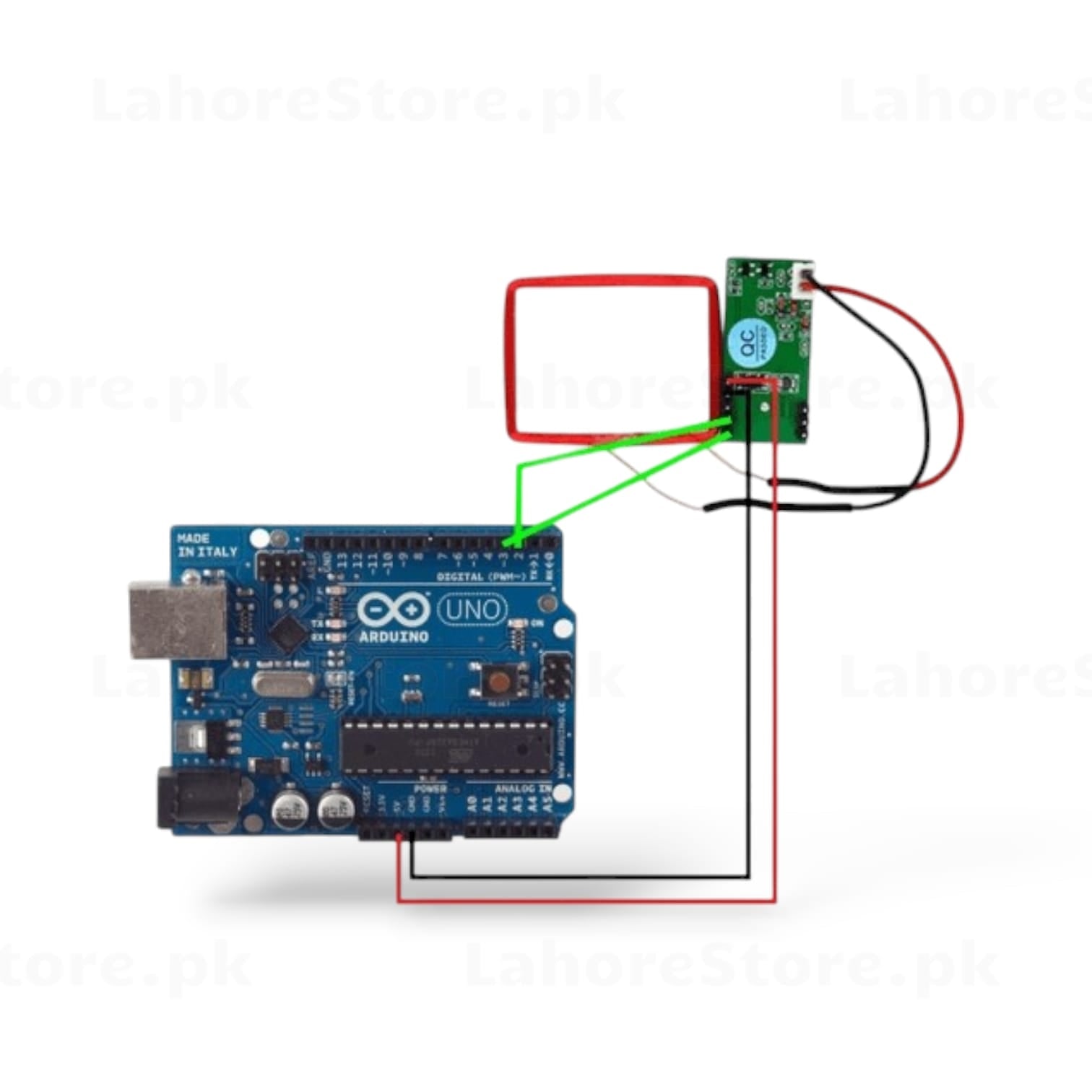

Wiring (Arduino UNO)

• VCC → 5V
• GND → GND
• TX → Arduino RX (D0 or SoftwareSerial pin)
• ANT1 / ANT2 → External antenna coil terminals

Applications

• Door access control systems
• Employee and student attendance systems
• RFID-based locker and cabinet locks
• Arduino RFID projects and prototyping
• Asset tracking and identification
• Library management systems

Package Contents

• 1x RDM6300 125kHz RFID Reader Module
• 1x External loop antenna coil
