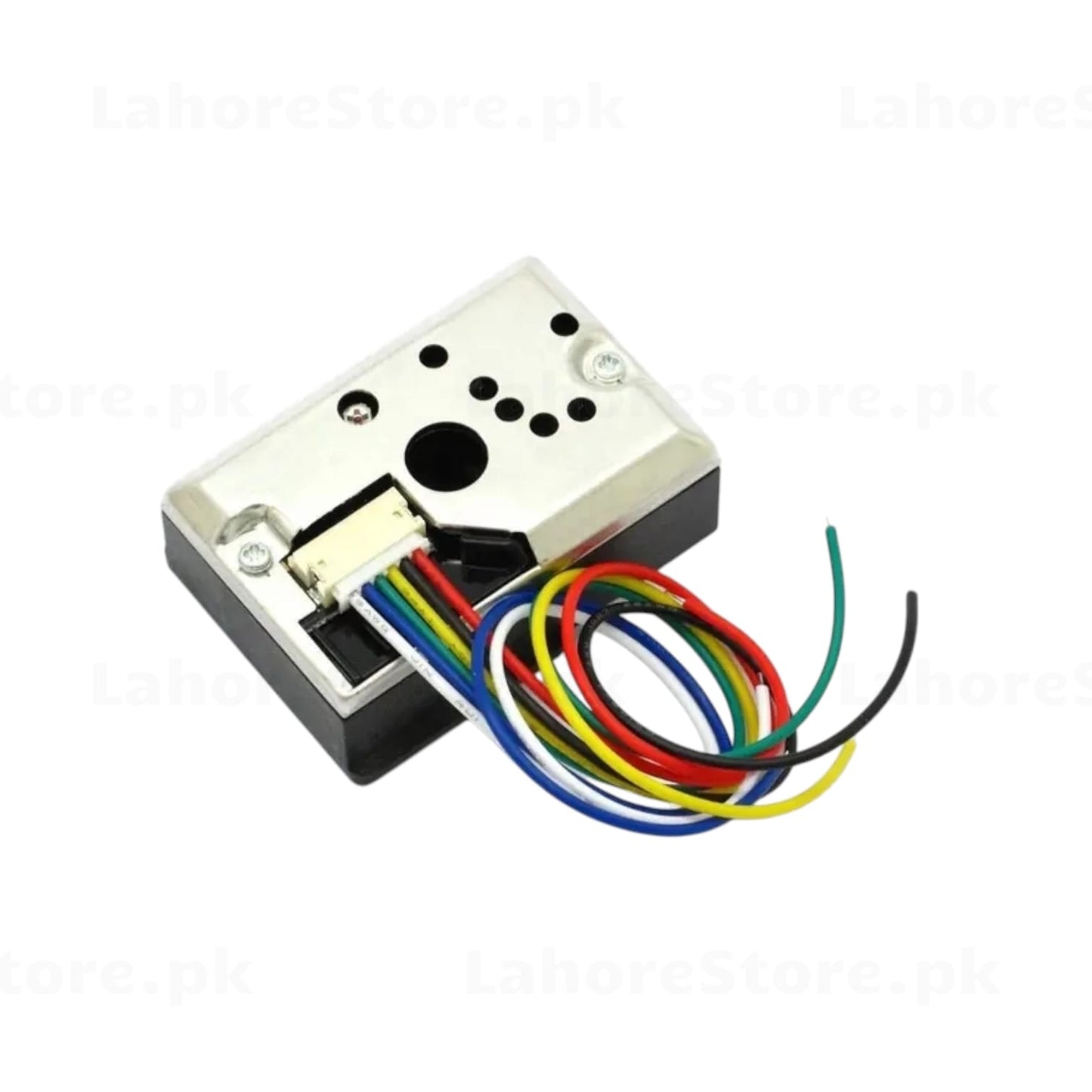

Sharp GP2Y1010AU0F Dust Particle Sensor - Air Quality PM2.5 Optical Sensor with Cable

Sharp GP2Y1010AU0F Dust Particle Sensor - Air Quality PM2.5 Optical Sensor with Cable

Measure fine dust, smoke, and airborne particulates with the Sharp GP2Y1010AU0F optical dust sensor. Using an infrared LED and phototransistor, this sensor produces an analog voltage output proportional to particle density - making it ideal for DIY air quality monitors, purifier control systems, and environmental sensing projects with Arduino or ESP32.

Key Features

• Detects fine dust and smoke particles as small as 0.8 microns
• Analog voltage output - proportional to particle concentration, easy to read with ADC
• Built-in IR LED and phototransistor - optical sensing, no moving parts
• 6-wire color-coded JST cable included - quick and reliable connection
• Low power consumption - suitable for battery-powered air quality monitors
• Compact metal-shielded housing - EMI resistant and durable
• Compatible with Arduino, ESP32, ESP8266 and all analog ADC microcontrollers

Specifications

• Model: Sharp GP2Y1010AU0F
• Supply Voltage: 5V DC (Vcc)
• Output Type: Analog voltage (0 - ~3.5V)
• Detection Target: Airborne dust, smoke, PM2.5 particles (≥0.8 μm)
• LED Pulse Cycle: 10ms (0.32ms pulse width)
• Current Consumption: ~20mA max
• Operating Temperature: -10 to +65 °C
• Cable: 6-wire JST connector (color-coded)
• Pins: V-LED, GND(LED), LED, GND(Vcc), Vo, Vcc

Perfect For

• DIY Air Quality Monitor and PM2.5 Meter
• Smart Air Purifier Automation Control
• Indoor Environmental Monitoring Systems
• Arduino / ESP32 Air Pollution Detection Projects
• Industrial Dust Level Warning Systems
• IoT Weather and Environment Sensing Nodes

Order now and build your own air quality monitor with one of the most trusted dust sensors available.
