Stepper Motor Driver A4988/ DRV8825

✅ Stepper Motor Drivers – A4988 vs DRV8825 Modules

The A4988 and DRV8825 are compact, reliable stepper motor driver modules designed for precise control of bipolar stepper motors. These drivers are ideal for CNC, 3D printing, robotics, and motion control systems. Each offers microstepping capability, current control, and thermal protection, making them essential tools in embedded motion projects.

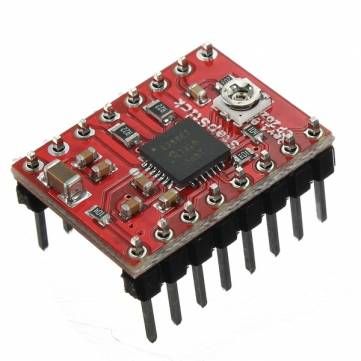

🔧 A4988 Stepper Motor Driver Module

✅ Driver Chip: Allegro A4988
⚙️ Microstepping: Full, 1/2, 1/4, 1/8, 1/16
🔋 Motor Voltage: 8V to 35V
⚡ Max Current: Up to 2A per coil (with heat sink)
🔧 Current Limiting: Adjustable via potentiometer
🧠 Logic Voltage: 3.3V or 5V compatible
🔥 Protections: Over-temp, under-voltage, crossover-current
📏 Ideal for: Medium-load stepper motors like NEMA17

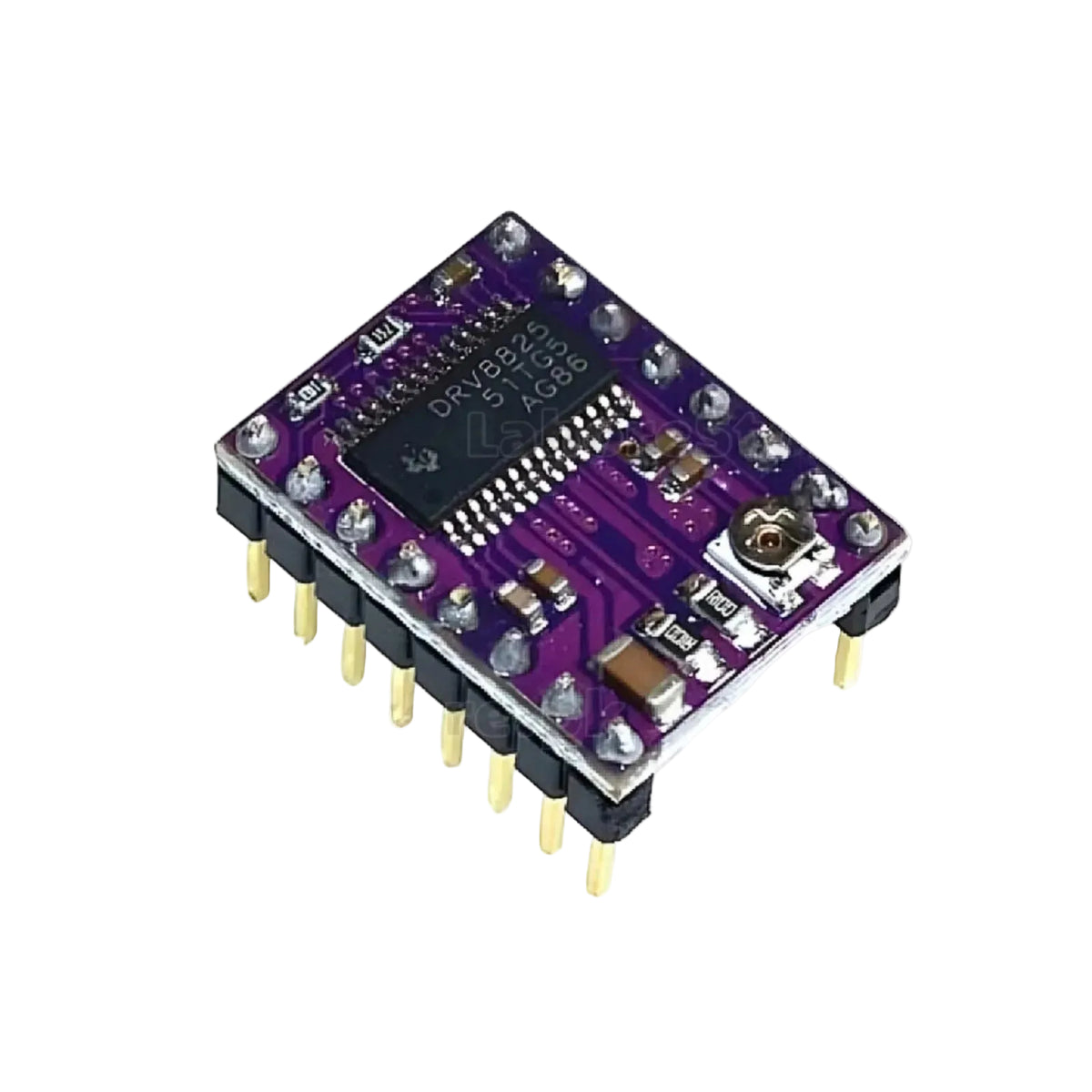

🔧 DRV8825 Stepper Motor Driver Module

✅ Driver Chip: Texas Instruments DRV8825
⚙️ Microstepping: Full, 1/2, 1/4, 1/8, 1/16, 1/32
🔋 Motor Voltage: 8.2V to 45V
⚡ Max Current: Up to 2.2A per coil (with heat sink)
🔧 Current Control: Via onboard potentiometer
🧠 Logic Voltage: 3.3V or 5V compatible
🔥 Protections: Over-current, over-temp, and under-voltage
📏 Ideal for: Higher torque motors or high-performance systems

📦 Package Includes

📦 1x A4988 or DRV8825 Module (based on selection)
🧊 1x Aluminum Heat Sink
🧰 Optional: Header pins (may be unsoldered)

🧠 Which One Should You Choose?

A4988: Affordable and great for general projects using NEMA17 motors

DRV8825: Higher current, finer microstepping, better for demanding applications

Both modules are pin-compatible and can be swapped easily in many controller setups (like RAMPS boards). Fully compatible with Arduino, GRBL, Marlin, and other firmware.
